Device window – CGLine+ Web-Controller
5 Device window – CGLine+ Web-Controller

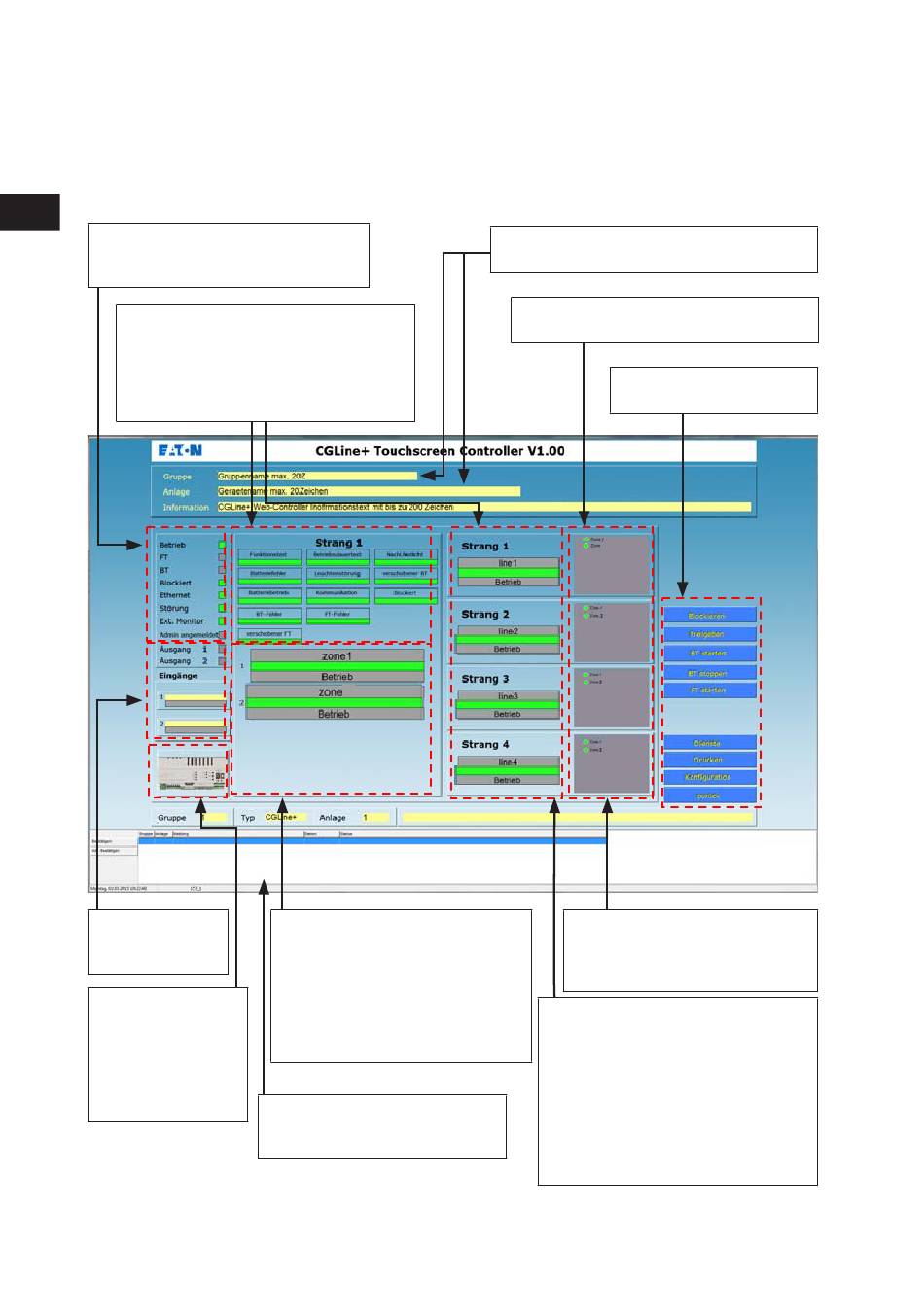

Structure of the device window
GB
Direct status messages for the device
with coloured status display:
green = OK, red = malfunction
Display of the active strand with the
total status of the luminaires in the
strand.
By clicking on the relevant strand from 1
to 4, you can change the display for the
strand to the status.
Status display for
the relay outputs
and digital inputs
Click left mouse
button=
Information window
Click right mouse
button=
Open web server
via web browser
8 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com
2
Display of active zones 2, 4, 5 or 8
for 4-strand operations in strand.
By clicking on the zone you access
the zone image with the luminaires
installed.
The number of active zones in the
strand can be set in the menu item
"Configuration" .
Alarm list with acknowledgement
option identical with main group
Group name and installation name (up to 20
digits each)
Field for additional information (up to 100
digits)
Buttons for Commandos or
configuration settings
2
By clicking on the zone for a
strand you access the zone image
with the installed luminaires
directly
Installed strands, max. 4 units with
max. 100 CGLine luminaires each,
with display of current status:
Green = luminaires in strand OK
•
Yellow = min. 1 luminaire being
•
tested
Red = min. 1 luminaire in strand
•
broken
Grey field means "Strand not
•
installed" .
