Function buttons

Functions of the buttons for Commando or configuration settings
a) Block
b) Release
c) Start operating
time test
d) Stop operating time
test
e) Start function test
f) Services
g) Print
h) Configuration
i) Back

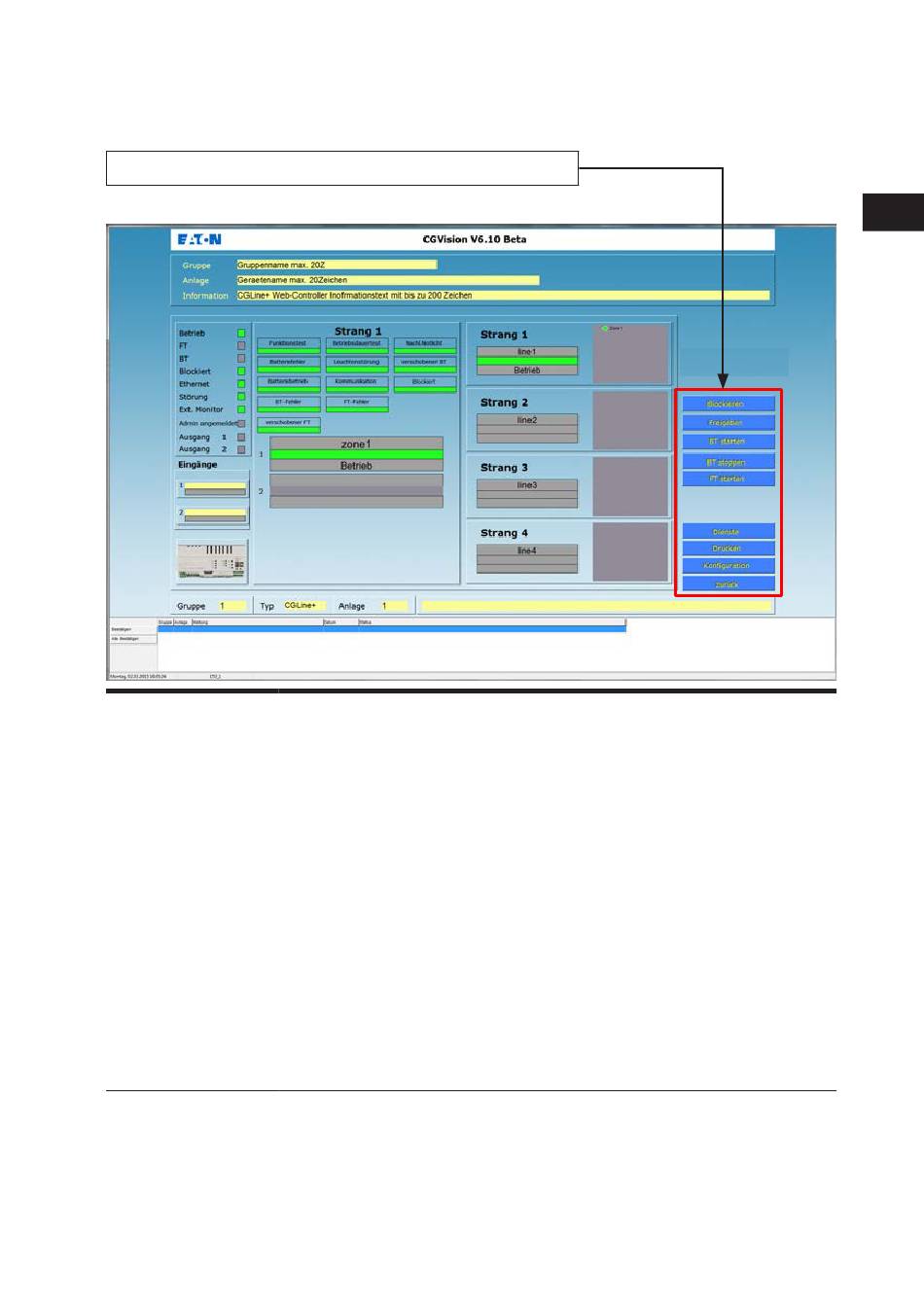

Device window – CGLine+ Web-Controller
This opens a menu that gives the option of blocking all the luminaires or the lumi-
naires in one strand.
This opens a menu that gives the option of releasing all the luminaires or the lumi-
naires in one strand.
This opens a menu that gives the option of starting an operating time test for all the
luminaires or the luminaires in one strand, or the luminaires in a test group.
This opens a menu that gives the option of stopping an operating time test for all
the luminaires or the luminaires in one strand, or the luminaires in a test group.
This opens a menu that gives the option of starting a function test for all the lumi-
naires or the luminaires in one strand, or the luminaires in a test group.
Different services for the inspection log book and the configuration, such as save or
load the group configuration.
A screenshot of the current image is printed.
Configuration settings for all the basic settings for the CGLine+ Web-Controller, for
example test groups, etc.
Back to main group image.
