Structure of device window / zone window / luminaire window assembly

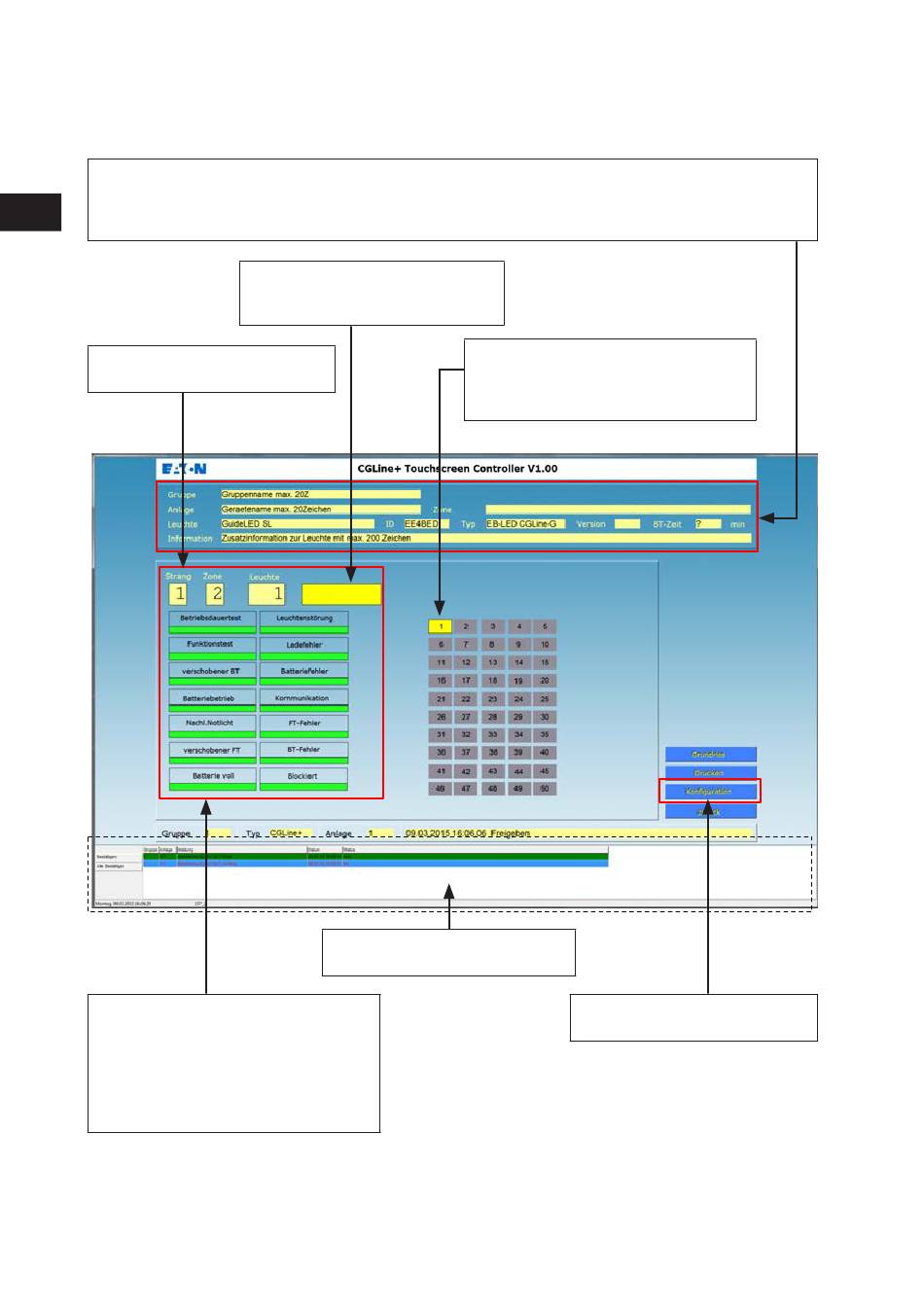

Structure of the luminaire window
Information field with:
Group name / Controller name / zone name / luminaire name / additional information on the luminaire,
GB
as well as luminaire information on:
Hex ID / luminaire type / software version and last time recorded in the operating time test
Display of luminaire information:
Current strand / zone / luminaire
Expanded status displays for the lumi-
naires, e.g. luminaire malfunction:
Green = OK
•
Red = malfunction
•
By clicking on the left mouse button an
error list appears with all the luminaires
affected with the same fault.
20 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com
Switching state of luminaires:
Grey = off (continuous light OFF)
•
Yellow = on (continuous light ON)
•
Alarm list with acknowledgement
option
Installed luminaires with status display:
Grey = OFF
•
Yellow = ON
•
Red = damaged
•
The luminaire texts can be edited
via the configuration.
