Eaton CGLine+ Touchscreen Controller Manual page 4

PIN authentication for operation
All connected self-contained luminaires can be blocked simultaneously on the
right side.
In the lower blue control area, it is possible to launch a function test of all lumi-
GB
naires, to access the logbook and to make further settings.
Tap on the red Power button to close the software application if necessary.
2
PIN authentication for operation

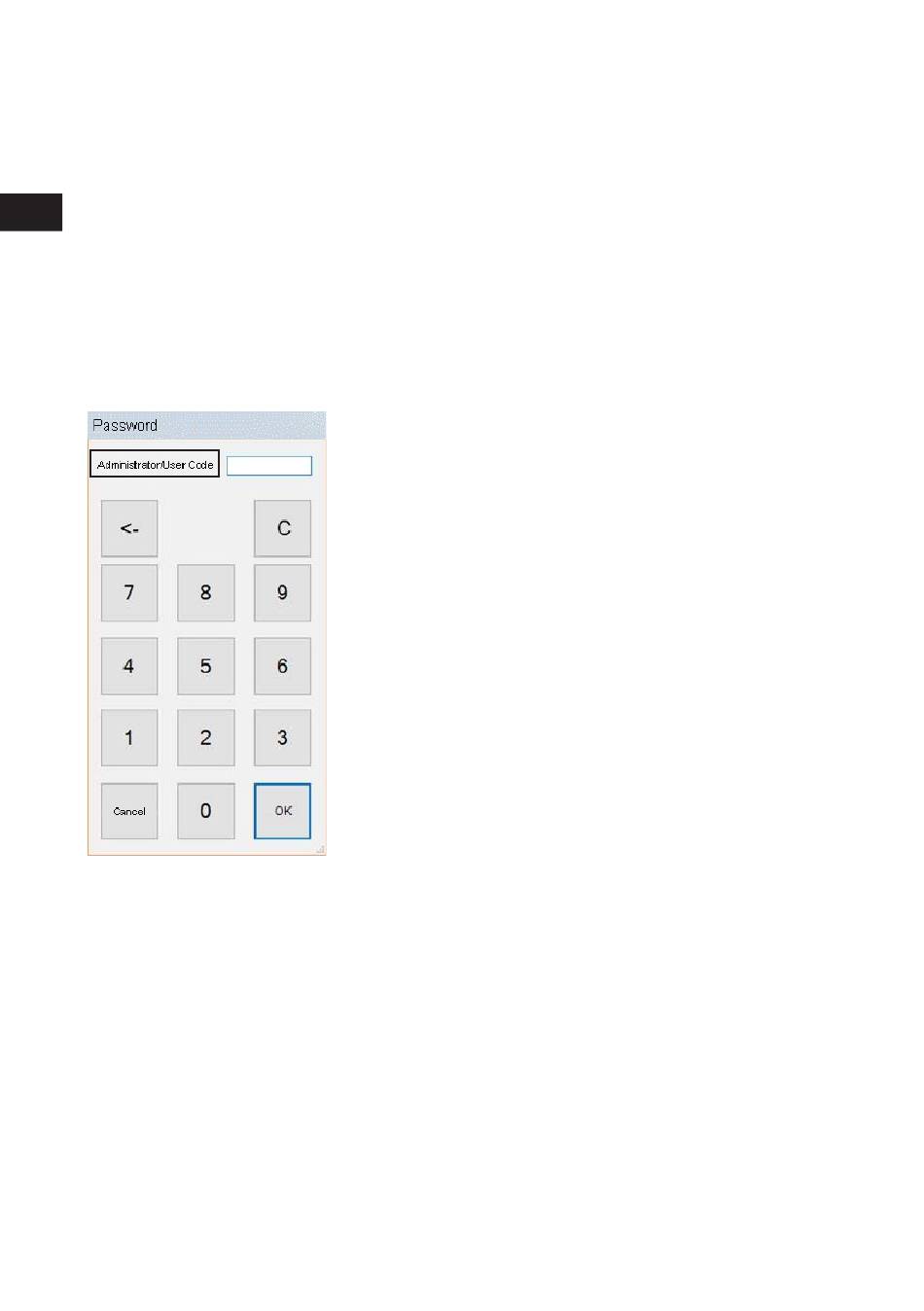

For configuration control operations, e.g. to block luminaires, a prompt window is
shown with a virtual numeric keypad to type in a PIN number:
4 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com
The Administrator PIN and User PIN are set ex
works. The Administrator has full access rights. The
User only has limited rights, e.g. to start a function
test. The rights required for performing an operation
are shown in the PIN prompt window.
Administrator
9876 followed by OK
User
0000 followed by OK
N ote: The PIN numbers of the
Administrator and User can be changed in the set-
tings. See next page.
