Eaton CGLine+ Touchscreen Controller Manual page 22

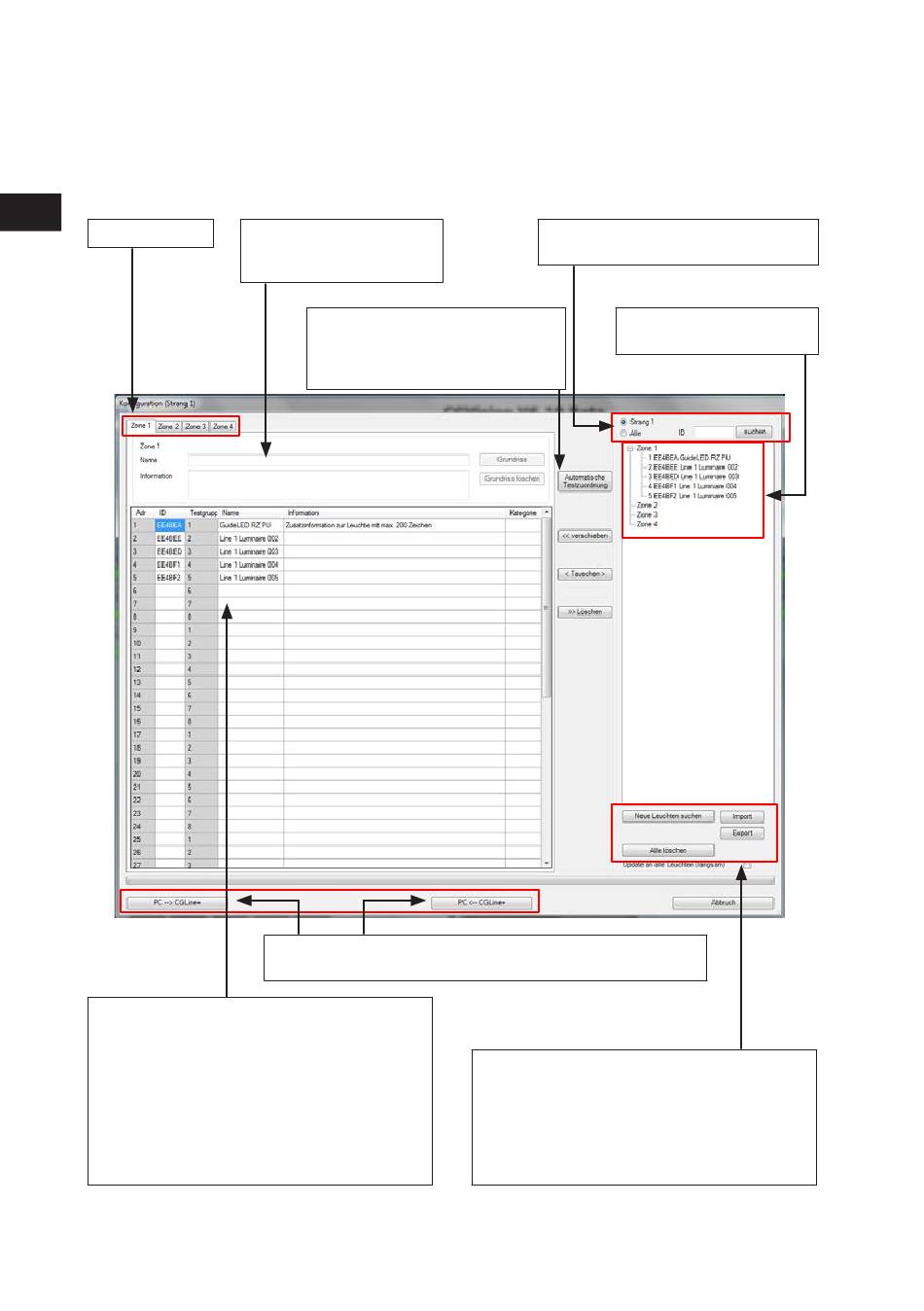

Luminaire configuration in the strand
A split window is shown. Luminaires listed on the right-hand side can be shifted
to the required position on the left-hand side, or addresses can be swapped
between luminaires. Names and information can be added to luminaires properly
ordered on the left-hand side.
GB
Zone selection
List of luminaires of a zone in table format,
which can be copied and pasted from an Excel
table with the following columns:
Logical short address
•
Hex ID of luminaire (fixed)
•
Number of test group for automatic OT/FT
•
Name of luminaire (max. 20 digits)
•
Additional information about the luminaire
•
(max. 200 digits)
Category (e.g. emergency sign)
•
22 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com
Name (up to 20 digits) and
additional information (up
to 200 digits) of the zone
In automatic test allocation, lumi-
naires are assigned automatically
in the order according to the pre-
set test groups 1 to 8.
Send the configuration from the PC to the Controller, or load
it from the Controller to the PC.
Search field to search for specific Hex
addresses in the installation
Selection field of the lumi-
naires to be modified
Existing allocations are preserved in the Search
for new luminaires menu, and new luminaires
are added logically to the strand list.
To search again for all luminaires, select the
"Delete all" menu first. Files saved with the
Export menu can be imported again using
Import.
