Structure of device window / zone window / luminaire window assembly

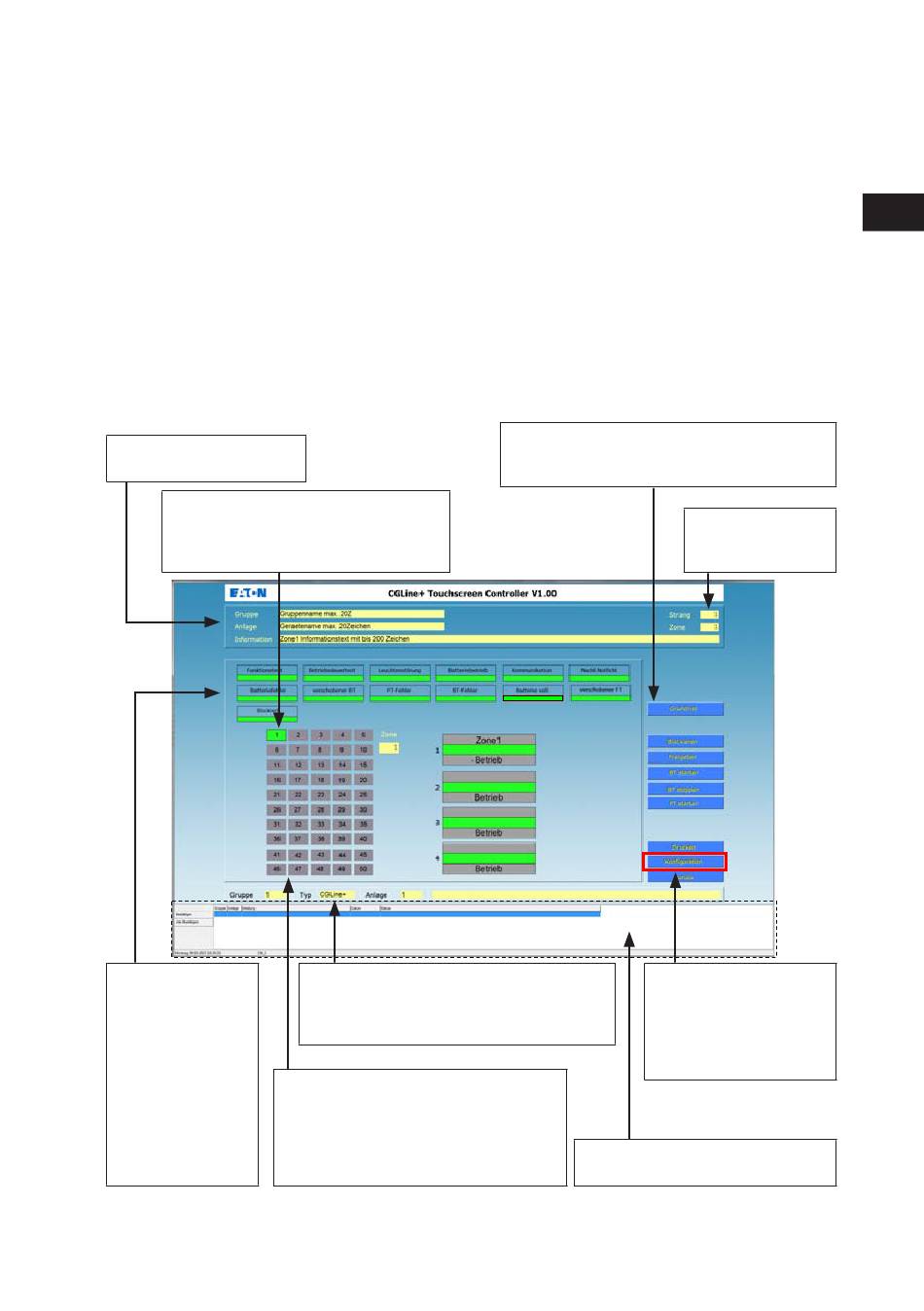

Structure of the zone window
The status of all the luminaires in the zone is shown in the zone window.
Depending on the selection of the number of zones the number of luminaires
within the zones changes accordingly!
In the case of 4-strand operations the following zones/luminaires are possible:
2 zones with 100 luminaires each, 4 zones with 50 luminaires each, 5 zones with
40 luminaires each and 8 zones with 25 luminaires each.
In the case of 2-strand operations the following zones/luminaires are possible:
4 zones with 100 luminaires each, 8 zones with 50 luminaires each, 10 zones with
40 luminaires each and 16 zones with 25 luminaires each.
The example illustrates the following: 4-strand operations with 4 zones and 50
luminaires each.
Text fields for information,
e.g. device, location.
By clicking on an installed luminaire
in the zone image it is possible to
access the luminaire image.
See next page.
Status display of
the zone,
i.e. with min. dis-
ruption to a
luminaire the field
changes to red =
malfunction
By clicking on the
relevant message
an expanded dis-
play appears.
See point x.x.x
Display of:
Device group in CGVision (1 to 15)
•
Device type, e.g. CGLine+
•
Device (installation) in the group (1 to 32)
•
Installed luminaires with status display:
Green = luminaire OK – permanent
•
lighting OFF
Yellow = luminaire OK – permanent
•
lighting ON
Red = luminaire broken
•
Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com
Only operate luminaires in this strand. The
system asks you whether the whole strand or
individual zones should be steered.
Via Configuration it is
possible to access the
luminaire configura-
tions in the strand.
See point 13 Luminaire
configuration.
Alarm list for the last 7 events with
acknowledgement option
Strand display:
Current strand
•
Current zone
•
