Further functions and display operations in the base window
GB
4
Further functions and display operations in the base window
6 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

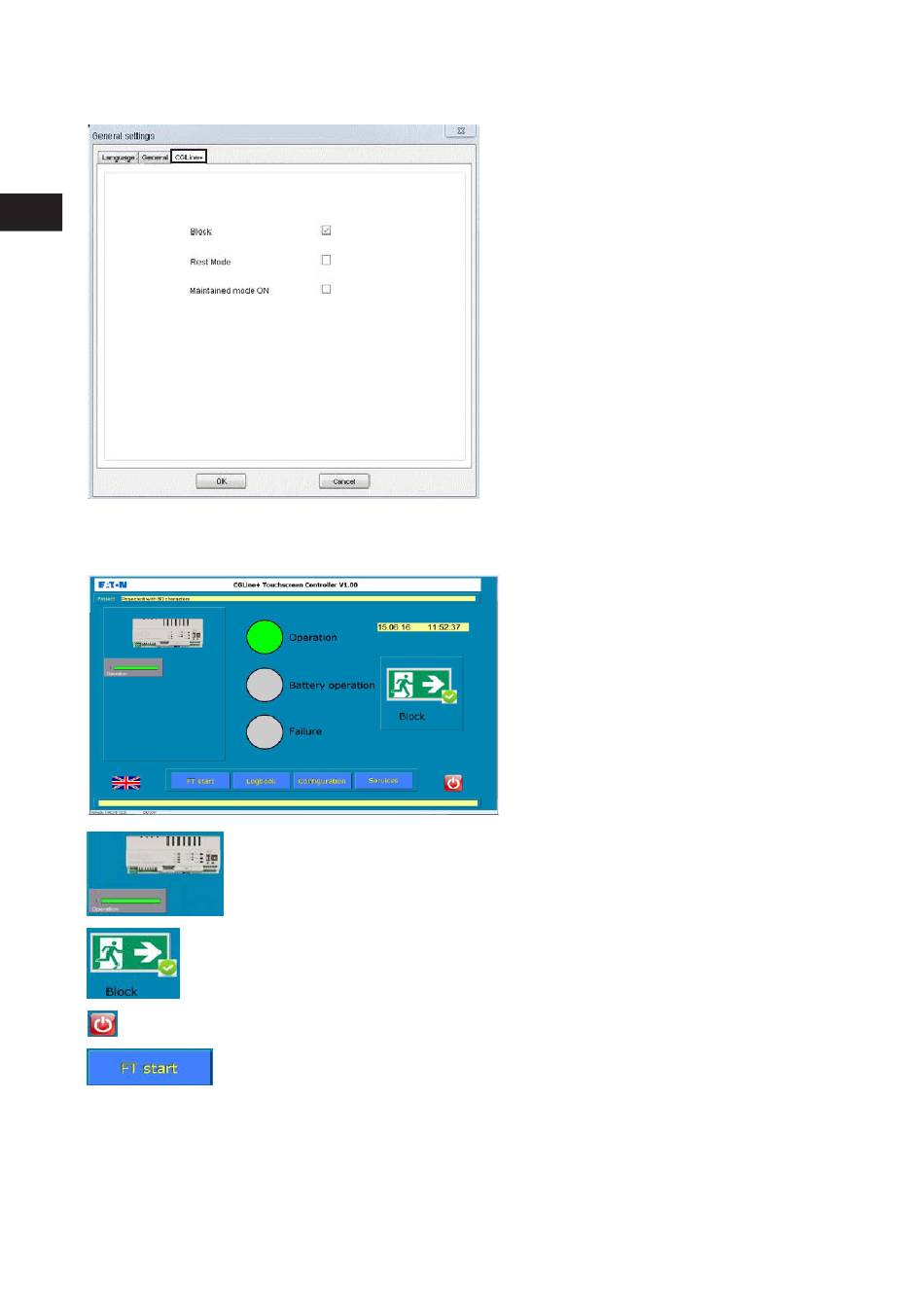

Status display of the Controller
Click on the button to open the CGLine+ Web-Controller device window. See next
page.
The Block button is used to block all connected luminaires (PIN authentication)
to prevent a complete discharge, e.g. in case of a power failure during operation
downtimes.
Close the programme (PIN authentication).
Start FT
Click on the button to start a function test of all connected self-contained lumi-
naires.
(User/Admin PIN authentication)
CGLine+:
Select whether the blocking button
on the base window performs the
"Block" or "Rest mode" (for France
only) operation.
Maintained mode ON - the
CGLine+ luminaires can be turned
on/off if the L terminal on the
luminaire is bridged with the L line.
