Device window – CGLine+ Web-Controller

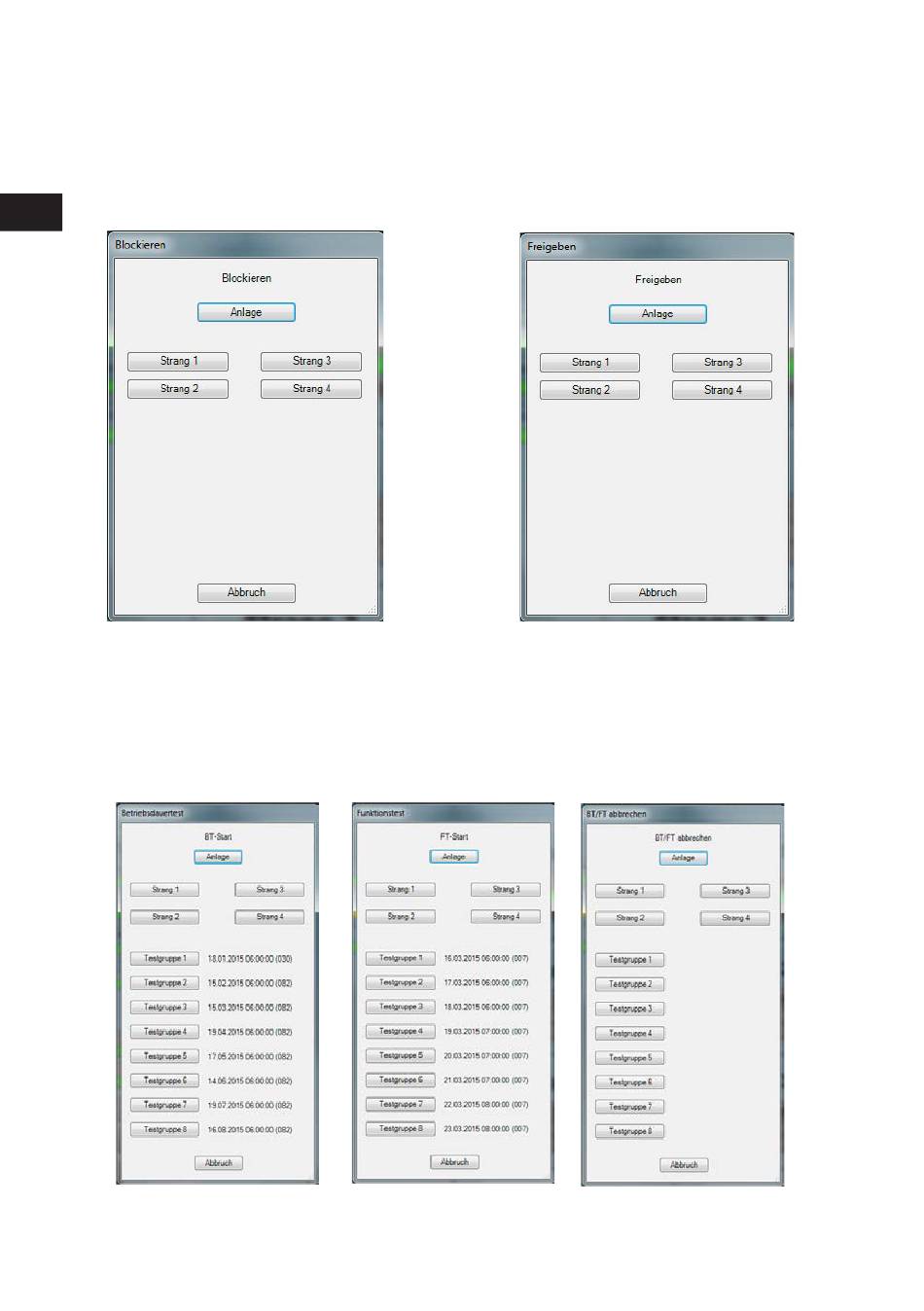

For a) - b)
By clicking on Block/Release a menu opens up for the selection of all luminaires in
the controller (= installation), or to block the luminaires in the individual strands 1
to 4.
GB
For c) - e)
By clicking on OT start, FT start or OT/FT stop a menu opens up for the selection
of all the luminaires in the controller (= installation), to start/stop an OT/FT for the
luminaires in the individual strands 1 to 4, or for the luminaires of an individual
test group 1 to 8 (depending on how many test groups were previously config-
ured). To the right of the buttons for the test groups the configured times for the
automatic OT / FT can be seen.
