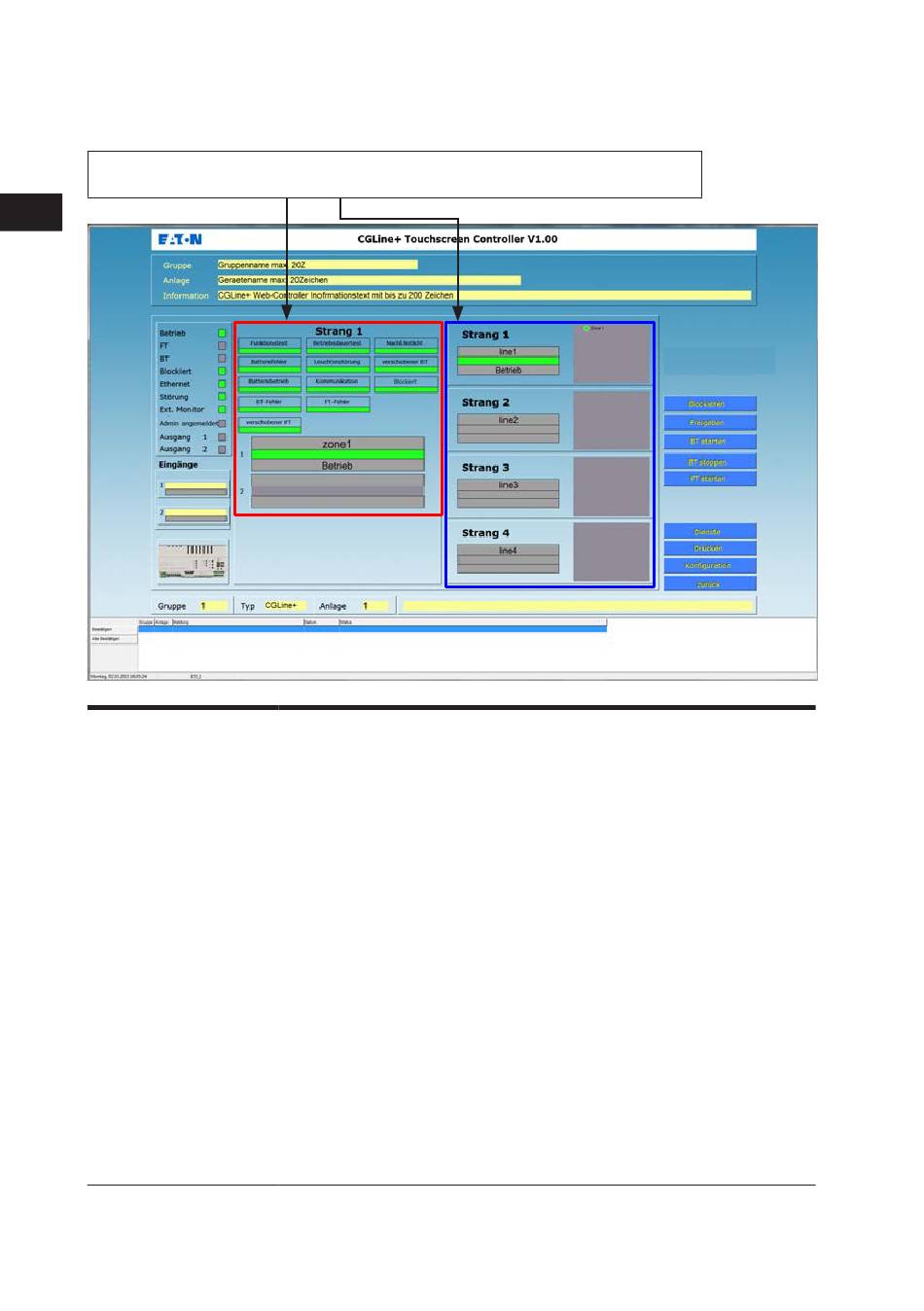

Device window – CGLine+ Web-Controller
Status display of the device
Status displays for the strand selected (red). Strand selection is made by clicking on
the strand number in the right strand status (blue).
GB
Selected strand: All status messages in this window apply to strand 1.
Function test
Operating time test
Delayed emergency
lighting
Battery fault
Luminaire malfunction
Deferred operating time test Red = when at least one luminaire has a deferred operating time test, because less than 24
Battery operation
Communication
Blocked
Error in operating time test
Function test error
Deferred function test
Total zone status
10 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com
Yellow = when at least one luminaire in the strand is currently undergoing a function test
Yellow = when at least one luminaire is currently undergoing an operating time test
Yellow = when at least one luminaire is still in delayed emergency lighting following a power
cut
Red = when at least one luminaire has a battery fault
Red = when at least one luminaire has an LED fault
hours earlier there was a partial discharge
Red = when at least one luminaire is battery operated
Red = when at least one luminaire has a communication disruption with the Controller
Red = when at least one luminaire in the strand is blocked
Red = when at least one luminaire has not passed the operating time test (battery test)
Red = when at least one luminaire has not passed the function test (luminaire test)
Red = when at least one luminaire has deferred the function test, because a partial discharge
took place earlier
The configured zones and their total status are shown in the lower part of the window. In the
case of 4-strand operations this can be 2, 4, 5 or 8 zones and in the case of 2-strand opera-
tions 4, 8, 10 or 16 zones.
In CGLine compatibility mode only 1 zone is possible for each! By clicking on the correspond-
ing zone you access the zone image with the luminaires installed.
