Step 5 - Encoder phasing
ADP200 drives have a command to start automatic phasing of the resolver.
Phasing must be repeated whenever:
- the drive is replaced (alternatively, download parameters taken from previous drive)
- the motor is replaced
- the encoder is replaced
Note ! For more information see parameters 17.23 PAR 2190 Autophase rotation and 17.24 PAR 2192 Autophase still
on "Functions description and parameters list" manual (ADP200 Vector inverter for Hybrid injection molding
machines). See section A.3.2 Phasing in the Appendix for further information (ADP200 QS manual).

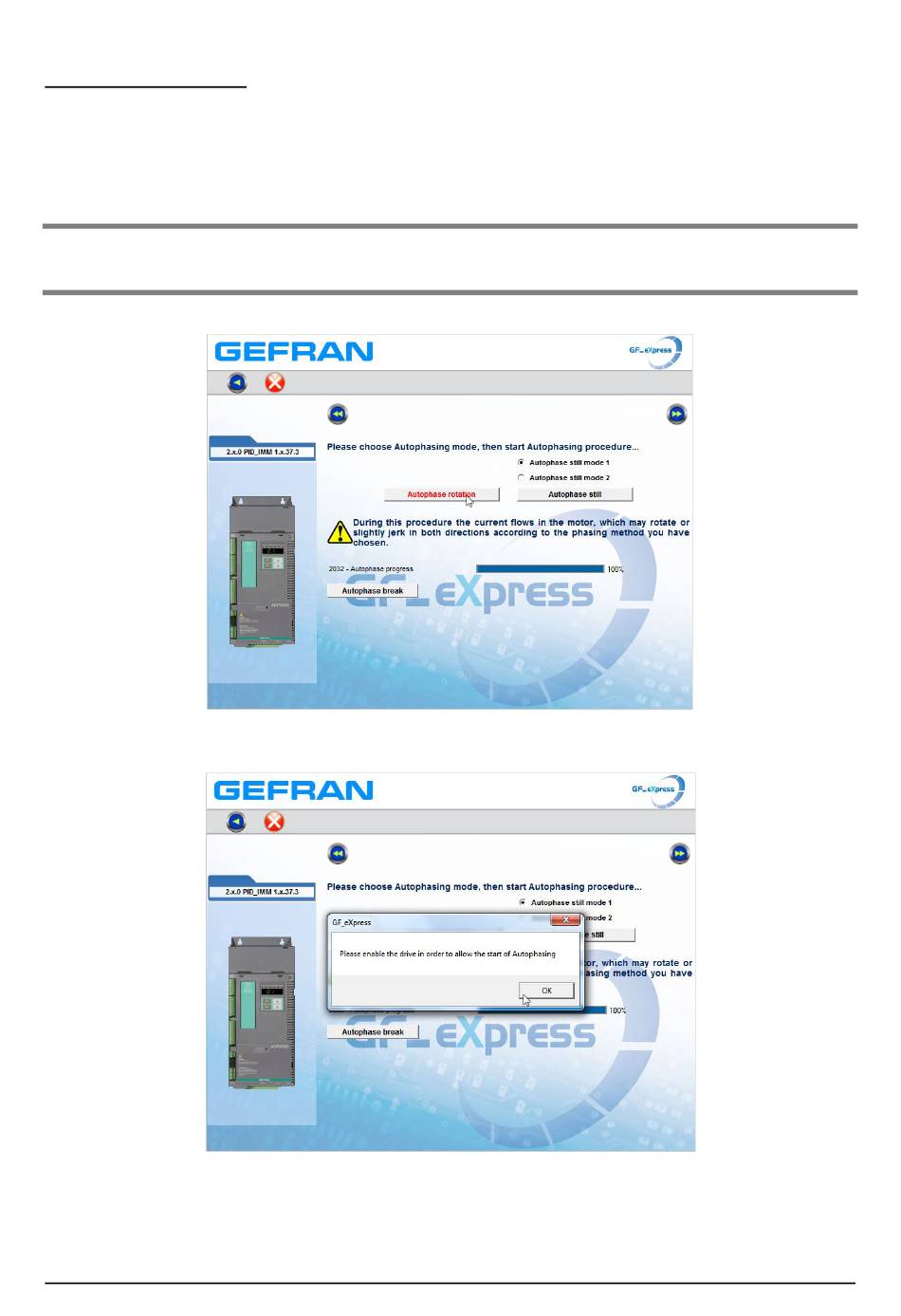

If you press the "Autophase rotation" or "Autophase still" button, the following message appears:
Bring the Enable input to 24V, then press the "Autophase rotation" or "Autophase still" button. The autophase
sequence starts. The percentage of progress is shown on the "autophase progress" bar.
