RADIUS Log Light
....
Installation & operation manual

Advertisement

Table of Contents

   Related Manuals for gefran RADIUS

   Summary of Contents for gefran RADIUS

  • Page 1 Data logger for plant monitoring RADIUS Log Light ..Installation & operation manual...
  • Page 2 Gefran S.p.A has the right to modify products, data and dimensions without notice. The data can only be used for the product description and they can not be understood as legally stated properties.
  • Page 3: Table Of Contents

    Contents 1. Introduction ............................5 Introduction ..............................5 2. Installation .............................6 Simple chart of RADIUS Log Light ........................6 Wire connection .............................7 LED indicator ..............................7 Accessories ..............................8 3. Button operation and menu interface ....................9 Check SD card and scan Bluetooth device ....................9 Main Status interface ...........................10 Set Table interface ............................11 Error Display interface ..........................13...
  • Page 4 Radius Log Light...
  • Page 5: Introduction

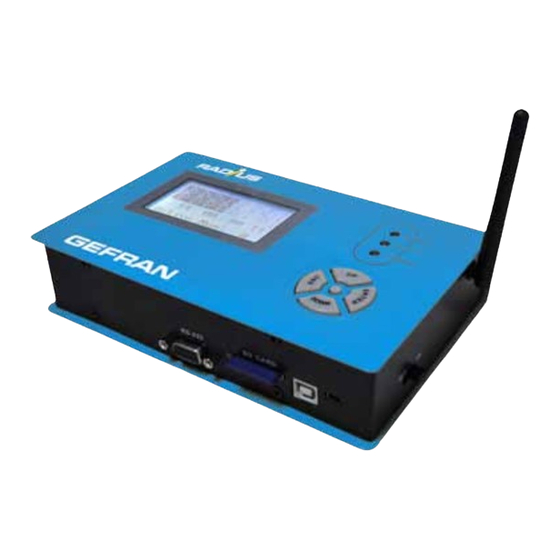

    1.1 Introduction RADIUS Log Light is a newly research & design inverter monitoring product of Gefran. It can collect and analyse photovoltaic station inverter running data via Bluetooth connection, and display monitoring data on LCD screen, user can browse data on computer as well. RADIUS Log Light can monitor maximum 4 inverters simultaneously.
  • Page 6: Installation

    Installation 2.1 Simple chart of RADIUS Log Light Fig 2.1 Simple chart of RADIUS Log Light The following table is components explanation: Number Name Explanation RS232 For firmware update SD CARD SD card socket MINI USB Power supply or battery charge by MINI USB (cable includ-...
  • Page 7: Wire Connection

    Connect power adapter to public gird power outlet Turn on power switch of RADIUS Log Light. 2.3 LED indicator There are 3 LED indicators on the right of LCD screen, you can get RADIUS Log Light running status by check- ing up the 3 LED lights. LED lights Function...
  • Page 8: Accessories

    2.4 Accessories Accessories (as standard) include power adapter, USB wire, SD card. 1) Power adapter: 2) USB wire: 3) SD card: Radius Log Light...
  • Page 9: Button Operation And Menu Interface

    RADIUS Log Light first display ”Gefran” logo when powered on. About 10 seconds later it come to Check SD card status, in check SD card status RADIUS Log Light start to check whether SD card existence, the process last for 30 to 120 seconds dur to actual situation.
  • Page 10: Main Status Interface

    Press “ESC” in Main Status interface can ENTER Main Message interface. “Active Num: x” stand for monitoring number, “ALL PWR: xx W” stand for inverters’ total power, “ALL ENG: xx KWH” stand for total energy produced by inverters. Radius Log Light...
  • Page 11: Set Table Interface

    There are 4 optional items in “Set Time” interface. “01 Set Time” is for set date and time, “02 Set USB” , “03 Reset Comm”, “04 Set BT Code”. Press “UP” or “DOWN” button to select item, press “ENTER” come to corresponding item. Suppose you select from up to down and operate one by one. Radius Log Light...
  • Page 12 DOWN to decrease the number. The Bluetooth module number must be set first, or there might be monitoring data lost. Press ENTER to reset RADIUS Log Light. Then press ESC to exit, and RADIUS Log Light will restart and connect to inverters.
  • Page 13: Error Display Interface

    10 seconds. Error:100 Error:122 Auto Test Failed …… Fig 3.6 Error message display After inverter error occurs, RADIUS Log Light display error code in screen. Meanings of error codes are shown in the following table. Fault code Inverter display Meanings 0~22...
  • Page 14: Radius Log Light Operation Diagram

    Light Log card RS232 Fig 4.1 RADIUS Log Light operation diagram RADIUS Log Light monitor inverters via Bluetooth connection. It can monitor maximum 4 inverters simultaneity. The maximum distance between RADIUS Log Light and inverter is 100 meters. Radius Log Light...
  • Page 15: Introduction To Bluetooth Module Setting

    Serial port number of computer Flow Control: Select None Device Name: Bluetooth name display on RADIUS Log Light Baud rate: Default baud rate is 9600 baud. Class of Device: The communication pair of Bluetooth must have a same class code. If not, set master device to ox000000, then slave device can set to any you like.
  • Page 16: Wire Connection

    5) Then tick encryption check box and input password. 6) Click “Set” to apply, and wait for setting finish. 7) Click “Query” to check the setting result. 8) Press module mode button again to switch module to communication mode. Fig 5.3 Set Bluetooth encryption password Radius Log Light...
  • Page 17: Q&a

    (the 2 indicator lights all blink). 3. If problem still exist, entry “Reset COMM” interface and reset RADIUS Log Light module. Why RADIUS Log Light can’t write data to SD card? 1.
