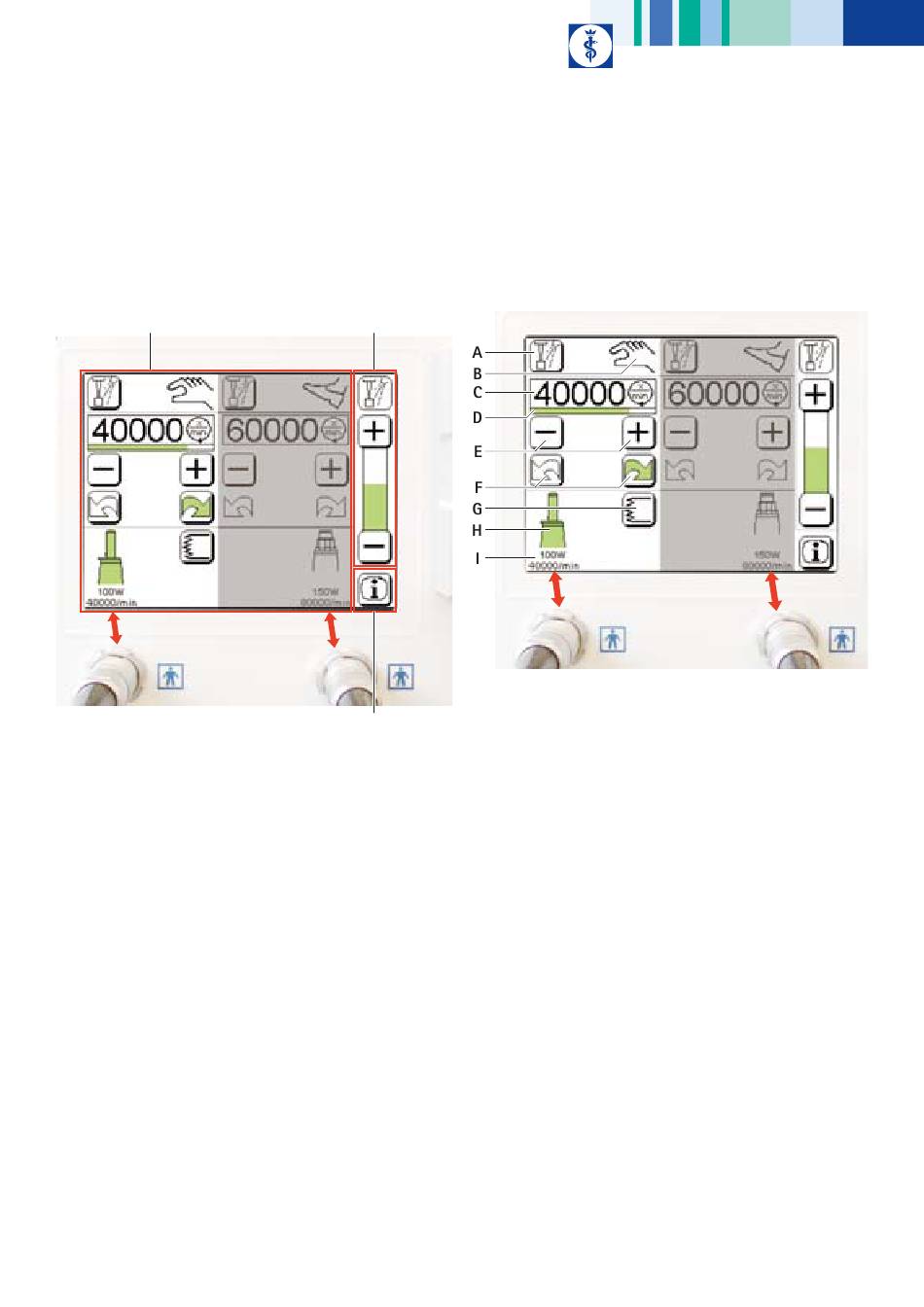

2.4.3 Control fields on the display

A
Fig. 1
Legend
A Motor control field(s)
B Pump control field
C Instruction menu
The display is divided into three different control fields, which are
described in the following chapters.

2.4.4 Motor control fields

B
Fig. 2
C
Legend
A Status display and control key for releasing (symbol highlighted by
green background)/locking the pump
B Activation mode indicator: hand control or foot control
C Present motor speed range upper limit setting
D Qualitative display of the actual motor speed
E Control keys for increasing or reducing the motor speed range upper
limit
F Motor direction indicator
G Operating mode selected for the connected motor type, e.g. saw
program for motors GD678 and GD679
H Connected motor type
I Maximum selectable motor speed range upper limit for the connected
motor type or with the selected operating mode, respectively
Each motor connected to control unit 1 has a motor control field assigned
to it.
Two motor control fields are opened in display 2 only if two motors 32 are
actually connected to control unit 1.
Only one motor control field will be opened if only one motor is connected.
The control fields are visually identified as belonging to the respective
motor connection sockets 5.
