2.3

ASSEMBLY GROUP SEAT

2.3.1 Adjusting the tilting direction

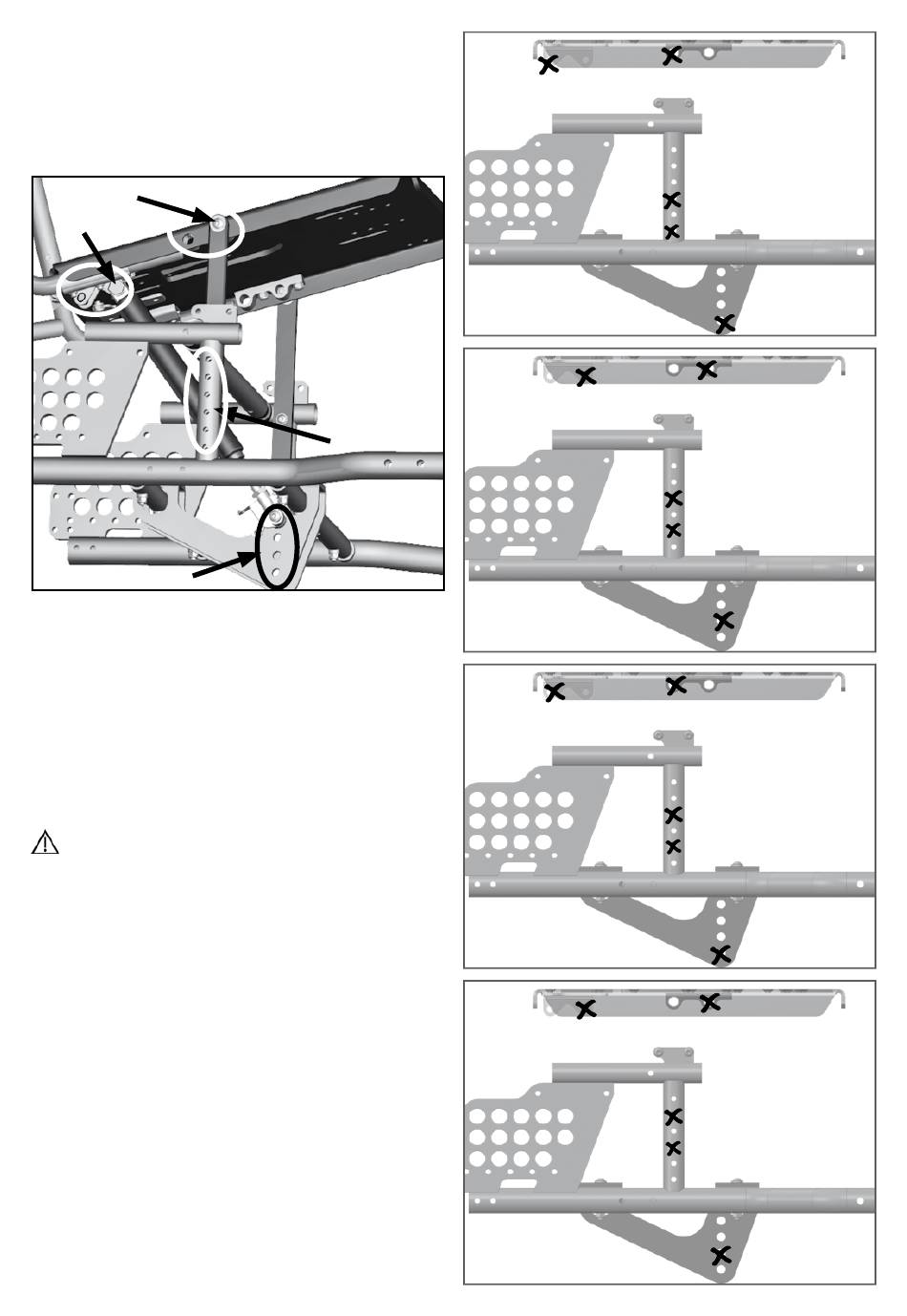

(1) The tilting direction is determined by the position of the
gas spring at the bottom of the carrier (A) and on top on the
holders under the seat board (B) as well as by the horizontal
(C) and vertical (D) position of the seat.
(1)
(C)
(B)
(A)
We mount standardly as follows:
For tilting from -5° to +35°:
(2) with frame size 1 and 2,
•
• (3) with frame size 3.
For tilting from +2,5° to +40°:
• (4) with frame size 1 and 2,
• (5) with frame size 3.
ATTENTION
AFTER EVERY CHANGE MADE ON THE SEAT AND/OR THE
TILTING, THE TILT BEHAVIOR OF THE LOOP MUST BE NEW-
LY TESTED AND PRACTICED WITH A PASSENGER AND THE
HELP OF AN EXPERIENCED AND STRONG PERSON.
(2)
(3)
(D)
(4)
(5)
