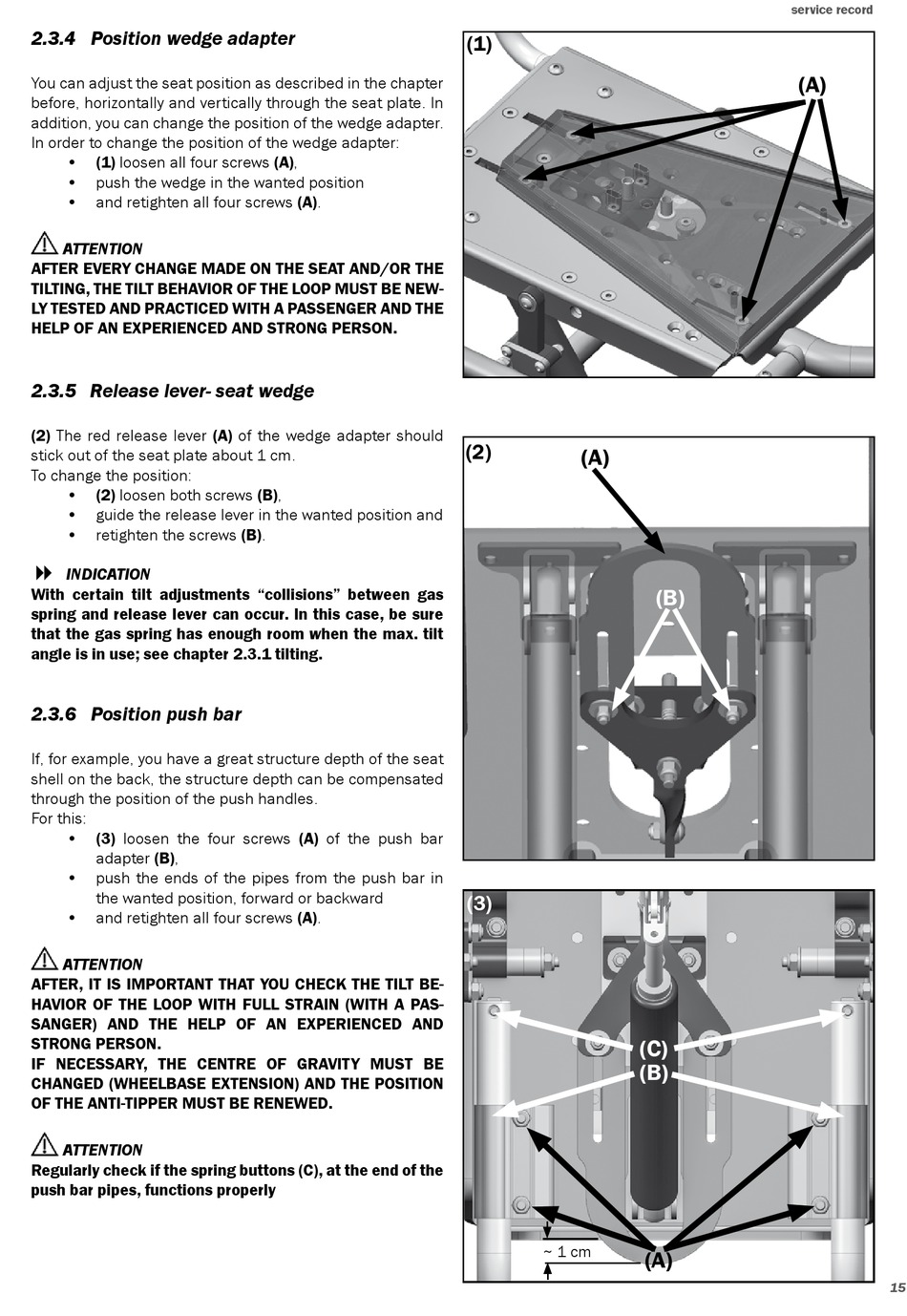

2.3.4 Position wedge adapter

You can adjust the seat position as described in the chapter
before, horizontally and vertically through the seat plate. In
addition, you can change the position of the wedge adapter.
In order to change the position of the wedge adapter:
• (1) loosen all four screws (A),
• push the wedge in the wanted position
• and retighten all four screws (A).
ATTENTION
AFTER EVERY CHANGE MADE ON THE SEAT AND/OR THE
TILTING, THE TILT BEHAVIOR OF THE LOOP MUST BE NEW-
LY TESTED AND PRACTICED WITH A PASSENGER AND THE
HELP OF AN EXPERIENCED AND STRONG PERSON.
2.3.5 Release lever- seat wedge
(2) The red release lever (A) of the wedge adapter should
stick out of the seat plate about 1 cm.
To change the position:
• (2) loosen both screws (B),
• guide the release lever in the wanted position and
• retighten the screws (B).
�
INDICATION
With certain tilt adjustments "collisions" between gas
spring and release lever can occur. In this case, be sure
that the gas spring has enough room when the max. tilt
angle is in use; see chapter 2.3.1 tilting.

2.3.6 Position push bar

If, for example, you have a great structure depth of the seat
shell on the back, the structure depth can be compensated
through the position of the push handles.
For this:
• (3) loosen the four screws (A) of the push bar
adapter (B),
• push the ends of the pipes from the push bar in
the wanted position, forward or backward
• and retighten all four screws (A).
ATTENTION
AFTER, IT IS IMPORTANT THAT YOU CHECK THE TILT BE-
HAVIOR OF THE LOOP WITH FULL STRAIN (WITH A PAS-
SANGER) AND THE HELP OF AN EXPERIENCED AND
STRONG PERSON.
IF NECESSARY, THE CENTRE OF GRAVITY MUST BE
CHANGED (WHEELBASE EXTENSION) AND THE POSITION
OF THE ANTI-TIPPER MUST BE RENEWED.
ATTENTION
Regularly check if the spring buttons (C), at the end of the
push bar pipes, functions properly
(1)
(2)
(A)
(3)
~ 1 cm
service record
(A)
(B)
(C)
(B)
(A)
15
