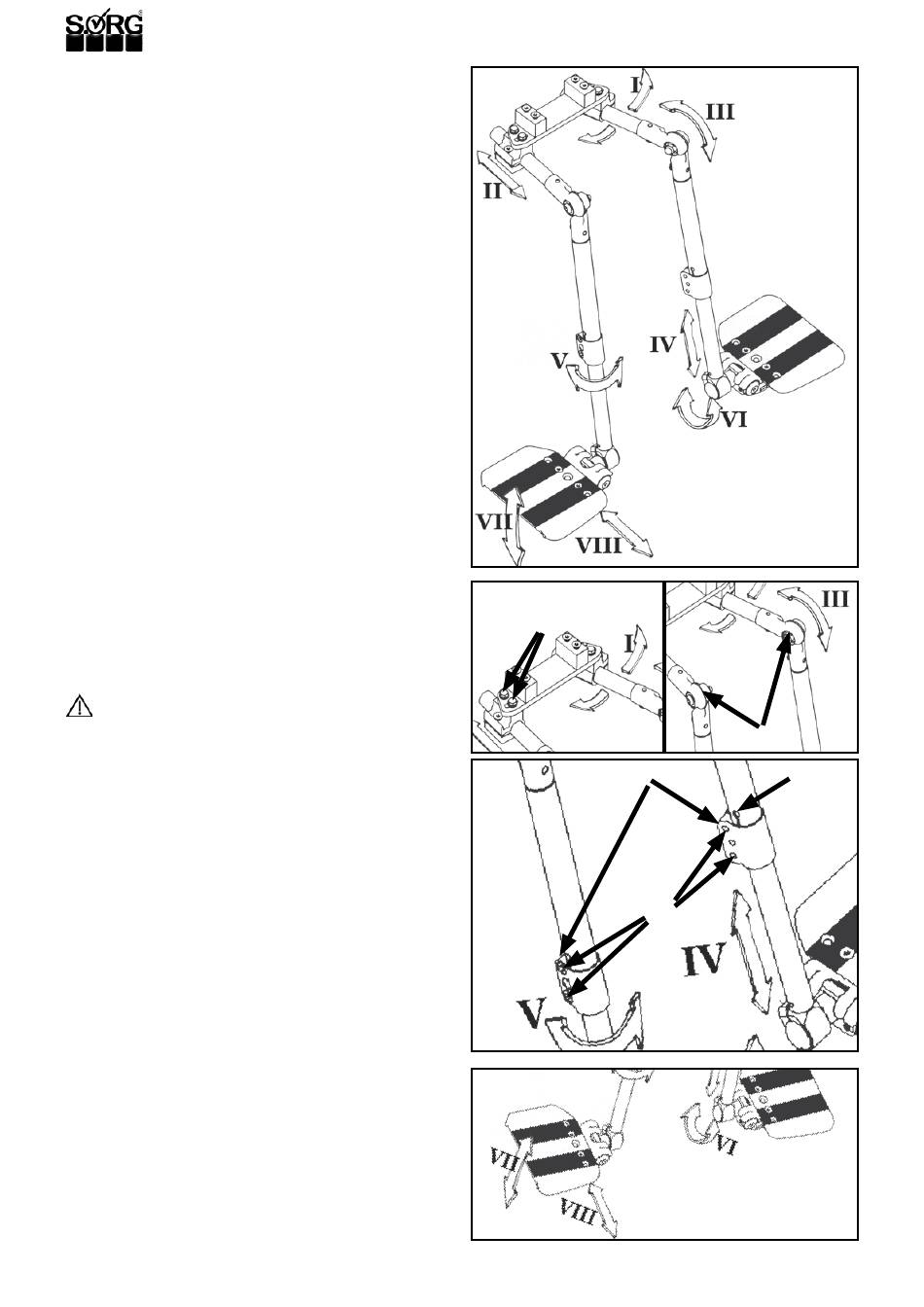

2.5.5 Multidirectional leg support
The multidirectional leg support has eight different setting
possibilities which are stated by roman numerals (I-VIII).
Each side, right and left, can be individually set.
Setting I (abduction width)
•
(2) Loosen both nuts (A) on both sides under
the seat plate,
•
turn the leg support/s inward/outward in the
position wanted and
•
retighten the screws (A).
Setting II (distance to seat plate)
•
Proceed as described in chapter 2.5.1.
Setting III (leg support angle)
•
(3) By loosening the eccentric clamp/s on the
raster element (A) the angle can be set.
Setting IV (distance seat and foot plate)
•
(4) At the end of the top leg support pipe is a
milled slot (A). Here, the bottom leg support
pipe is fixated or loosened by the clamp (B).
•
Loosen both screws (C) on each clamp (B),
•
put the foot board in the needed distance to
the seat plate and
•
retighten the screws (C).
Setting V (turning the foot plate)
•
(4) Loosen both screws (C) on each clamp (B),
•
turn the foot plate in the needed position and
•
retighten the screws (C).
Setting VI-VIII (turning the foot board)
•
(5) Proceed as described in chapter 2.5.3.
Setting thigh cushion
•
Please proceed as described in chapter 2.5.4.
ATTENTION
After every adjustment/setting on the lower leg length,
the clamp (4B) must be tightened firmly.
