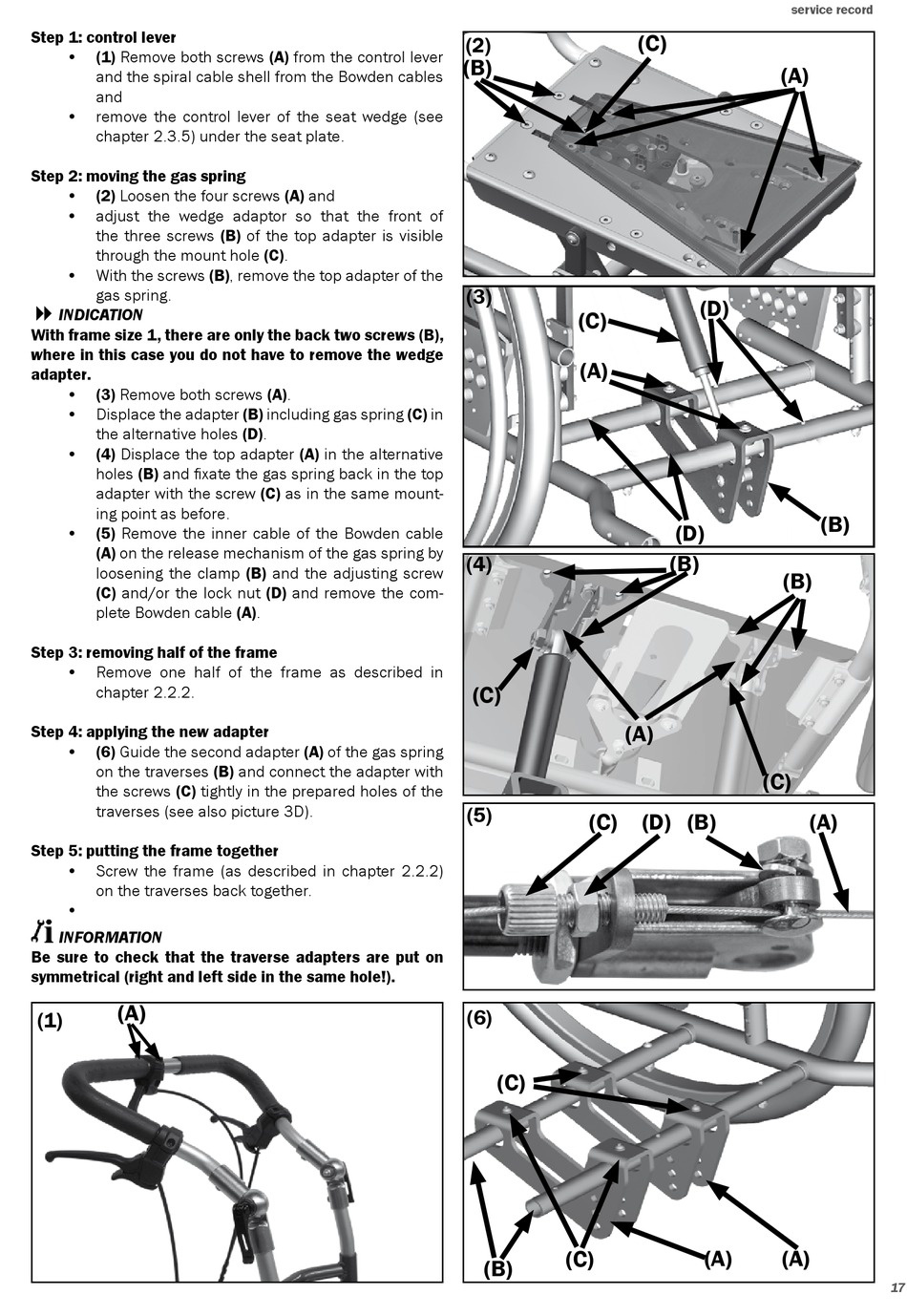

SORG Loop 802 Service Record For The Rehab Technician page 17

Step 1: control lever
• (1) Remove both screws (A) from the control lever
and the spiral cable shell from the Bowden cables
and
• remove the control lever of the seat wedge (see
chapter 2.3.5) under the seat plate.
Step 2: moving the gas spring
• (2) Loosen the four screws (A) and
• adjust the wedge adaptor so that the front of
the three screws (B) of the top adapter is visible
through the mount hole (C).
• With the screws (B), remove the top adapter of the
gas spring.
�
INDICATION
With frame size 1, there are only the back two screws (B),
where in this case you do not have to remove the wedge
adapter.
• (3) Remove both screws (A).
• Displace the adapter (B) including gas spring (C) in
the alternative holes (D).
• (4) Displace the top adapter (A) in the alternative
holes (B) and fixate the gas spring back in the top
adapter with the screw (C) as in the same mount-
ing point as before.
• (5) Remove the inner cable of the Bowden cable
(A) on the release mechanism of the gas spring by
loosening the clamp (B) and the adjusting screw
(C) and/or the lock nut (D) and remove the com-
plete Bowden cable (A).
Step 3: removing half of the frame
• Remove one half of the frame as described in
chapter 2.2.2.
Step 4: applying the new adapter
• (6) Guide the second adapter (A) of the gas spring
on the traverses (B) and connect the adapter with
the screws (C) tightly in the prepared holes of the
traverses (see also picture 3D).
Step 5: putting the frame together
• Screw the frame (as described in chapter 2.2.2)
on the traverses back together.
•
INFORMATION
Be sure to check that the traverse adapters are put on
symmetrical (right and left side in the same hole!).
