Loop
SORG

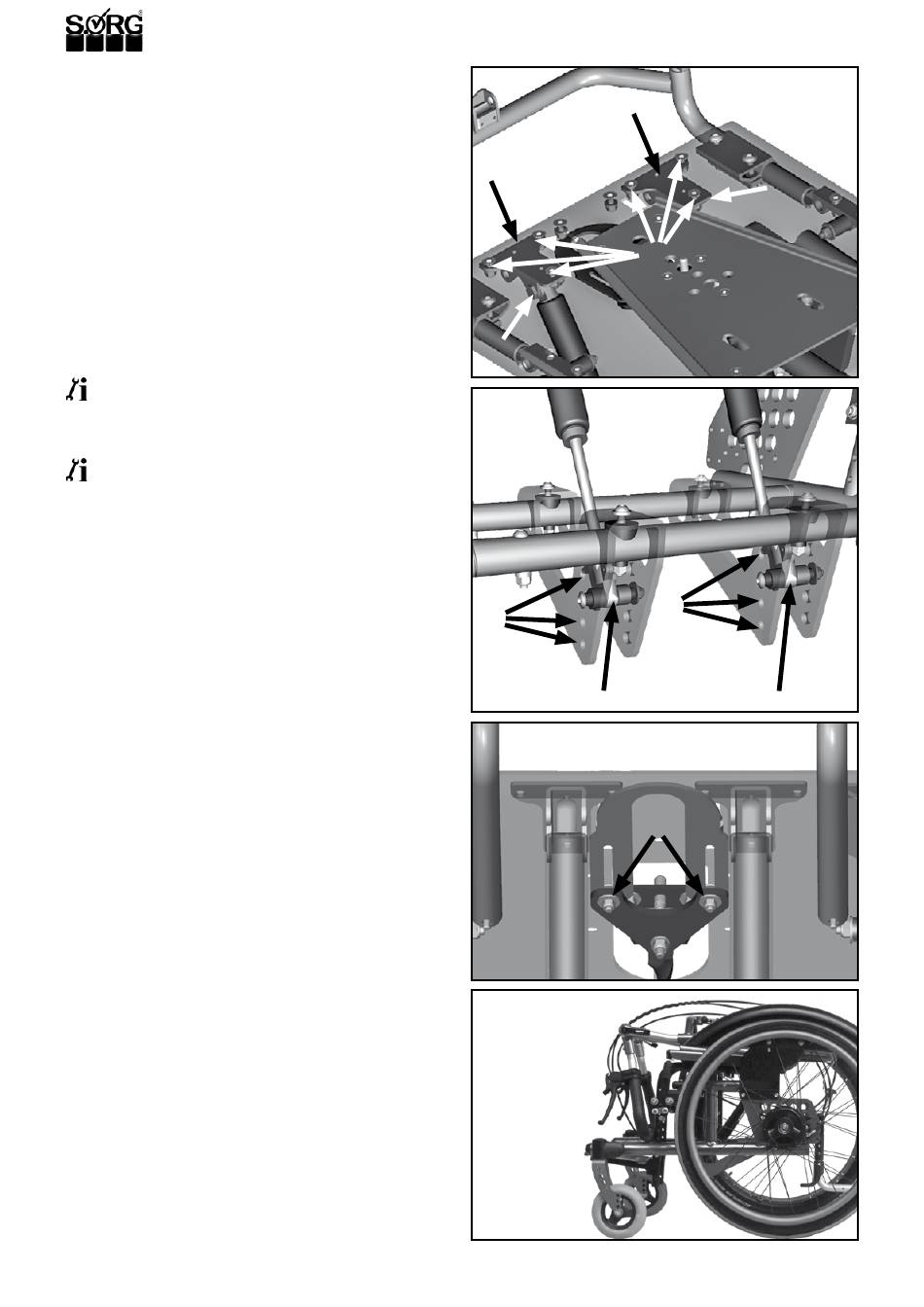

Step 6: mounting the top adapter
(1) Both alternative mounting possibilities of the
•
gas spring are shown in picture 1.
•
Attach the second top adapter (A) of the gas spring
by screwing it on with the three screws (B) under-
neath the seat plate in the prepared holes.
Step 7: mounting the new gas spring on the top
•
(1) Screw the gas spring on to the top adapter (A)
with the screw (C).
Step 8: mounting the new gas spring on the bottom
•
(2) Both alternative mounting possibilities of the
gas spring are also shown in picture 2.
•
Screw the gas spring in the bottom adapter with
the screw (A) in the prepared holes (B).
INFORMATION
Both gas springs must be mounted in the same mounting
points of the adapter.
INFORMATION
Use the same mounting point as before. Otherwise you
will receive a different tilt direction. For comparison: see
chapter 2.3.1 tilting.
Step 9: attaching the control lever again
•
Mount the new control lever for the gas spring on
the push bar as described in step 1 and
•
(3) mount the control lever of the seat wedge with
both screws (A) under the seat plate.
Step 10: installing the maximum length of the Bowden
cables
•
Place the push bar in the maximum push height,
•
(4) fold the back of the Loop forward and
•
lie the push bar forward toward leg support (see
picture), so that maximum length for the Bowden
cables is reached.
•
Now guide the new Bowden cable from the release
lever over the seat to the back and then back to
the front underneath the Loop to each release le-
ver of the gas springs.
•
Fold the back of the Loop back in an upright posi-
tion and
•
cut the ends of both Bowden cables to the needed
measurements.
Step 11:
•
(4) Fold the back of the Loop back in an upright
position.
18
(1)
(A)
(A)
(B)
(C)
(2)
(B)
(A)
(3)
(A)
(4)
(C)
(B)
(A)
