Loop
SORG
2.3.7 Double gas spring

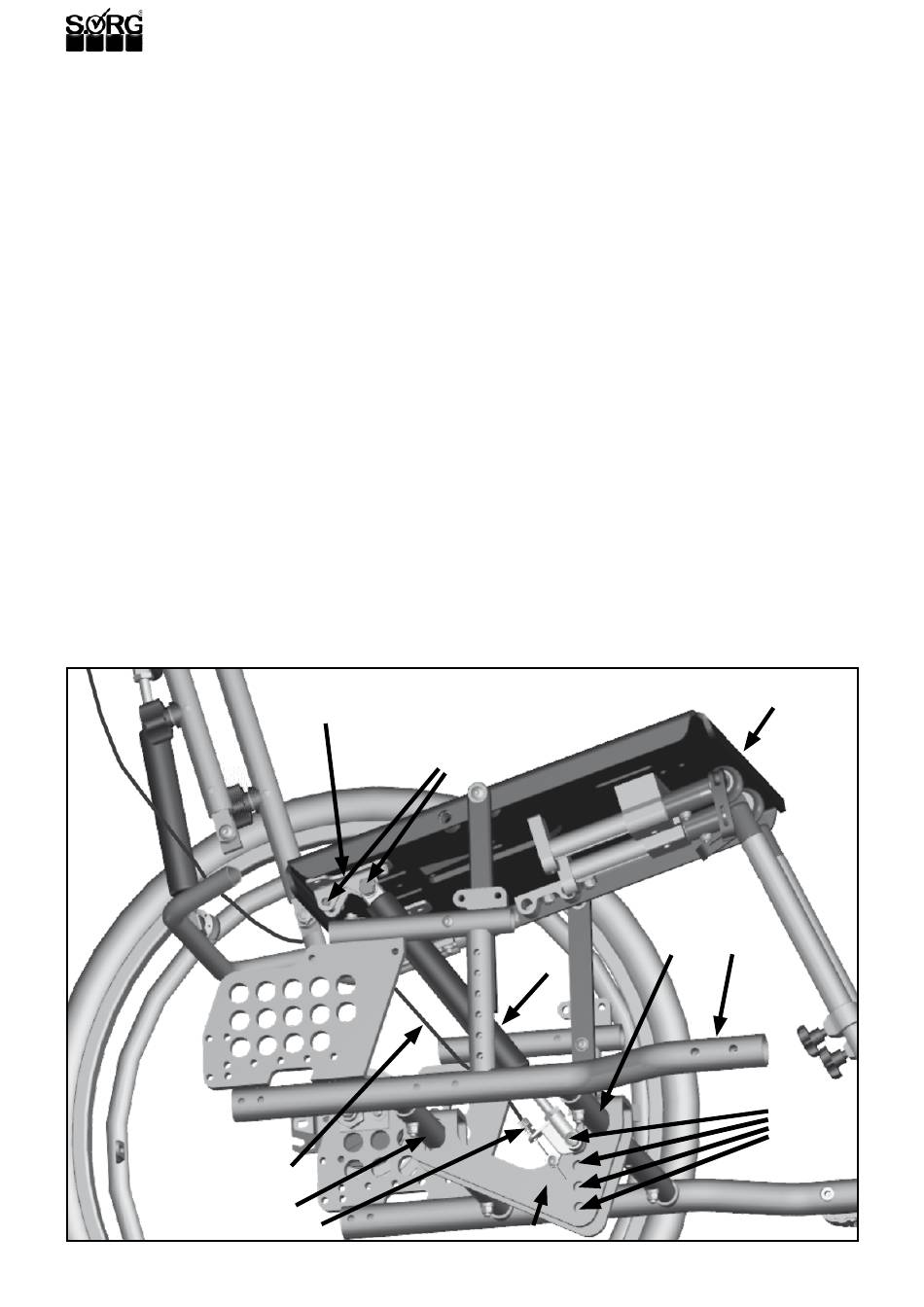

The components involved:
(1) (A) seat plate
(B) top adapter for gas spring
(C) top mounting points for gas spring
(D) bottom adapter for gas spring
(E) bottom mounting points for gas spring
(F) release lever for gas spring
(G) Bowden cables (with release lever on the push
bar)
(H) gas spring
(I) frame traverse
(J) frame half
(1)
16
(B)
(C)
(G)
(I)
(F)
An oversight of the individual steps to apply a second gas
spring in short form:
1. Remove control lever of the gas spring and
wedge adapter,
2. move the already available gas spring,
3. take off frame half,
4. attach new gas spring adapter,
5. put frame back together,
6. mount the top adapter under the seat plate,
7. attach new gas spring to the top adapter,
8. attach new gas spring to the bottom adapter,
9. mount the release lever for the double gas spring
on the bar,
10. determine the max. length of the new Bowden
cable and install it, cut the Bowden cables,
11. bring the back of the Loop into an upright posi-
tion,
12. mount the Bowden cable on the respective re-
lease mechanism of both gas springs,
13. fixate the traction of the release mechanisms,
14. if necessary, retighten wedge adapter,
15. test the tilting with max. strain and if necessary,
adjust.
(H)
(D)
(A)
(I)
(J)
(E)
