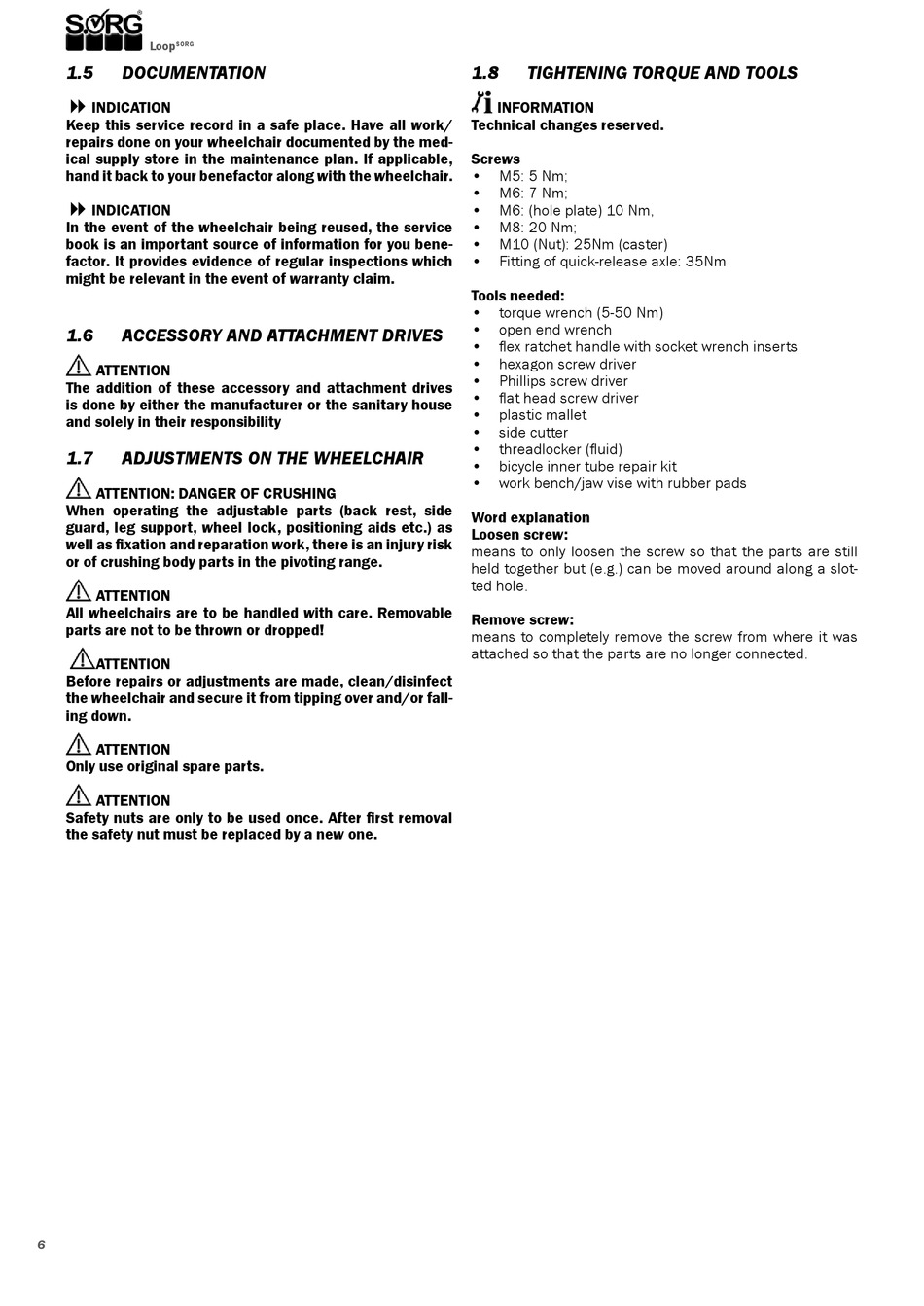

1.5
DOCUMENTATION
�
INDICATION
Keep this service record in a safe place. Have all work/
repairs done on your wheelchair documented by the med-
ical supply store in the maintenance plan. If applicable,
hand it back to your benefactor along with the wheelchair.
�
INDICATION
In the event of the wheelchair being reused, the service
book is an important source of information for you bene-
factor. It provides evidence of regular inspections which
might be relevant in the event of warranty claim.
1.6
ACCESSORY AND ATTACHMENT DRIVES
ATTENTION
The addition of these accessory and attachment drives
is done by either the manufacturer or the sanitary house
and solely in their responsibility
1.7
ADJUSTMENTS ON THE WHEELCHAIR
ATTENTION: DANGER OF CRUSHING
When operating the adjustable parts (back rest, side
guard, leg support, wheel lock, positioning aids etc.) as
well as fixation and reparation work, there is an injury risk
or of crushing body parts in the pivoting range.
ATTENTION
All wheelchairs are to be handled with care. Removable
parts are not to be thrown or dropped!
ATTENTION
Before repairs or adjustments are made, clean/disinfect
the wheelchair and secure it from tipping over and/or fall-
ing down.
ATTENTION
Only use original spare parts.
ATTENTION
Safety nuts are only to be used once. After first removal
the safety nut must be replaced by a new one.
6
1.8
TIGHTENING TORQUE AND TOOLS
INFORMATION
Technical changes reserved.
Screws
•
M5: 5 Nm;
•
M6: 7 Nm;
•
M6: (hole plate) 10 Nm,
•
M8: 20 Nm;
•
M10 (Nut): 25Nm (caster)
•
Fitting of quick-release axle: 35Nm
Tools needed:
•
torque wrench (5-50 Nm)
•
open end wrench
•
flex ratchet handle with socket wrench inserts
•
hexagon screw driver
•
Phillips screw driver
•
flat head screw driver
•
plastic mallet
•
side cutter
•
threadlocker (fluid)
•
bicycle inner tube repair kit
•
work bench/jaw vise with rubber pads
Word explanation
Loosen screw:
means to only loosen the screw so that the parts are still
held together but (e.g.) can be moved around along a slot-
ted hole.
Remove screw:
means to completely remove the screw from where it was
attached so that the parts are no longer connected.
