Loop
SORG

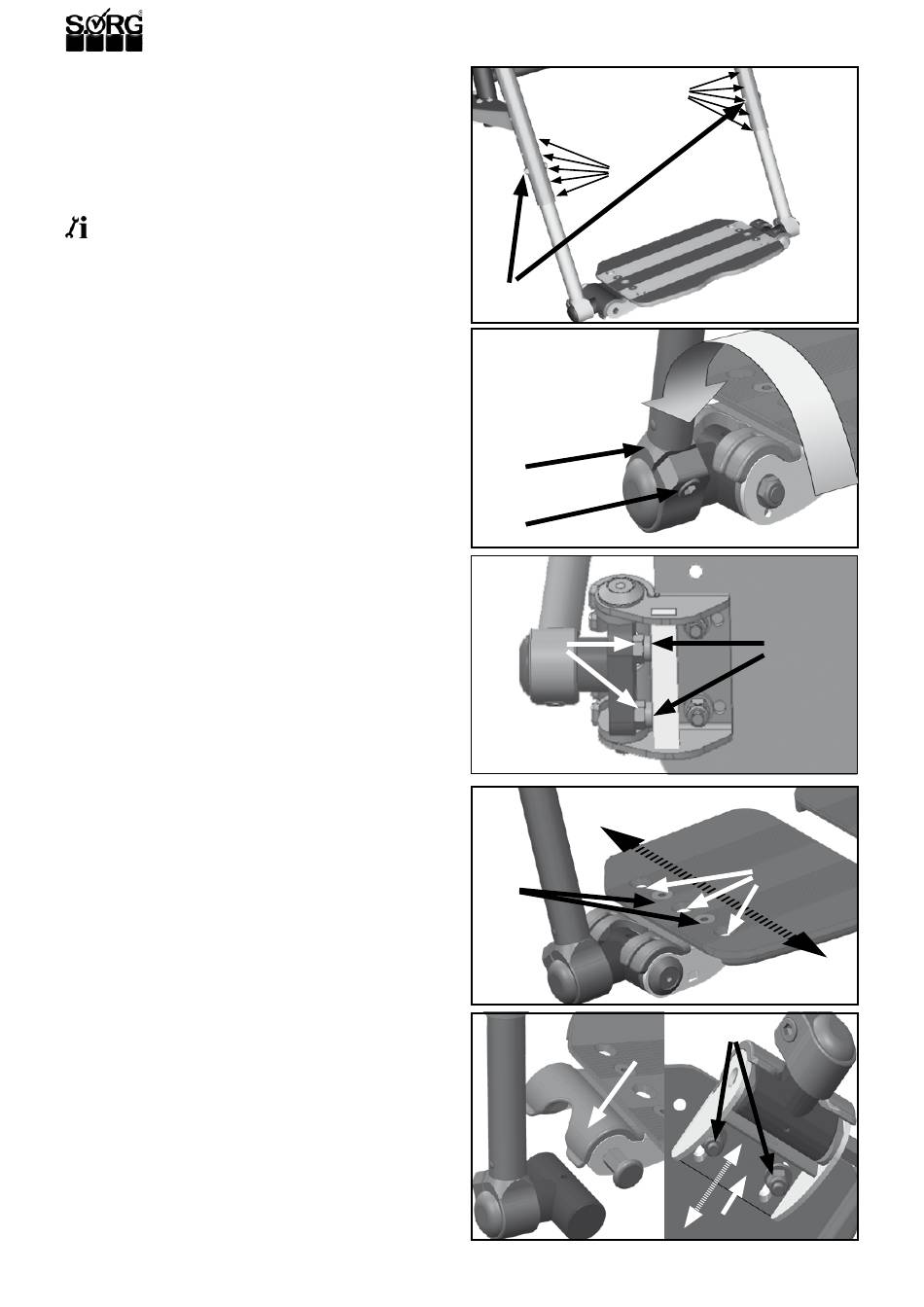

2.5.3 Leg supports which swing to the side
Setting distance between footrest and seat plate
•
(1) Remove both screws (A),
•
move the footrest/s and the alternative holes
(B),
•
replace both screws (A) and tighten them.
INFORMATION
When it comes to a continuous footrest you must move
both connections of the footrest parallel on the leg sup-
port.
Angle setting
•
(2) If possible, close the footrest.
•
Loosen the cylinder bolt (A) on both sides until
the clamp connection (B) loosens,
•
set wanted angle,
•
retighten cylinder bolt (A).
Fine adjustment of the try square
•
(3) loosen lock nut (A),
•
turn the stop screw (B) in the wanted position,
•
retighten the lock nut (A).
Depth adjustment of the footrest/s
•
(4) Remove the screws (A) on the footrest/s,
•
move the footrest/s in the holes (B) and
•
retighten the screws.
Fine adjustment of the locking claw
•
(5) To do fine adjustments on the locking claw
(A)
•
loosen the nuts (B) on the bottom,
•
move the holder (C) until the footrest closes.
•
Retighten the nuts.
24
(1)
(B)
(A)
(2)
(B)
(A)
(3)
(A)
(4)
(A)
(5)
(A)
(B)
(B)
(B)
(B)
(C)
