2.5.4 Leg support can be elevated with a
physiological turning point
Setting distance between footrest and seat plate
•

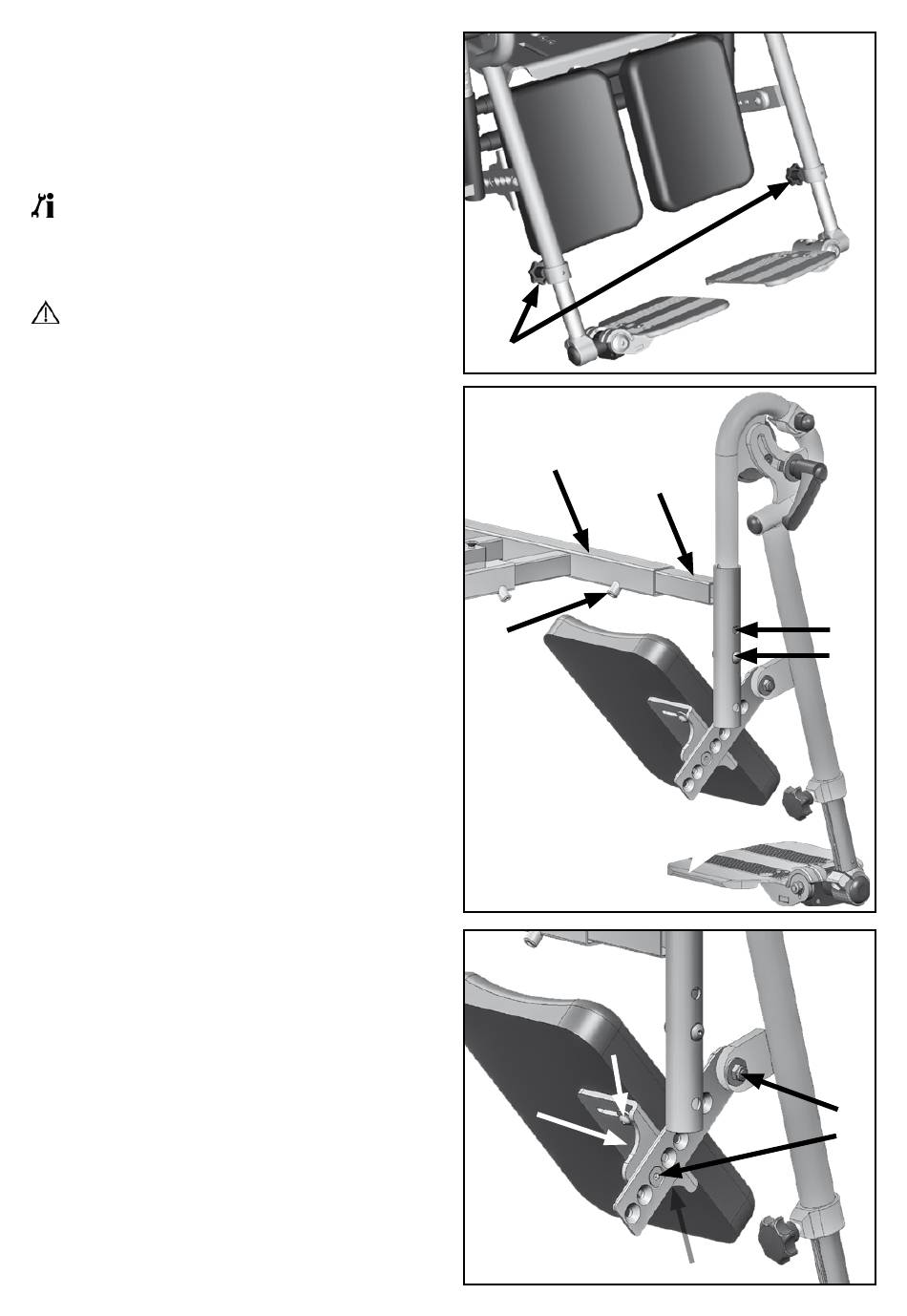

(1) Loosen both star knob screws (A),
•
move the footrest/s in the new position
•
and retighten the star knob screws.
INFORMATION
The star knob screws allow a flexible setting (length com-
pensation) for the lower leg length also when flipping the
leg supports up.
ATTENTION
After every change/setting made on the lower leg length,
the star knob screws must be screwed on tight.
For the following work:
•
angle setting,
•
stop angle,
•
depth setting
please proceed as already described in chapter 2.5.3.
Both leg supports can be differently positioned, left or right,
free from one another.
Setting the width of the leg support
•
(2) Loosen the headless screws (A),
•
pull/push the leg support adapter (B) out of
the adapter (C) in the desired position
•
and retighten the headless screws.
•
To change the height, remove the leg support,
•
move the screw (D) in the hole (E)
•
and retighten the screw (D).
•
Put the leg support back in the holder.
Setting thigh cushion
•
(3) To adjust the angle setting of the thigh cush-
ion loosen the screw (A) and/or this screw (B),
•
place the thigh cushion in the desired position
•
and retighten the screw (A) and/or (B).
•
To adjust the holder (C) of the thigh cushion,
remove the screw (B),
•
place the holder (C) in the wanted hole,
•
set the screw (B) back in
•
and tighten it.
•
To adjust the thigh cushion in the holder (C)
loosen both screws (D) (the second is not visi-
ble here),
•
move the thigh cushion in the desired position
•
and retighten the screw (D).
(1)
(A)
(2)
(C)
(A)
(3)
(D)
(C)
service record
(B)
(D)
(E)
(D)
(A)
(B)
25
