ASSEMBLY GROUP-FRAME EQUIPMENT

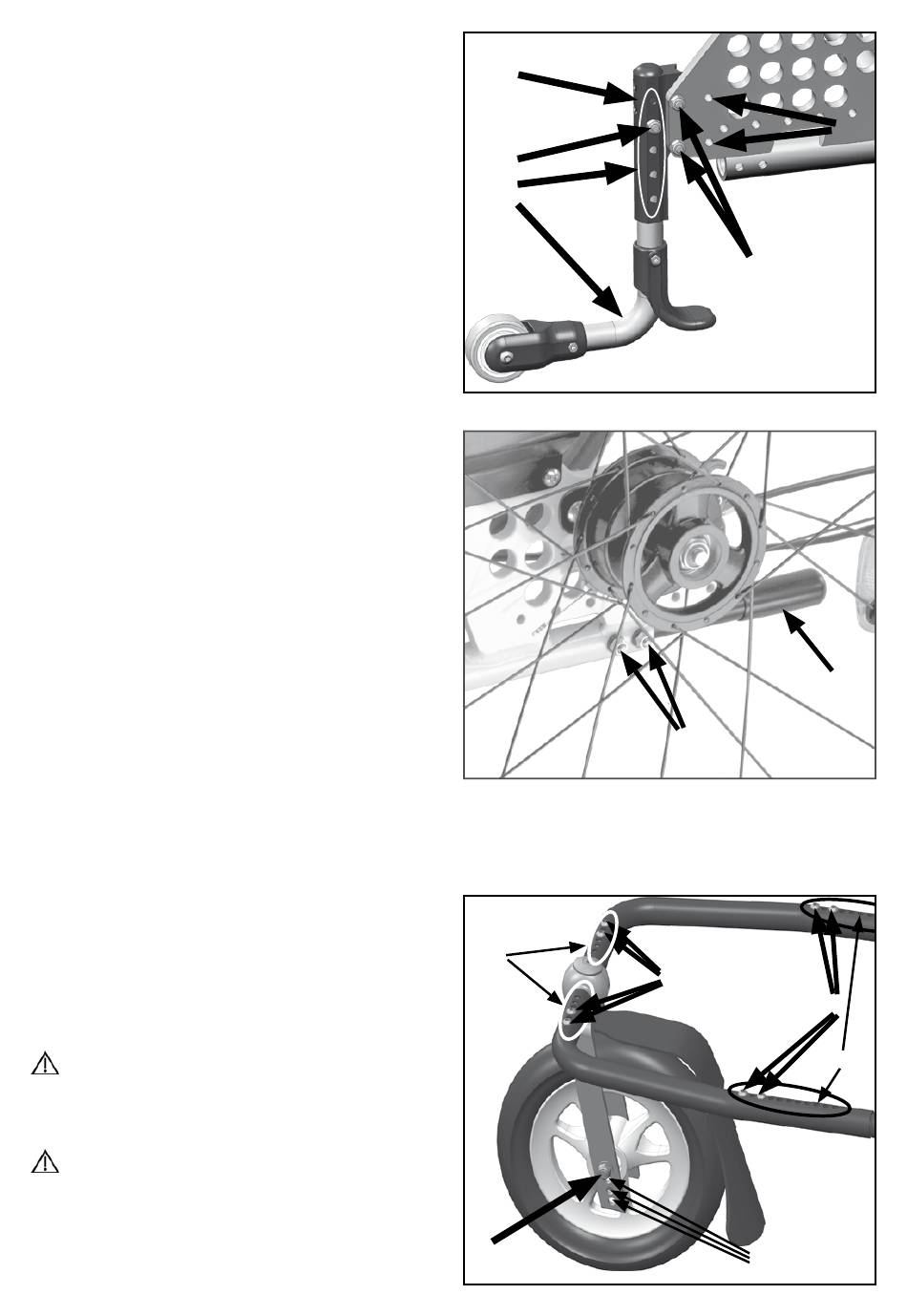

2.7.1 Anti-tipper
Height of anti-tipper:
•
(1) Remove the screws (A).
•
Pull the anti-tipper bar (B) down
•
and displace the screw (A) in the alternative holes
(C),
•
retighten the screws (A)
•
and release the anti-tipper bar (B).
•
Displacing the anti-tipper in the holes (E):
•
(1) Remove the screws (D),
•
place the distance pieces in between the hole
board and the holder (F),
•
replace the screws (D)
•
and tighten them.
Mounting the anti-tipper afterwards/additionally:
(1) Place the holder (F) on the holes (D),
•
•
put in the screws (D)
•
and tighten them.
2.7.2 Tipping lever
(2) Assembling the tipping lever:
•
Guide the tipping lever (A) in the right or left frame
pipe,
•
place the self-locking nuts (B) as well as the saddle
washer and locking washer in the holes
•
and tighten the nuts (B).
2.7.3 Outdoor Front End (pushing aid for out-
side)
The greater the seat tilt angle, the higher the tractability but
also the more wobbly the wheelchair!
(3) Setting the height of the casters:
•
Remove the axle with the screw (A),
•
place the axle in the alternative holes (B) of the
caster fork and
•
retighten the screw (A).
(3) Setting the length and/or width:
•
In order to change the length between the
wheelchair and caster remove the screws (C) on
both sides,
•
telescope the outdoor front end along the alternati-
ve holes (D) to the length wanted,
•
replace the screws (C) and retighten them.
•
In order to change width of the outdoor front end,
proceed the same way with the screws (E) along
the alternative holes (F).
ATTENTION
The screw pairs (A) and (B) must be moved parallel and
symmetrical. There must be at least one hole free bet-
ween the screws of each screw pair
ATTENTION
The tilting behavior changes crucially when using the
outdoor front end and must be practiced!
(1)
(F)
(A)
(C)
(B)
(2)
(3)
(F)
service record
(D)
(A)
(B)
(E)
(C)
(D)
(B)
(E)
29
