Loop
SORG

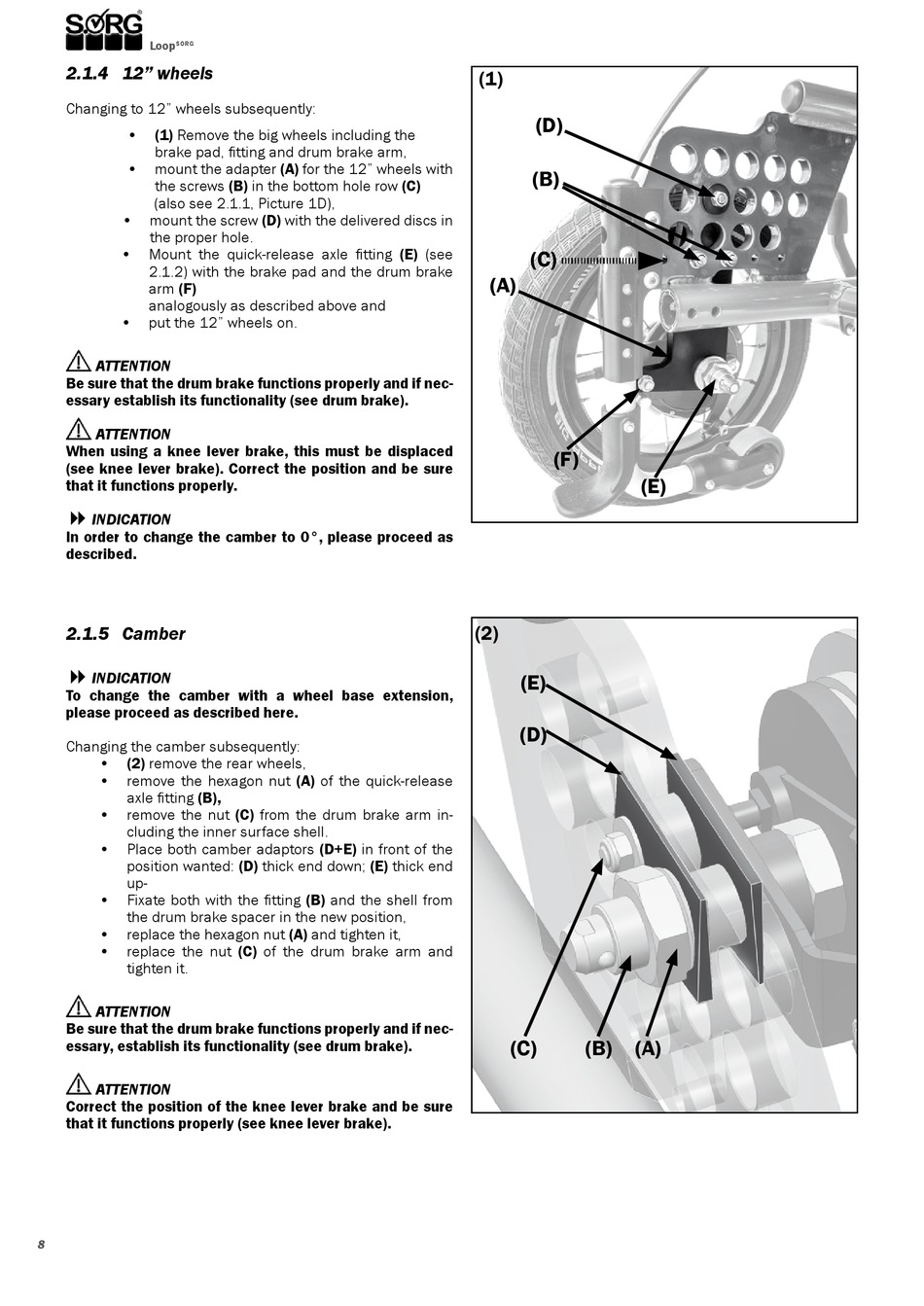

2.1.4 12" wheels
Changing to 12" wheels subsequently:
•
(1) Remove the big wheels including the
brake pad, fitting and drum brake arm,
•
mount the adapter (A) for the 12" wheels with
the screws (B) in the bottom hole row (C)
(also see 2.1.1, Picture 1D),
•
mount the screw (D) with the delivered discs in
the proper hole.
•
Mount the quick-release axle fitting (E) (see
2.1.2) with the brake pad and the drum brake
arm (F)
analogously as described above and
•
put the 12" wheels on.
ATTENTION
Be sure that the drum brake functions properly and if nec-
essary establish its functionality (see drum brake).
ATTENTION
When using a knee lever brake, this must be displaced
(see knee lever brake). Correct the position and be sure
that it functions properly.
�
INDICATION
In order to change the camber to 0°, please proceed as
described.
2.1.5 Camber
�
INDICATION
To change the camber with a wheel base extension,
please proceed as described here.
Changing the camber subsequently:
•
(2) remove the rear wheels,
•
remove the hexagon nut (A) of the quick-release
axle fitting (B),
•
remove the nut (C) from the drum brake arm in-
cluding the inner surface shell.
•
Place both camber adaptors (D+E) in front of the
position wanted: (D) thick end down; (E) thick end
up-
•
Fixate both with the fitting (B) and the shell from
the drum brake spacer in the new position,
•
replace the hexagon nut (A) and tighten it,
•
replace the nut (C) of the drum brake arm and
tighten it.
ATTENTION
Be sure that the drum brake functions properly and if nec-
essary, establish its functionality (see drum brake).
ATTENTION
Correct the position of the knee lever brake and be sure
that it functions properly (see knee lever brake).
8
(1)
(D)
(B)
(C)
(A)
(F)
(E)
(2)
(E)
(D)
(C)
(B)
(A)
