2.4

ASSEMBLY GROUP SEAT

2.4.1 Growth setting seat depth

The seat depth is changed the same for both types of seats
(seat cover/SeatFix). For preparation remove the driving
wheels.

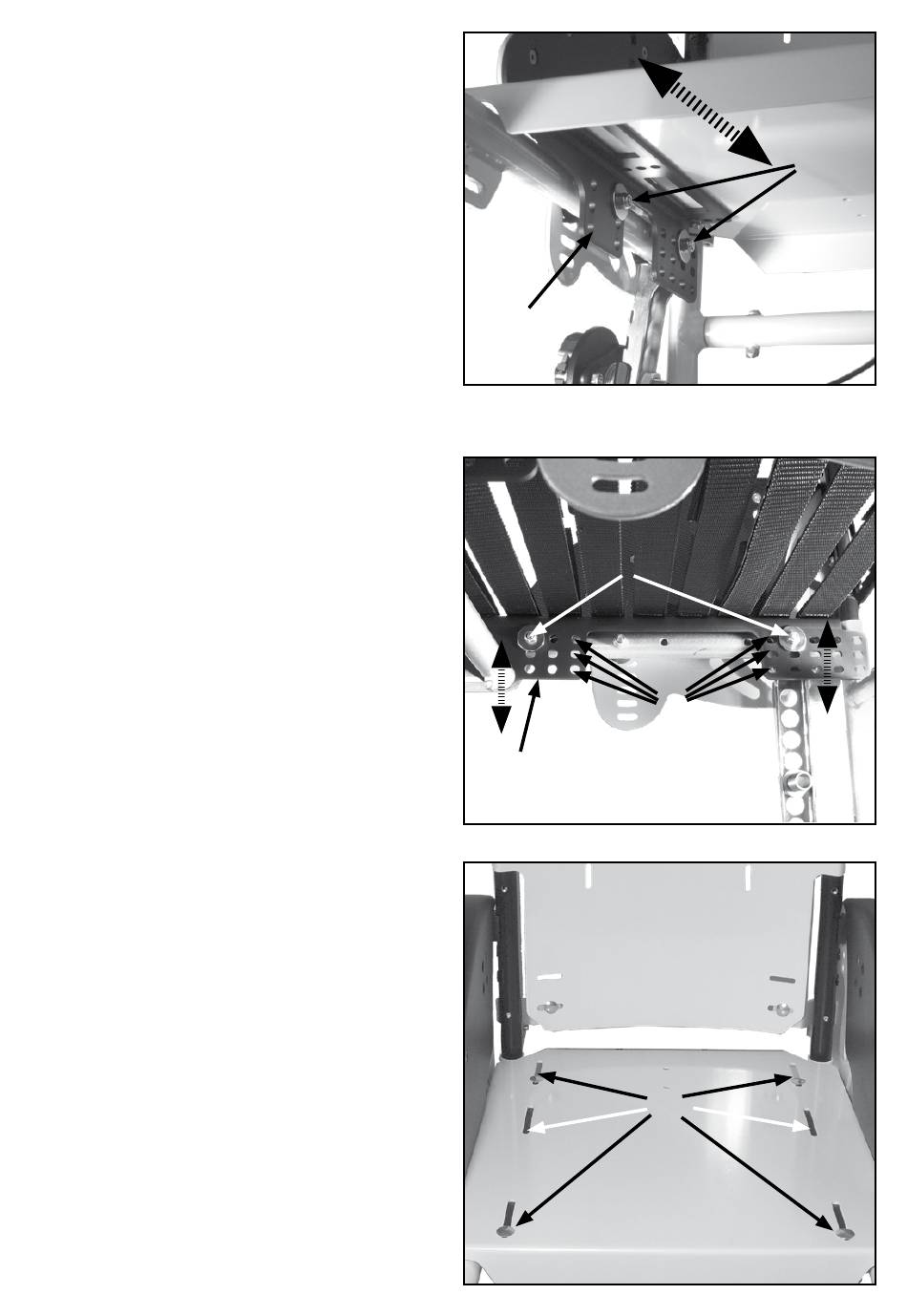

• (1+2) Remove the screws (A) on both sides of the
seat supporting angle (B) and pull the bushings as
far out of the side guards so that the seat support-
ing angle moves freely.
• Place the seat supporting angle in the new posi-
tion. Replace the bushings in the chosen hole (C)
of the seat support angle and retighten the screws
on both sides.

2.4.2 Setting the seat height

(2) The seat height is changes the same for both types of
seats (seat cover/SeatFix). For preparation please proceed
the same as described above.
• To change the seat support angle please proceed
the same way described above.

2.4.3 Setting the seat depth on SeatFix

(3) The seat depth can be changed on the SeatFix not only
with the position of the seat support angle but also addition-
ally with the screws on the seat plate.
• Remove all screws on the bottom side of the Seat-
Fix.
• Place the seat plate in the new position and re-
tighten all of the screws.
(1)
(B)
(B)
(2)
(A)
(B)
(3)
Service Record
(A)
(C)
(A)
11
