Loop
SORG

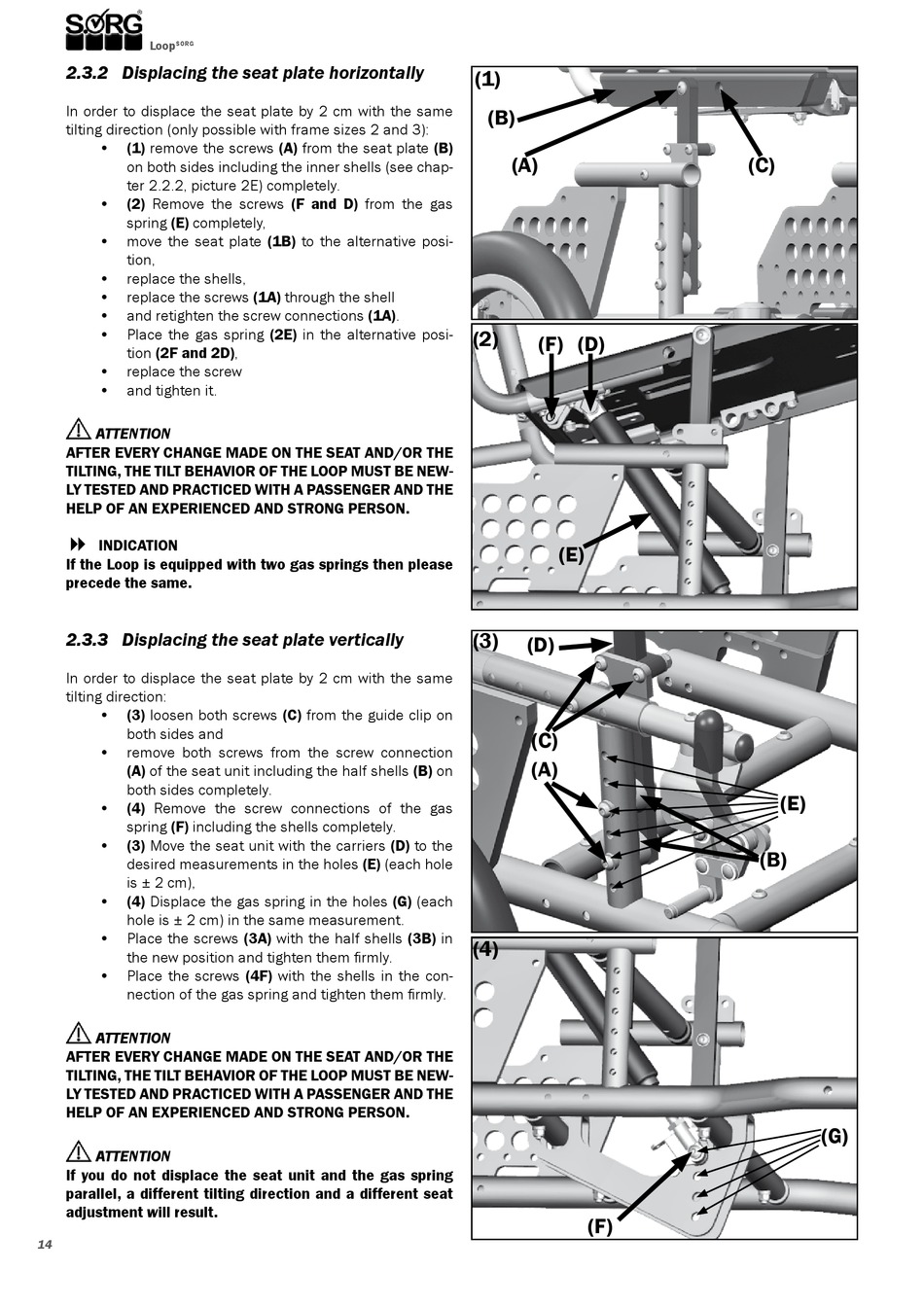

2.3.2 Displacing the seat plate horizontally
In order to displace the seat plate by 2 cm with the same
tilting direction (only possible with frame sizes 2 and 3):
•
(1) remove the screws (A) from the seat plate (B)
on both sides including the inner shells (see chap-
ter 2.2.2, picture 2E) completely.
•
(2) Remove the screws (F and D) from the gas
spring (E) completely,
•
move the seat plate (1B) to the alternative posi-
tion,
•
replace the shells,
•
replace the screws (1A) through the shell
•
and retighten the screw connections (1A).
•
Place the gas spring (2E) in the alternative posi-
tion (2F and 2D),
•
replace the screw
•
and tighten it.
ATTENTION
AFTER EVERY CHANGE MADE ON THE SEAT AND/OR THE
TILTING, THE TILT BEHAVIOR OF THE LOOP MUST BE NEW-
LY TESTED AND PRACTICED WITH A PASSENGER AND THE
HELP OF AN EXPERIENCED AND STRONG PERSON.
�
INDICATION
If the Loop is equipped with two gas springs then please
precede the same.
2.3.3 Displacing the seat plate vertically
In order to displace the seat plate by 2 cm with the same
tilting direction:
•
(3) loosen both screws (C) from the guide clip on
both sides and
•
remove both screws from the screw connection
(A) of the seat unit including the half shells (B) on
both sides completely.
•
(4) Remove the screw connections of the gas
spring (F) including the shells completely.
•
(3) Move the seat unit with the carriers (D) to the
desired measurements in the holes (E) (each hole
is ± 2 cm),
•
(4) Displace the gas spring in the holes (G) (each
hole is ± 2 cm) in the same measurement.
•
Place the screws (3A) with the half shells (3B) in
the new position and tighten them firmly.
•
Place the screws (4F) with the shells in the con-
nection of the gas spring and tighten them firmly.
ATTENTION
AFTER EVERY CHANGE MADE ON THE SEAT AND/OR THE
TILTING, THE TILT BEHAVIOR OF THE LOOP MUST BE NEW-
LY TESTED AND PRACTICED WITH A PASSENGER AND THE
HELP OF AN EXPERIENCED AND STRONG PERSON.
ATTENTION
If you do not displace the seat unit and the gas spring
parallel, a different tilting direction and a different seat
adjustment will result.
14
(1)
(B)
(A)
(2)
(F)
(D)
(E)
(3)
(D)
(C)
(A)
(4)
(F)
(C)
(E)
(B)
(G)
