3.3 Assembly Group Seat

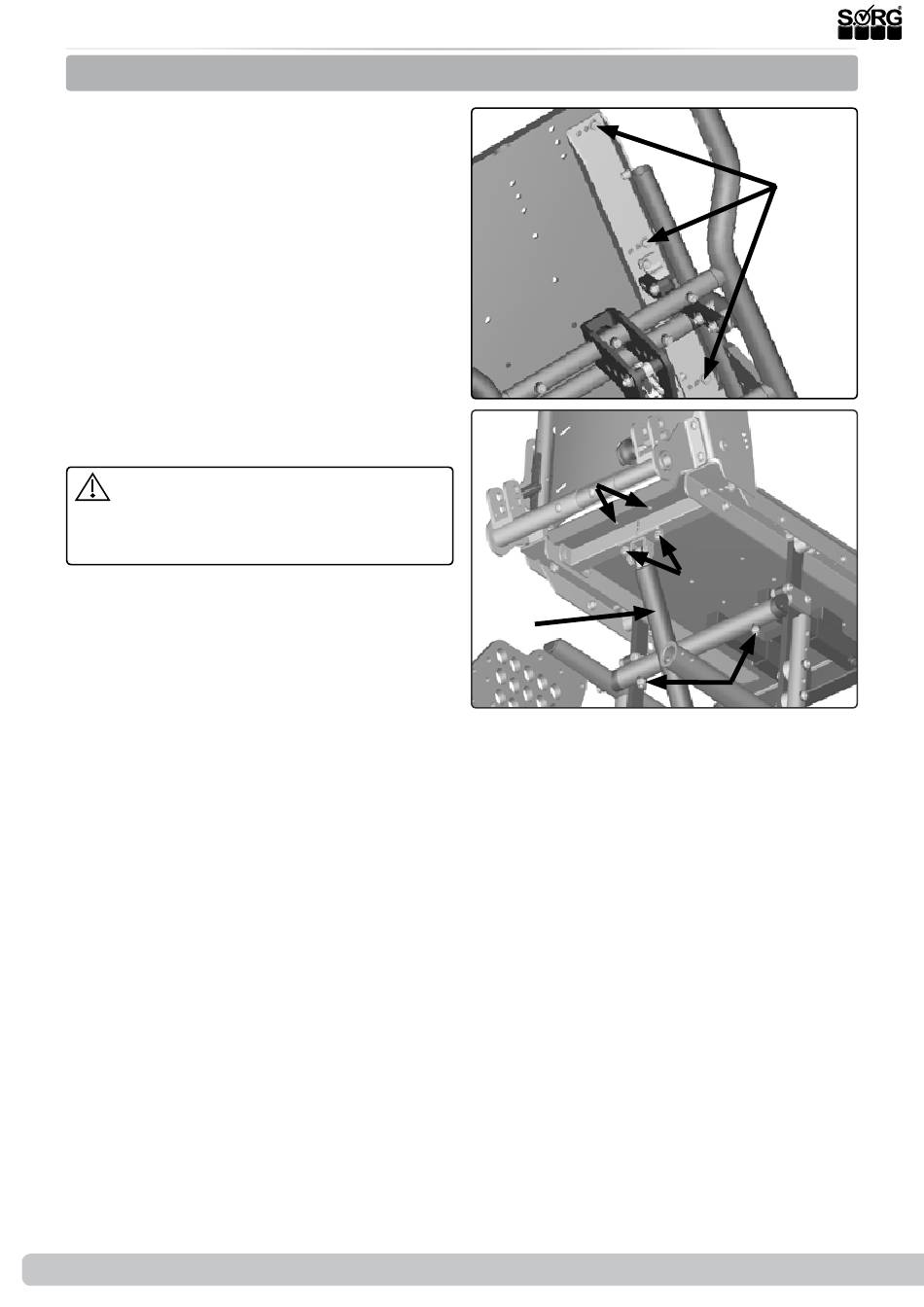

3.3.1 Horizontal displacement of the seat plate

For moving the seat plate by 20 mm / 2 cm
with the same tilting path to increase the seat
depth:
(1) Remove the screw (D) of the seat
plate completely on both sides.
(2) Remove the screw connection (F or
D) of the gas spring (E) completely,
put the seat plate in the alternative
position,
and tighten the screwed connections
(1D) again.
Move the gas spring (2E) to the alterna-
tive position (2F or 2D),
put the screw back in
and turn it tight.
We recommend a seat inclination of 3-5 °.
After any change to the seat unit and /
or tipping, the tipping behavior of the Loop-
SORGRS must be retested and practiced with
the help of an experienced, strong helper.
If the Loop
RS is equipped with two gas
SORG
pressure springs, proceed analogously.
18 of 40
(1)
(2)
(E)
Service Record Loop
SORG
(F)
(D)
RS
(D)
(A)
2019-07-16
