3.2 Assembly group seat
3.2.1 Tilting
You do not need to make any adjustments on
the tilting mechanism of the Mio Move.

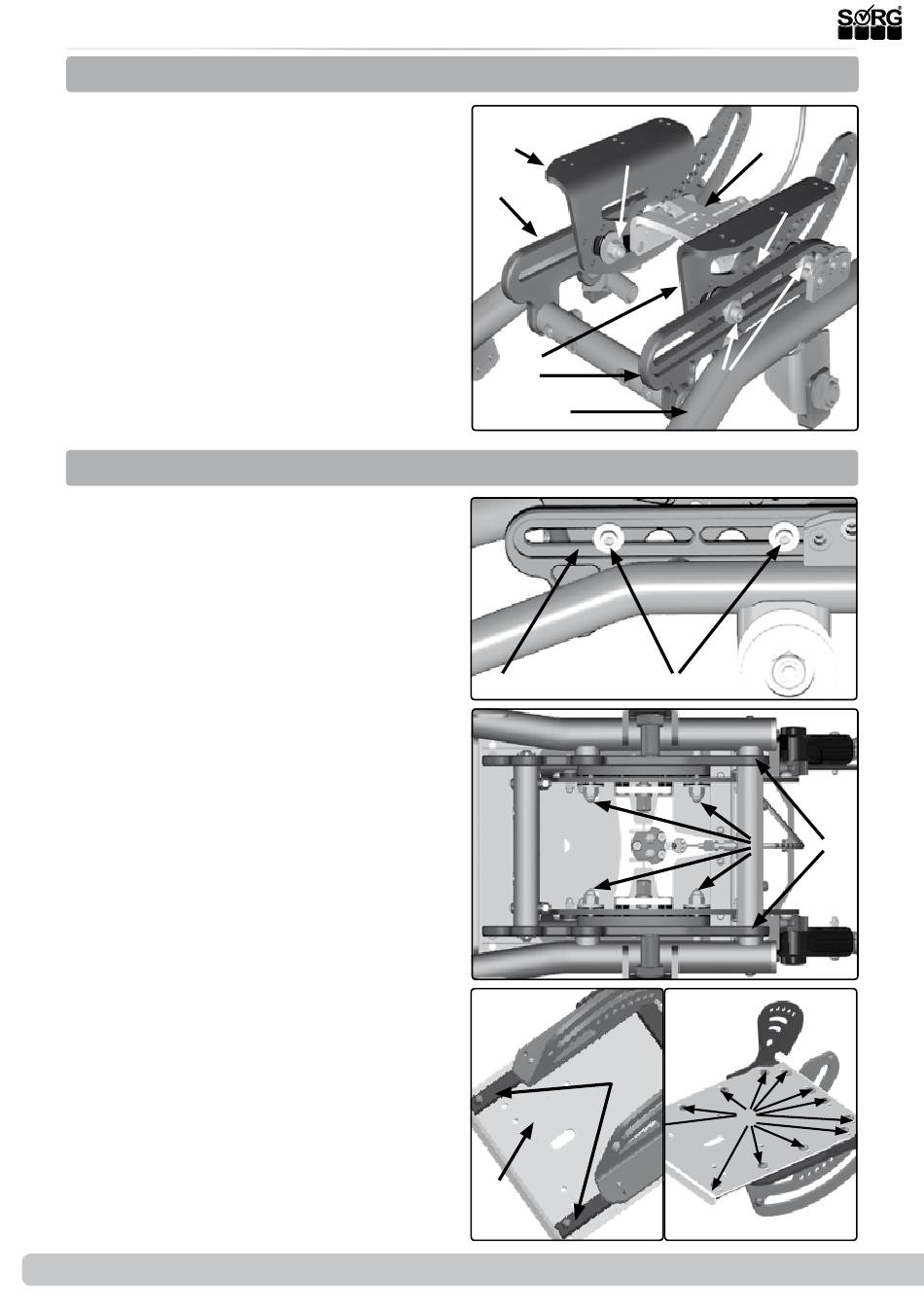

(1) A list of names of the individual assembly
parts of the seat (the same parts are found mir-
ror-inverted on the opposite side):
•
(A) frame pipe
•
(B) tilting
•
(C) tilting slide
•
(D) release mechanism for locking bolt
•
(E) locking bolt for the tilting
•
(F) cap nut with screw heads
3.2.2 Changing the seat position
(2+3) horizontal displacement
With a centered positioned seat you can change
the seat position along the tilting bar (A) 4,5 cm
forward or 4,5 cm backward.
•
Secure the wheelchair from rolling away,
•
loosen the four cap nuts (B) under the
seat on the inner surface (they do not
have to be fixated during the process),
•
turn the cap nuts (B) only so far that the
screw connection is retained (about half
a turn),
•
shift the seat along the tilting bar (A) in
the desired position and
•
retighten all four cap nuts (B).
(4) vertical displacement
The vertical displacement by Mio Move takes
place over the thickness of the seat cushion
and/or over the attachment of spacer bushings
between seat board (A) and the seat holders
(B).
•
(5) Remove the twelve screws (C),
•
replace the screws (C) with twelve longer
ones,
•
place the spacer bushings between the
seat board (4A) and the seat holders
(4B),
•
place the new (longer) screws (C) back
in the holes
•
and tighten all of the screws (C).
10 of 32
(1)
(C)
(B)
(2)
(A)
(3)
(4)
(A)
Service Record Mio Move
(F)
(C)
(B)
(A)
(B)
(5)
(B)
(D)
(E)
(F)
(B)
(A)
(C)
2019-07-16
