TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual

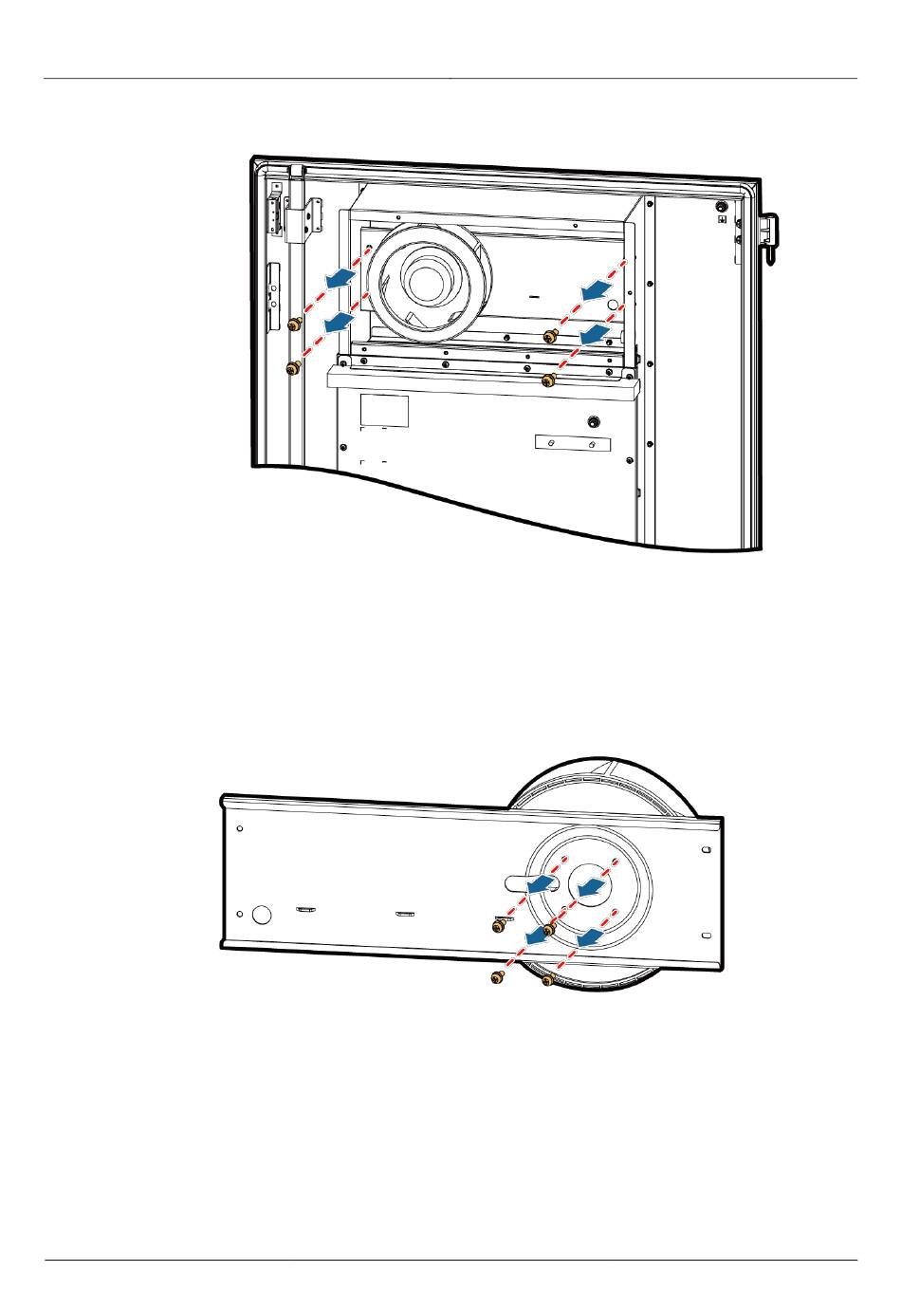

Figure 4-12 Removing the fixing plate from the internal circulation fan
4.
Remove the internal circulation fan, as shown in Figure 4-13.
Figure 4-13 Removing the internal circulation fan
Step 4 Install a new internal circulation fan.
1.
Secure the internal circulation fan to the fan fixing plate using screws.
2.
Install the fan fixing plate.
3.
Install the cover for the internal circulation fan.
Issue 03 (2019-11-15)
Copyright © Huawei Technologies Co., Ltd.
4 Maintenance
71
