3.2 PDU

TP48200A-DT19C1 and TP48200A-HT19C1
3.2 PDU shows the power distribution unit (PDU) for the TP48200A-DT19C1 and
TP48200A-HT19C1.

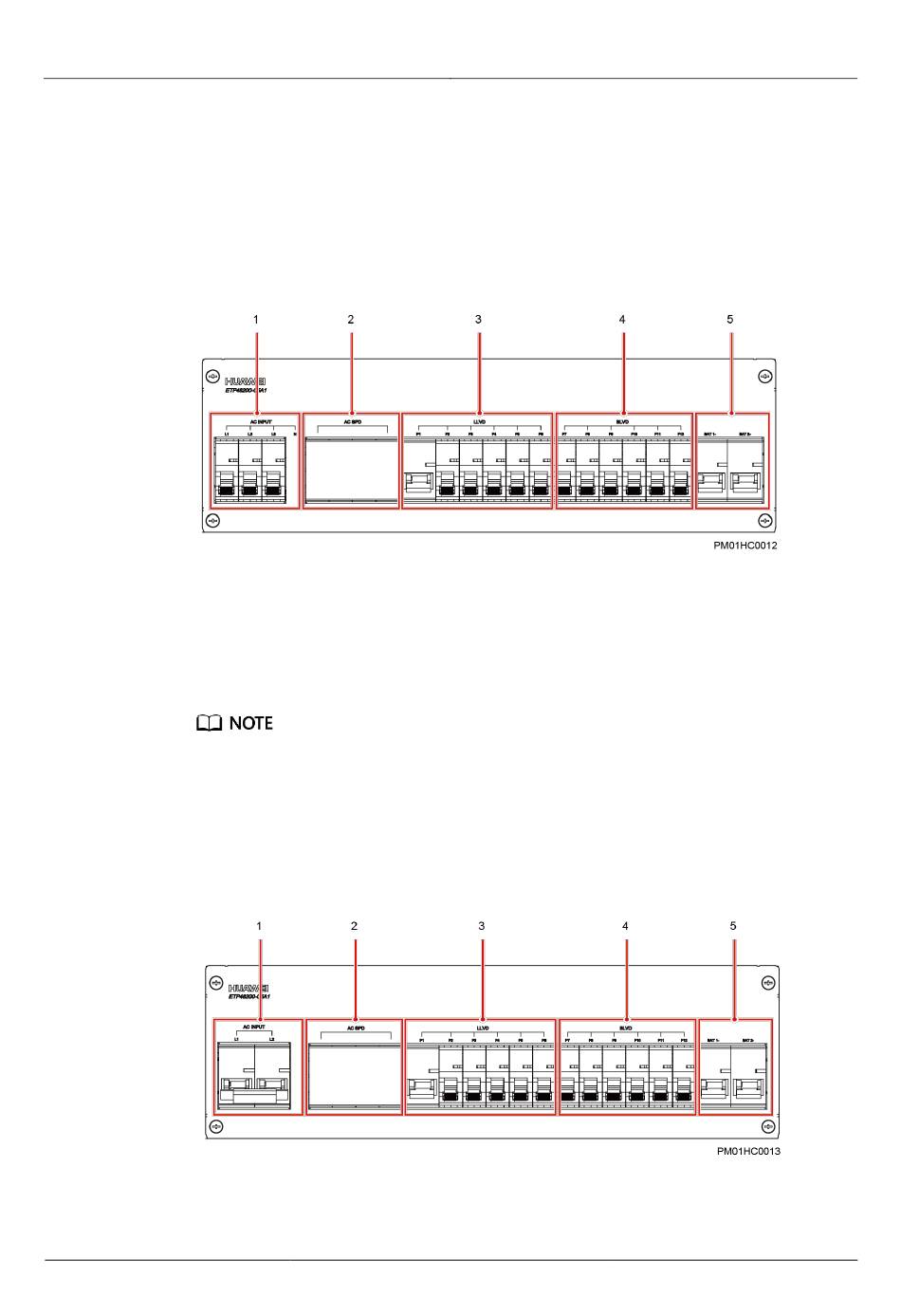

Figure 3-5 PDU for the TP48200A-DT19C1 and TP48200A-HT19C1
(1) AC input circuit
breakers
(4) BLVD circuit breakers
TP48200A-DT19C2 and TP48200A-HT19C2
Figure 3-6 shows the PDU for the TP48200A-DT19C2 and TP48200A-HT19C2.
Figure 3-6 PDU for the TP48200A-DT19C2 and TP48200A-HT19C2
(1) AC input circuit breakers
Issue 03 (2019-11-15)
The TCUA control box occupies the F10 BLVD circuit breaker.
Copyright © Huawei Technologies Co., Ltd.
(2) AC surge protective device
(SPD)
(5) Battery circuit breakers
(2) AC SPD
3 Components
(3) LLVD circuit
breakers
(3) LLVD circuit breakers
