TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
3.8.1 Smoke Sensor

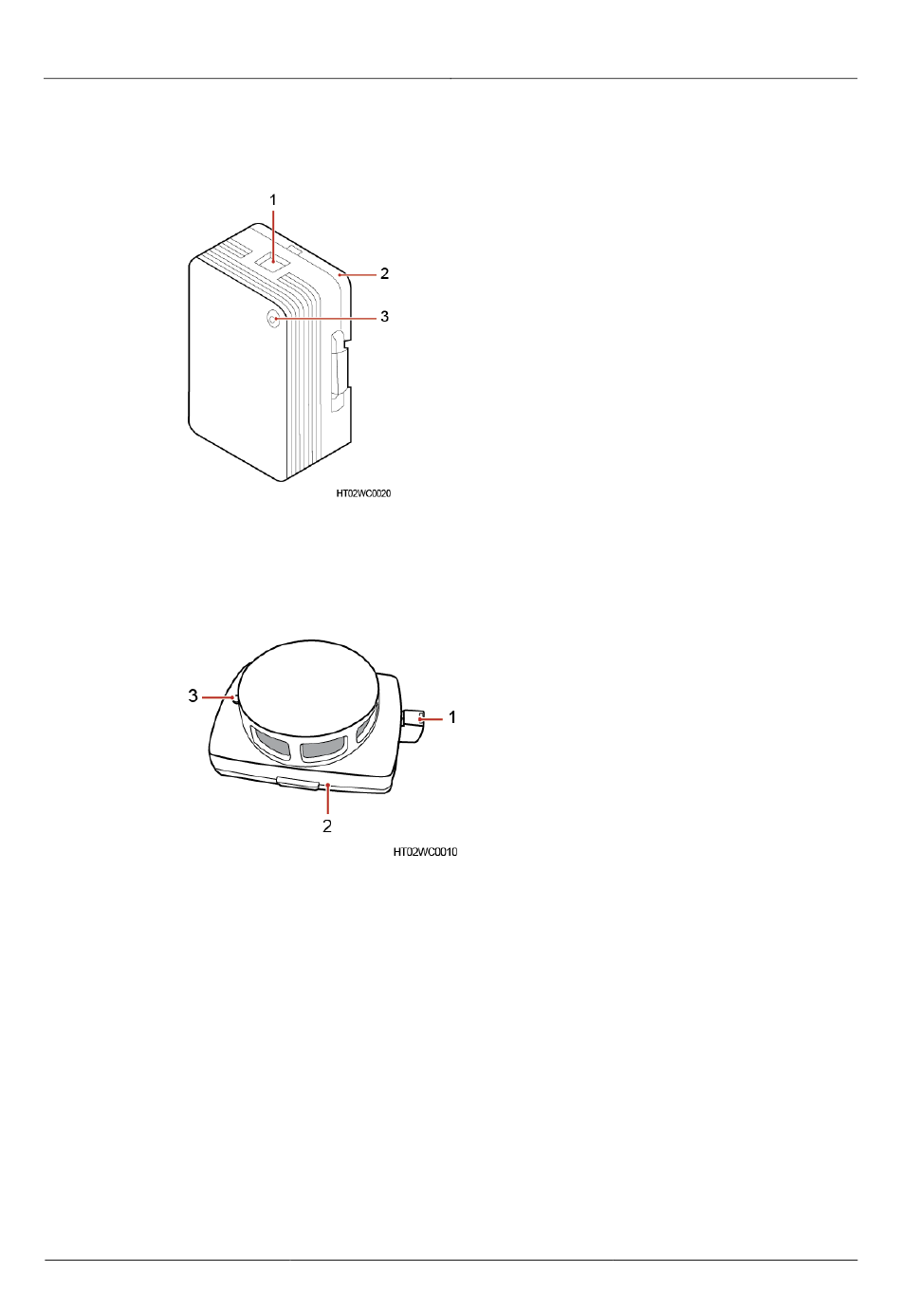

Figure 3-21 Smoke sensor 1
(1) Wiring port
Figure 3-22 Smoke sensor 2
(1) Wiring port
Issue 03 (2019-11-15)
(2) Base
(2) Base
Copyright © Huawei Technologies Co., Ltd.
3 Components
(3) Indicator
(3) Indicator
43
