TP48200A-DT19C1, TP48200A-DT19C2,

TP48200A-HT19C1 and TP48200A-HT19C2 Telecom

Power

User Manual

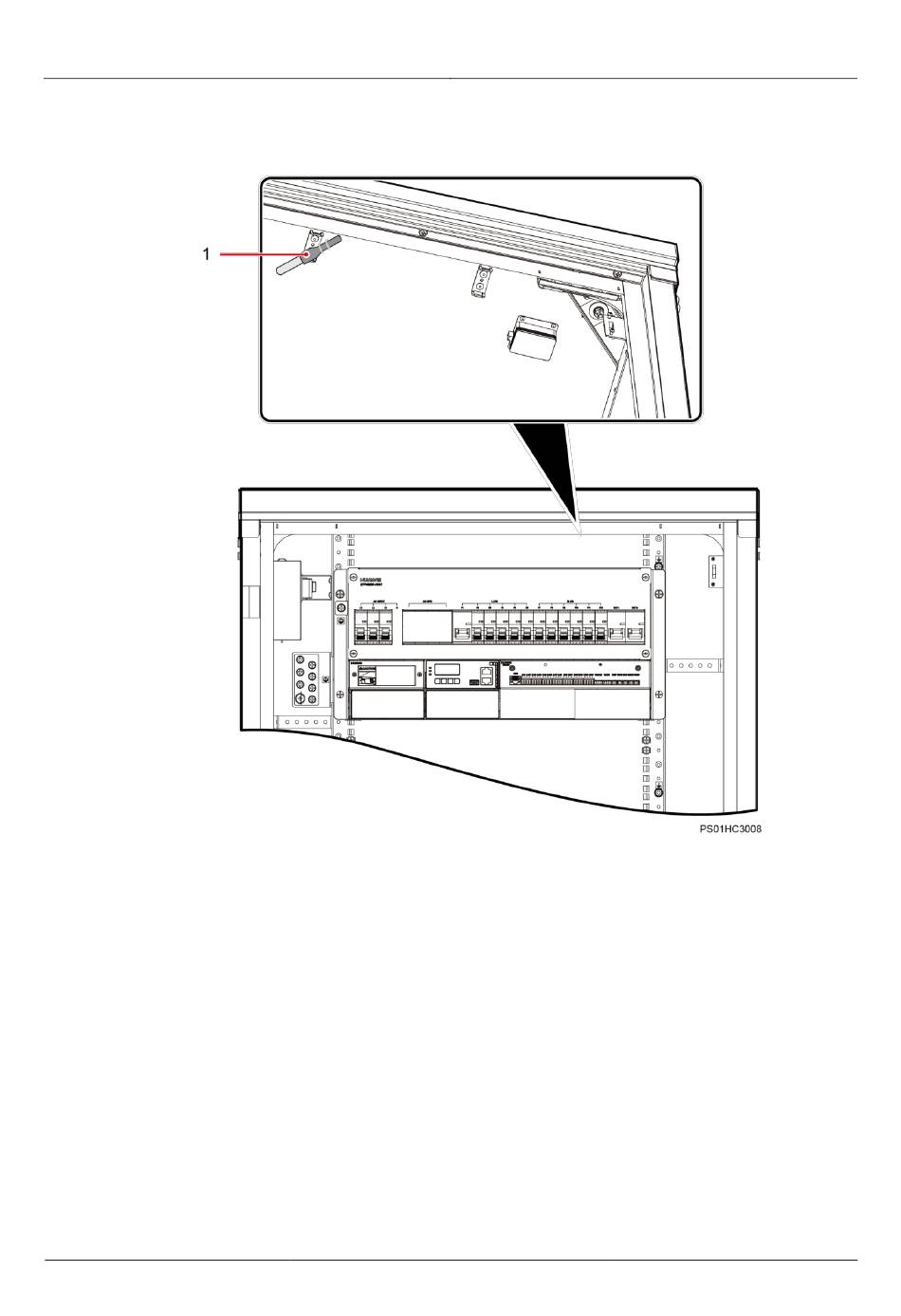

Figure 4-32 Position of the temperature sensor in the equipment compartment (for the

TP48200A-HT19C1 & HT19C2)

(1) Temperature sensor for the equipment compartment

Step 4 Properly place the new temperature sensor in the equipment compartment and bind it securely

with a cable tie.

Step 5 Reconnect the temperature sensor cable to the UIM.

Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and

ESD gloves.

----End

Issue 03 (2019-11-15)

4 Maintenance
