TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
Port Definitions

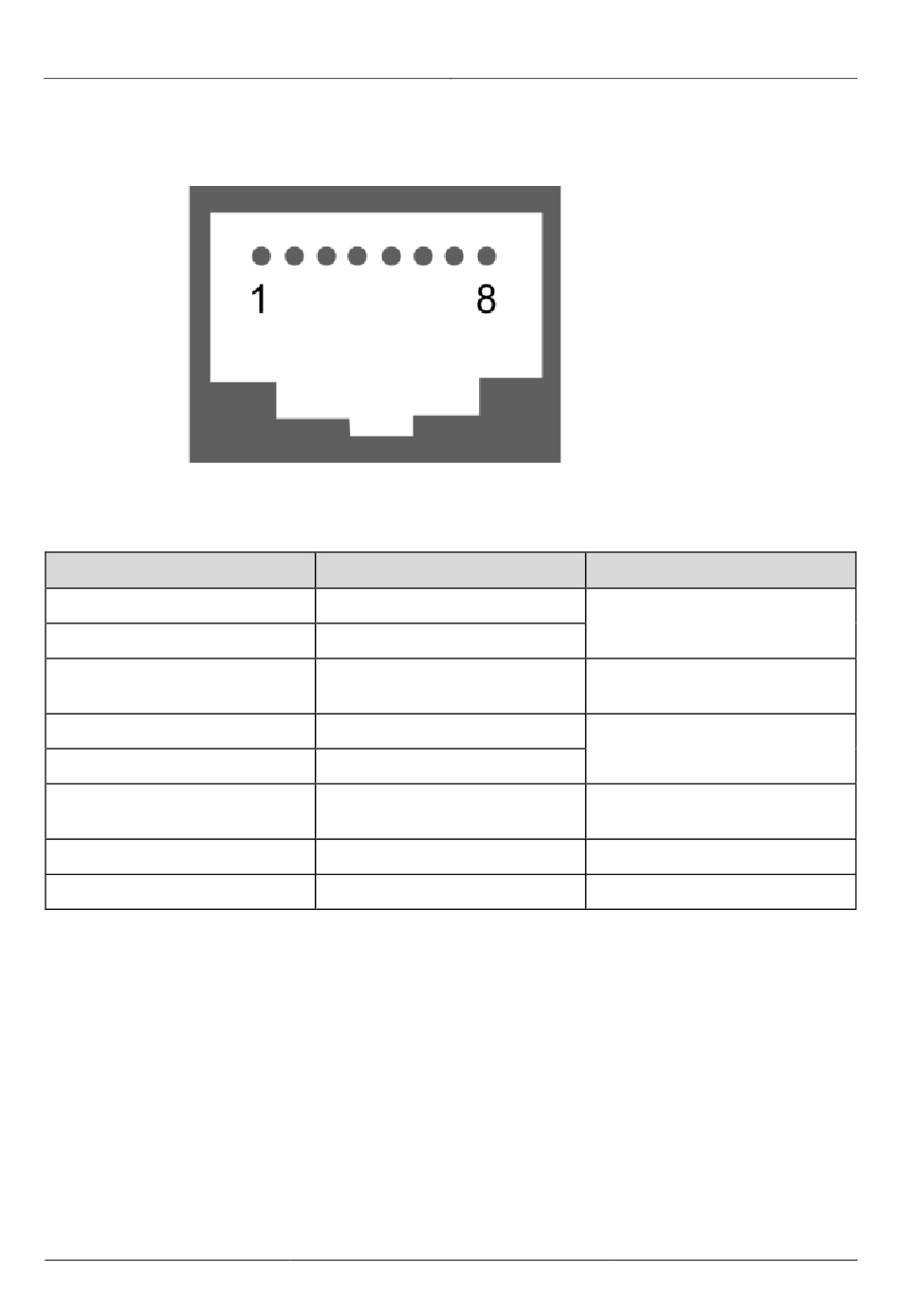

Figure 3-30 Ports on the electric door lock
Table 3-13 Port definitions of the electric door lock
Pin
1
2
3
4
5
6
7
8
Issue 03 (2019-11-15)
Definitions
TX+
TX-
+12 V
RX+
RX-
OPEN_DOOR
GND
GND
Copyright © Huawei Technologies Co., Ltd.
3 Components
Description
Sends data over RS485.
Supplies power for the electric
door lock
Receives data over RS485.
Controls the electric door lock
(reserved)
GND
GND
48
