TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
(4) Power input port

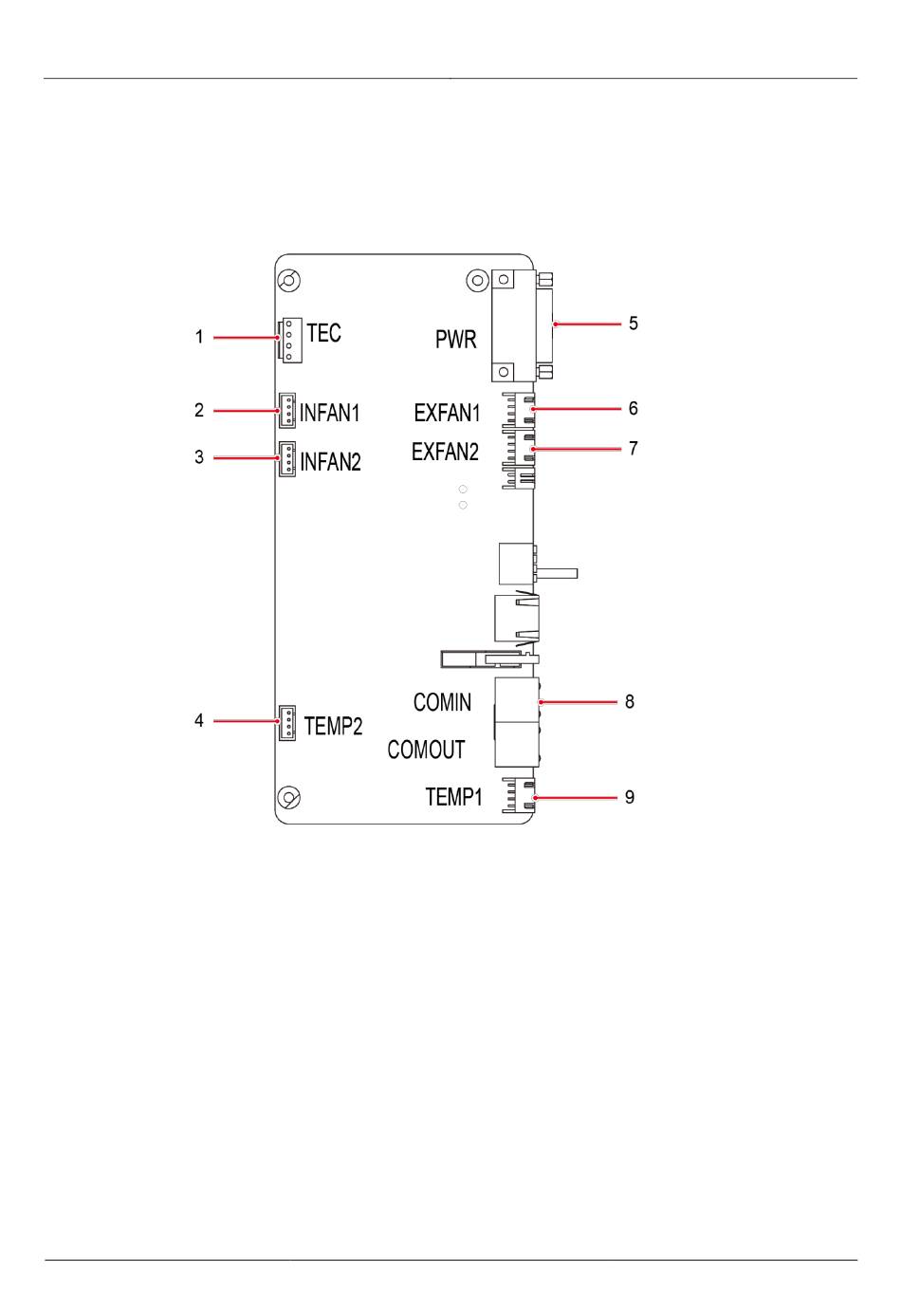

Figure E-2 Cables Connection of TCUA Control Board (TP48200A-HT19C1 & HT19C2)
(1) TEC refrigeration chip
port
(4) Heat exchanger extra
temperature sensor port
(7) Heat exchanger external
circulation fan port
Issue 03 (2019-11-15)
(5) Communication port
(2) TEC internal
circulation fan port
(5) Power input port
(8) Communication port
Copyright © Huawei Technologies Co., Ltd.
E Cables Connection of TCUA Control Board
(6) TEC temperature sensor
port
(3) TEC external circulation
fan port
(6) Heat exchanger internal
circulation fan port
(9) TEC extra temperature
sensor port
105
