Step 4 Install a new TEC.
1.
2.
3.
Step 5 Install the TCUA control box.
1.
2.
3.
Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and
ESD gloves.
----End
Follow-up Procedure
Send the replaced TEC for repair.
Issue 03 (2019-11-15)

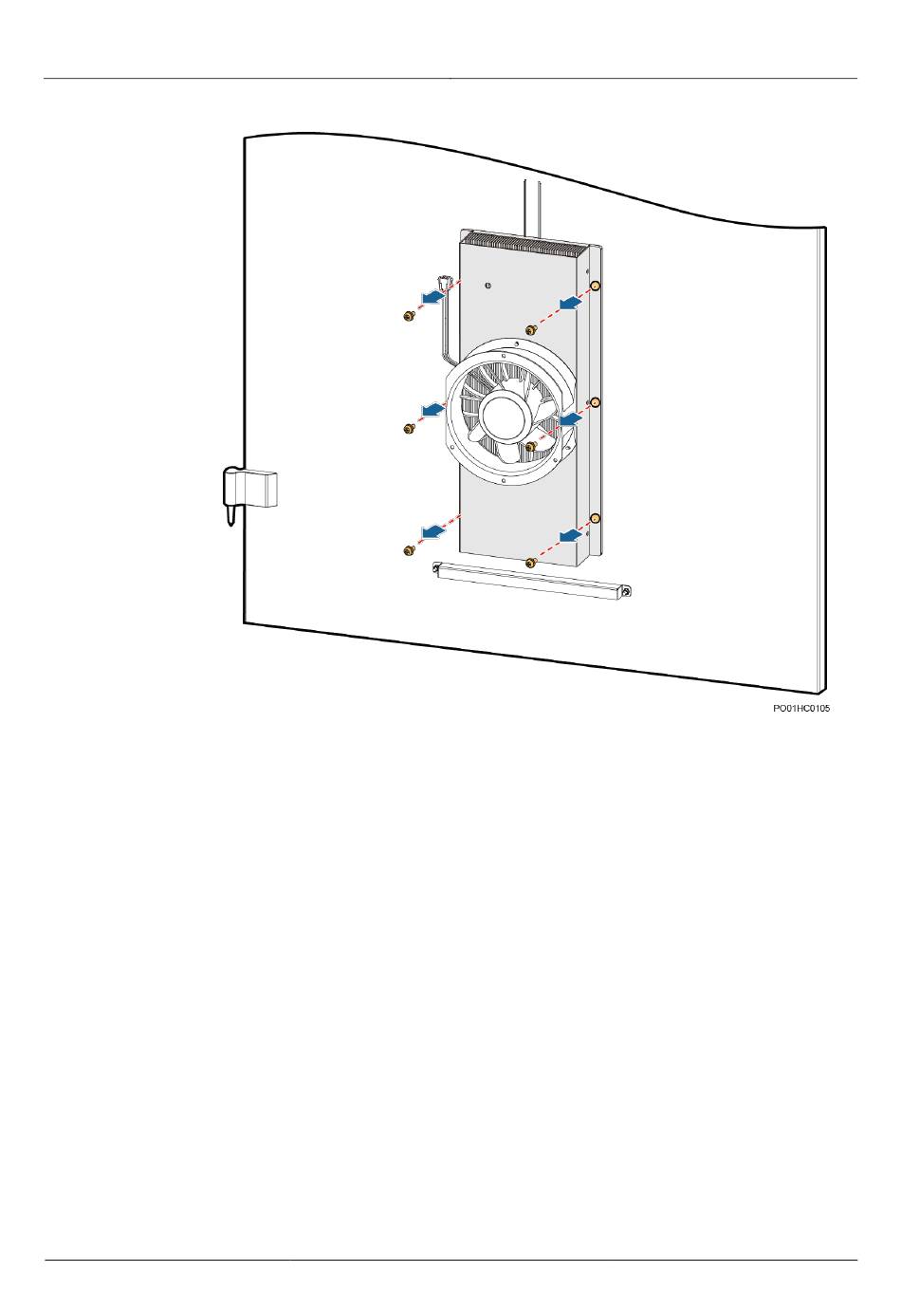

Figure 4-23 Removing the TEC
Properly place the TEC and tighten the screws.
Place the external cover onto the cabinet door, and tighten the screws.
Connect the cables between the TEC and the TCUA control board based on the recorded
positions.
Properly place the TCUA control box and tighten the screws.
Connect the signal cable to the TCUA control box based on the recorded position.
Switch on the circuit breaker (F10) for the TCUA control box on the DC PDU.
