TP48200A-DT19C1, TP48200A-DT19C2,

TP48200A-HT19C1 and TP48200A-HT19C2 Telecom

Power

User Manual

3.8 Sensor

Figure 3-19 shows the positions of all sensors in the TP48200A-DT19C1 & DT19C2 while

Figure 3-20 shows those for the TP48200A-HT19C1 & HT19C2.

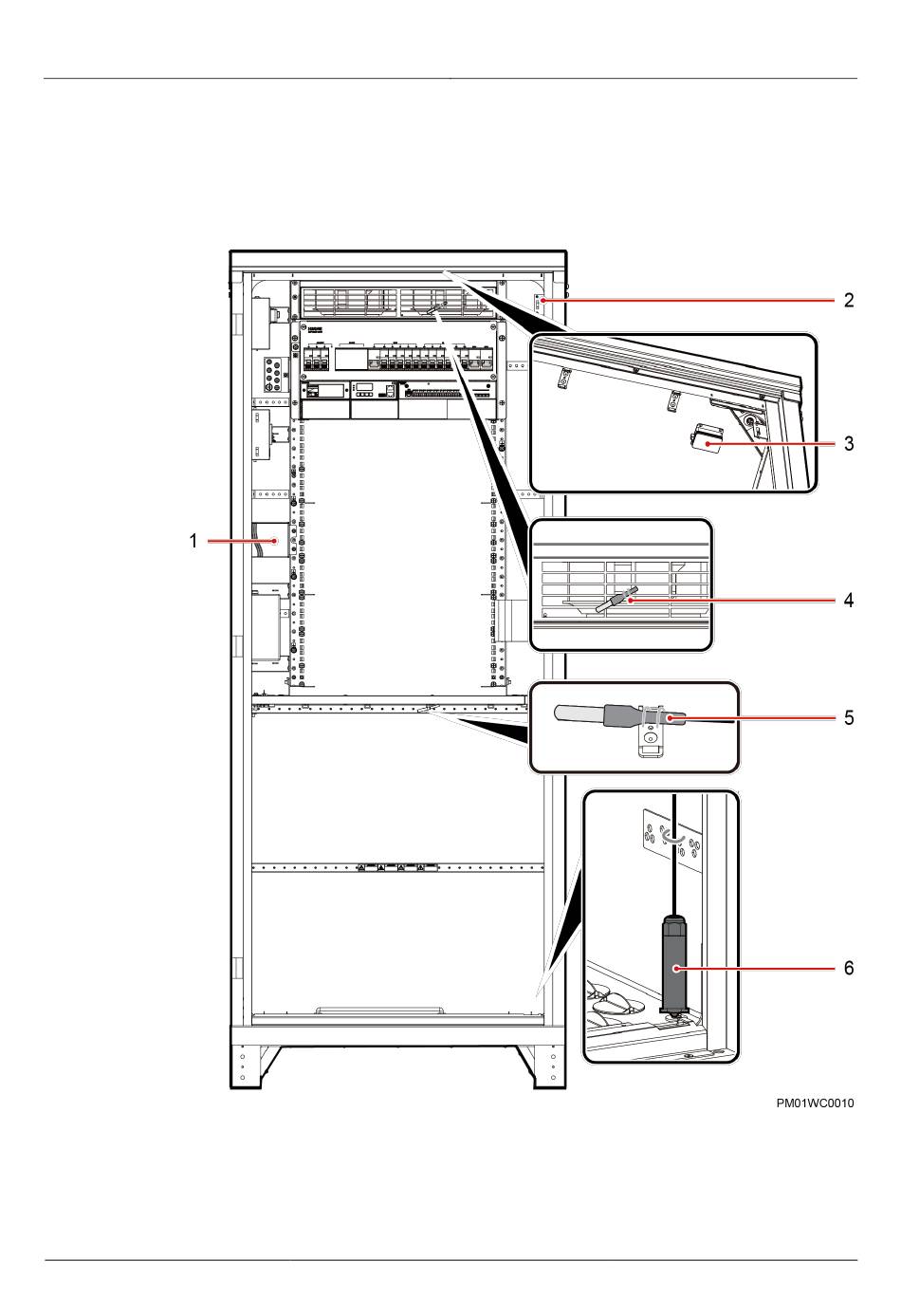

Figure 3-19 Sensors (TP48200A-DT19C1 & DT19C2)

(1) (Optional) Ambient temperature and

humidity sensor

Issue 03 (2019-11-15)

(2) Door status sensor

3 Components

(3) (Optional) Smoke

sensor
