TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
(16) Battery switch
TP48200A-HT19C1

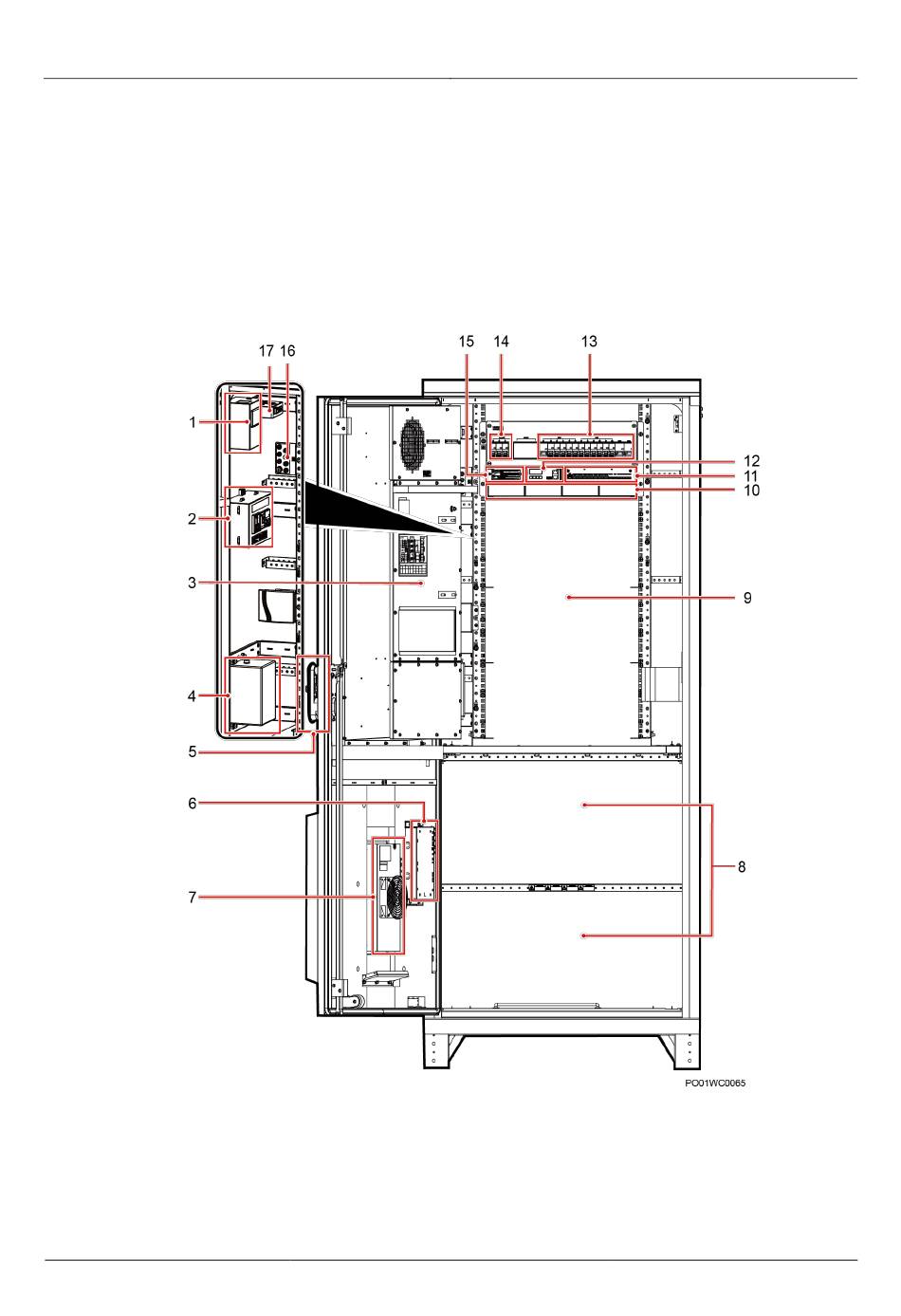

Figure 3-3 shows the TP48200A-HT19C1 interior.
Figure 3-3 TP48200A-HT19C1 interior
(1) (Optional) Intelligent
electric meter
(4) (Optional) Bluetooth
controller
Issue 03 (2019-11-15)
(17) Cabinet ground bar
(2) (Optional)
Maintenance socket
(5) (Optional) Electric
door lock
Copyright © Huawei Technologies Co., Ltd.
3 Components
(18) (Optional) Current
transformer
(3) Heat exchanger (HXC70S)
(6) TCUA control box
23
