TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
E

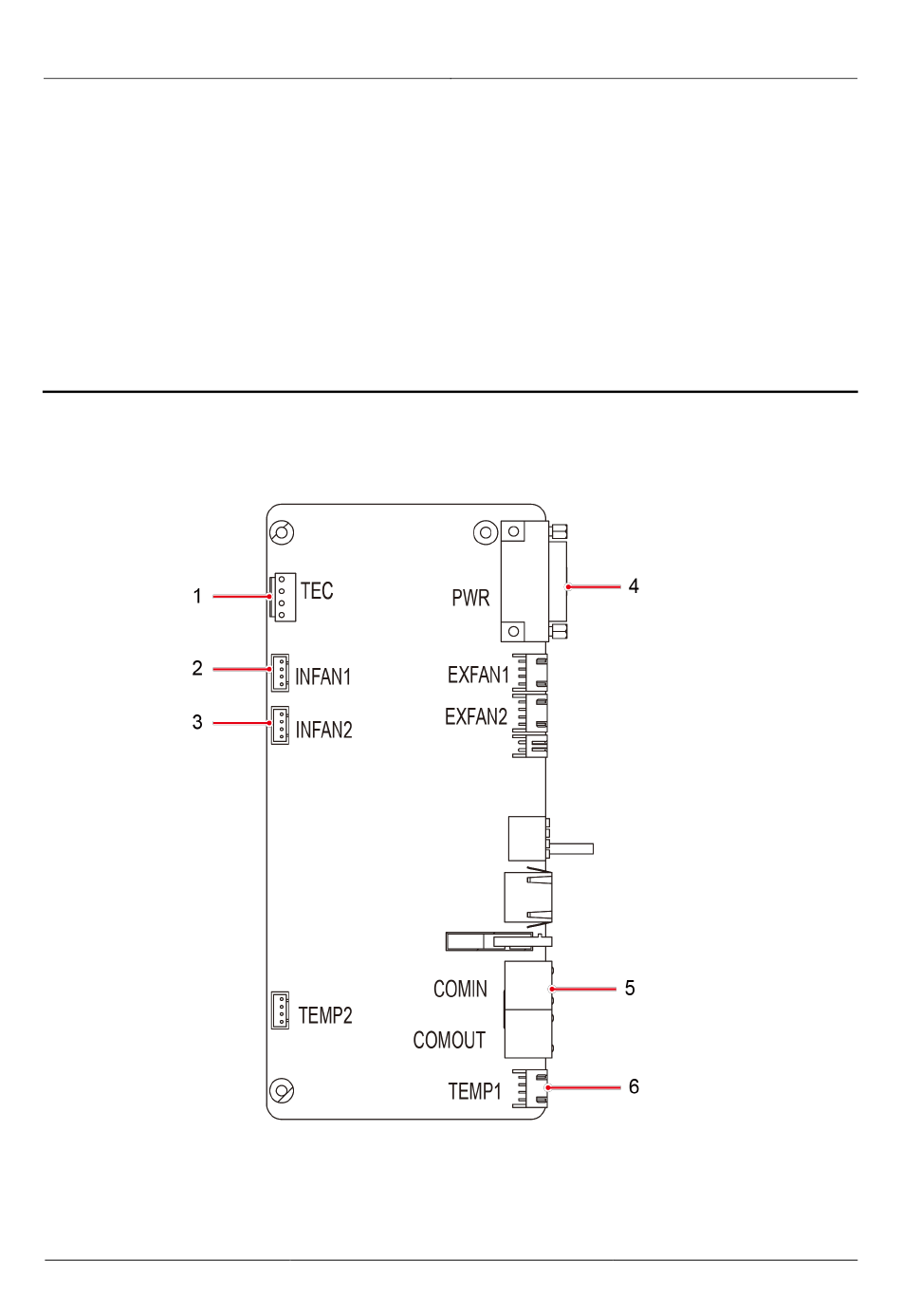

Figure E-1 Cables Connection of TCUA Control Board (TP48200A-DT19C1 & DT19C2)
(1) TEC refrigeration
chip port
Issue 03 (2019-11-15)
Cables Connection of TCUA Control
(2) TEC internal circulation
fan port
Copyright © Huawei Technologies Co., Ltd.
E Cables Connection of TCUA Control Board
(3) TEC external circulation
fan port
Board
104
