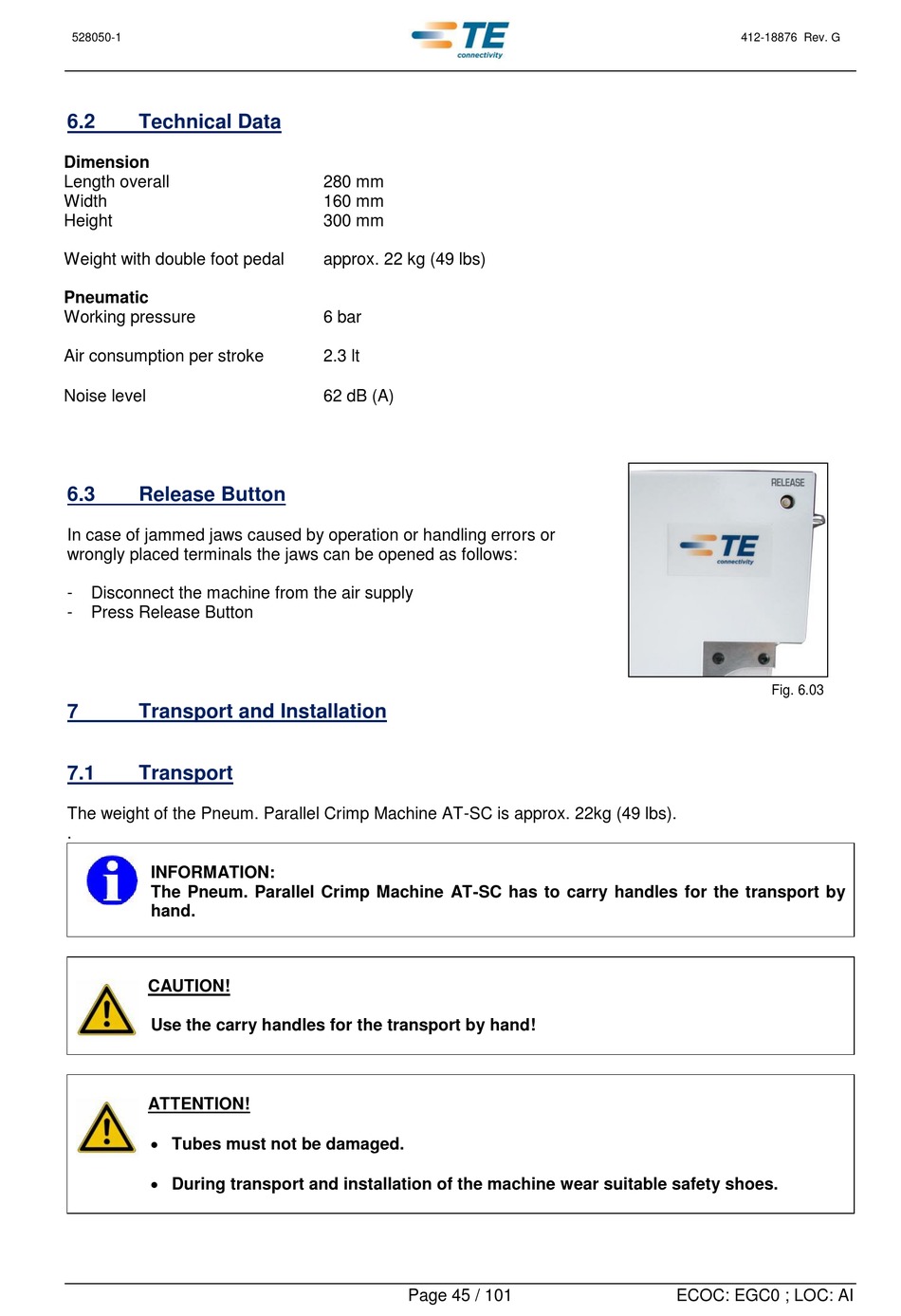

Technical Data; Release Button; Transport And Installation; Transport - TE Connectivity AT-SC Operating Instructions Manual

528050-1
6.2

Technical Data

Dimension
Length overall
Width
Height
Weight with double foot pedal
Pneumatic
Working pressure
Air consumption per stroke
Noise level
6.3

Release Button

In case of jammed jaws caused by operation or handling errors or
wrongly placed terminals the jaws can be opened as follows:
- Disconnect the machine from the air supply
- Press Release Button
7

Transport and Installation

7.1

Transport

The weight of the Pneum. Parallel Crimp Machine AT-SC is approx. 22kg (49 lbs).
.
INFORMATION:
The Pneum. Parallel Crimp Machine AT-SC has to carry handles for the transport by
hand.
CAUTION!
Use the carry handles for the transport by hand!
ATTENTION!
 Tubes must not be damaged.
 During transport and installation of the machine wear suitable safety shoes.
280 mm
160 mm
300 mm
approx. 22 kg (49 lbs)
6 bar
2.3 lt
62 dB (A)
Page 45 / 101
412-18876 Rev. G
Fig. 6.03
