3.5 Assembly Group Leg support
3.5.4 Multidirectional leg support

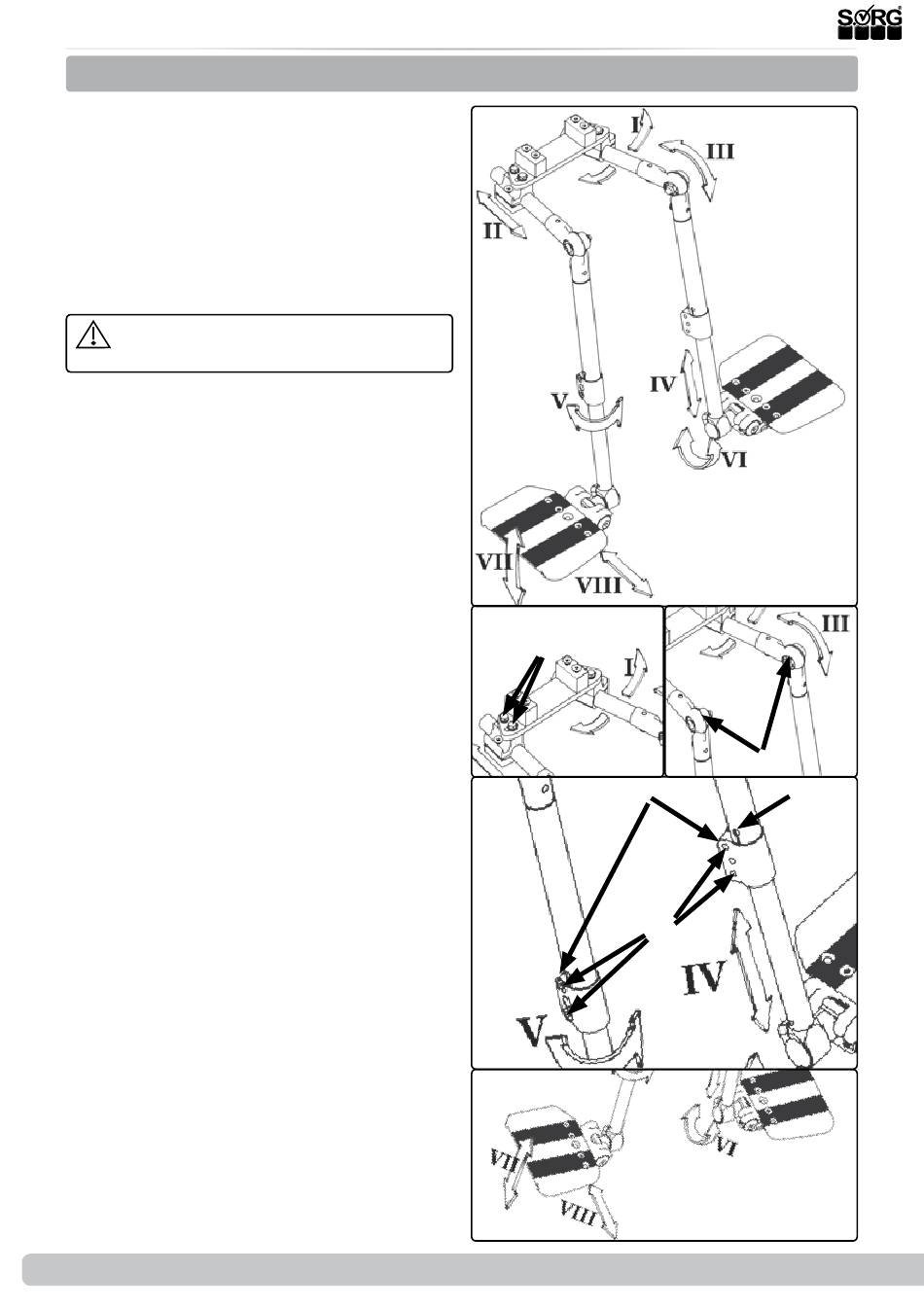

(1) Adjustment distance between foot and seat
plate
•
Loosen both star grip screws (A),
•
move the footplate (s) to the new posi-
tion
•
and tighten the star grip screws again.
The star grip screw allows flexible adjustment
(length compensation) of the USL at any time,
even when swiveling up the legrests.
After each change / setting on the USL,
the star grip screw must be absolutely tight.
For the following works:
•
Angle adjustment,
•
Squares,
•
depth adjustment
please proceed as already described.
The two legrests can be independently positi-
oned right and left independently.
(2) Adjusting the width of the legrest
•
Loosen the set screw (s) (A),
•
Pull / push the legrest support (B) out
of the holder (C) into the desired posi-
tion
•
and tighten the set screw(s) again.
Adjustment calf pad
•
(3) To adjust the angle of the calf rest
loosen the screw (A) and / or the screw
(B),
•
bring the calf rest to the desired positi-
on
•
and retighten the screw(s) (A) and / or
(B).
•
To move the calf rest holder (C), remove
the screw (B),
•
move the holder (C) into the desired
hole,
•
replace the screw (B)
•
and turn it tight.
•
To move the calf rest in its holder (C)
loosen both screws (D) (the second one
is not visible here),
•
move the calf rest to the desired positi-
on
•
and tighten the screw (D) again.
28 of 40
