I
Technical Data
I Cable Lengths
Baud Rate
125k baud
250k baud
500k baud

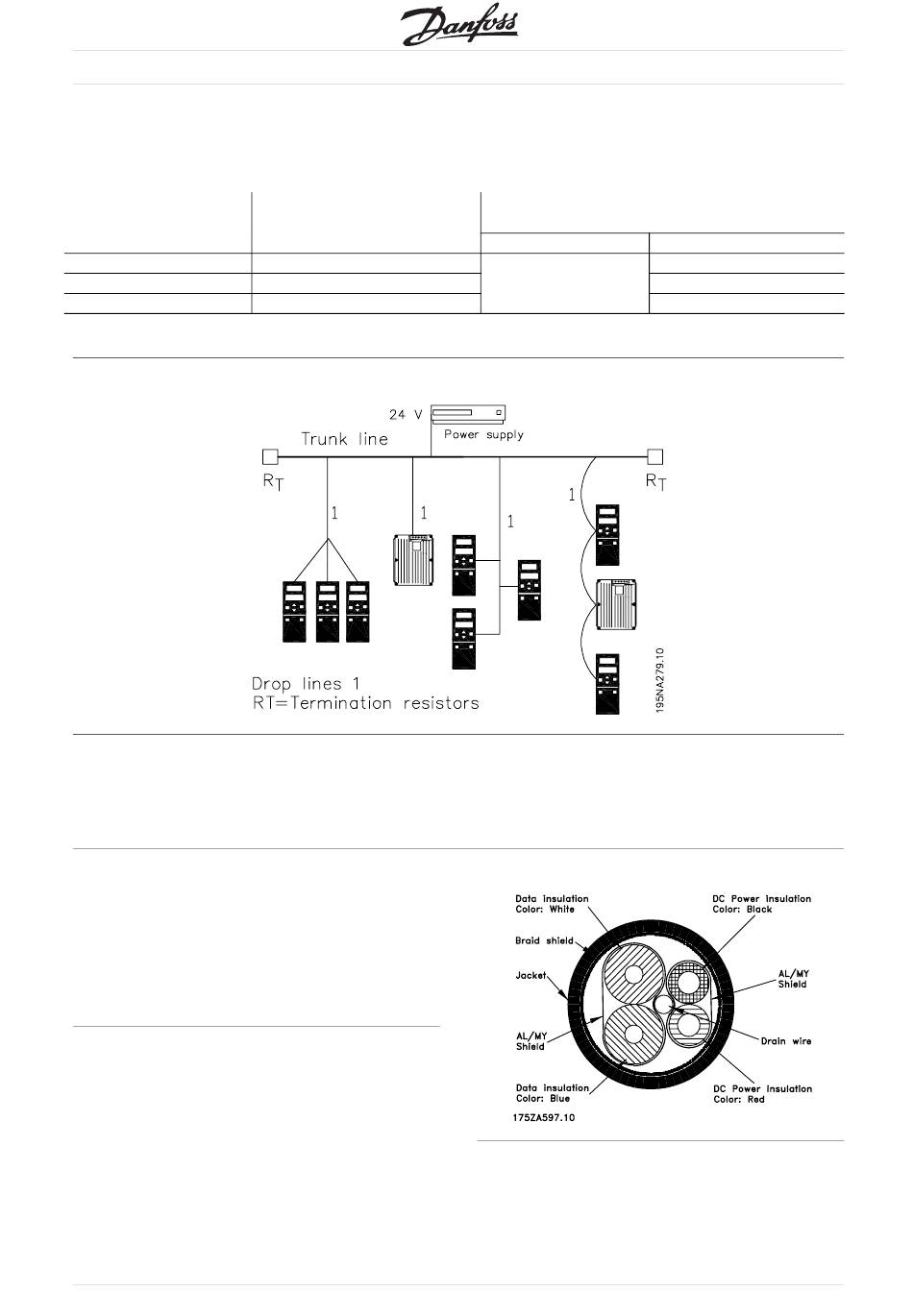

I Topology
I Cable Specifications
The cable is to be used according to ODVA
specifications.
I Network Power Supply
The DeviceNet option is an optically isolated node,
where transceiver power is provided by the network.
External network power supply requirements are:
11 - 25 VDC
10 mA draw per VLT frequency converter node.
6
Max. total cable length [m]
500 meters (1640 ft.)
250 meters (820 ft.)
100 meters (328 ft.)
®
VLT
2800 / FCD 300 DeviceNet
Drop Length
Maximum
6 meters (20 ft.)
for one drop
I Cable Cross Section
MG.90.B2.02 - VLT is a registered Danfoss trade mark
Cumulative
156 meters (512 ft.)
78 meters (256 ft.)
39 meters (128 ft.)
