Bus Reference Value; Actual Output Frequency - Danfoss VLT 2800 Manual

I Bus reference value
The frequency reference value is transmitted to
the VLT frequency converter in the form of a
16-bit word. The value is transmitted as a whole
number (-32767 ⇒ 32767). (Negative figures are
formatted by means of 2's complement.)

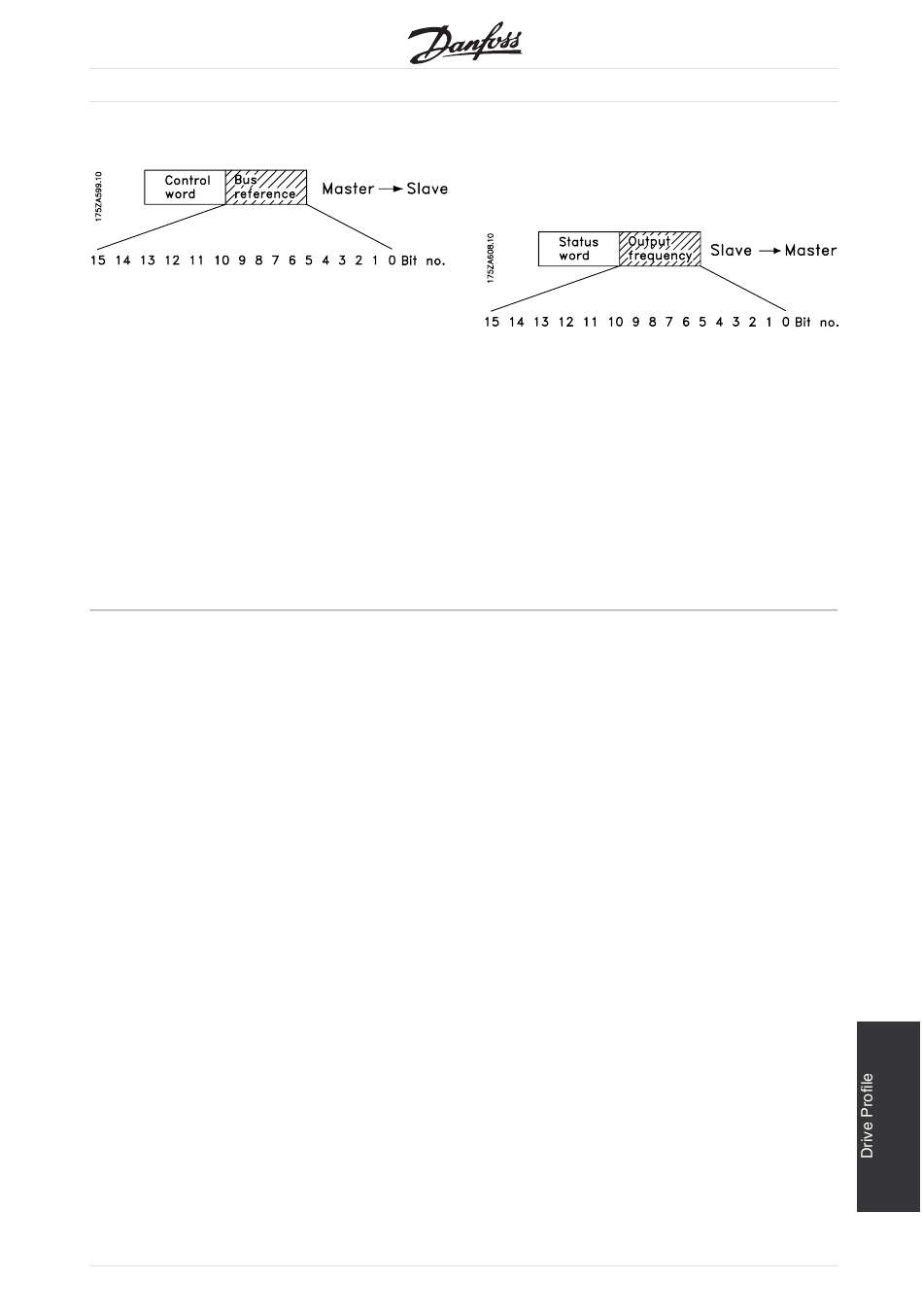

The bus reference has the following format:
Parameter 203 = "0" ["ref
0 ⇒ 16384 (4000 Hex) ~ 0 ⇒ 100% ~ "ref
Parameter 203 = "1" [- ref
- 16384 (C000 Hex) ⇒ + 16384 (4000 Hex) ~
- 100% ⇒ + 100% ~ - ref
MG.90.B2.02 - VLT is a registered Danfoss trade mark
⇒ ref
"]
MIN MAX
⇒ ref
MIN MAX
⇒ + ref
]
MAX MAX
⇒ + ref
MAX MAX
®
VLT 2800 / FCD 300 DeviceNet
I Actual output frequency
The value of the actual output frequency of the VLT
frequency converter, is transmitted in the form of a
16-bit word. The value is transmitted as a whole
number (-32767 ⇒ 32767) (Negative figures are
formed by means of 2's complement).
The actual output frequency has the following format:
-32767 ⇒ +32767.
-16384 (C000 Hex) corresponds to -100%, and
16384 (4000 Hex) corresponds to 100%.
