Input range 20mV to 2V.
Input resistance 5K
As an option each channel's input gain level can be automatically regulated
by an AGC circuit.
Loudspeaker mono output. 0.1 Watt/16 Ohm using a 3.5mm output jack (an
internal speaker is also available)

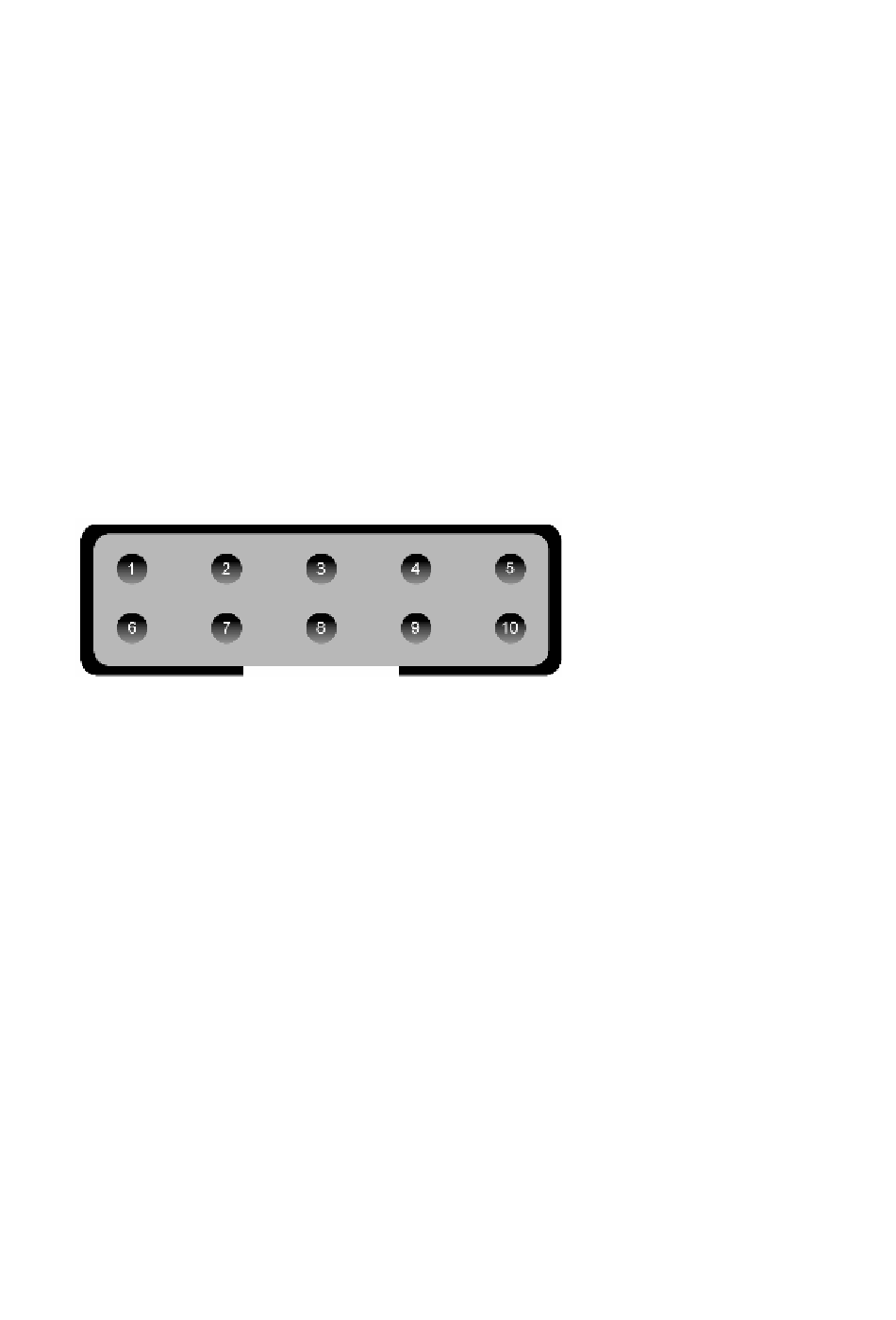

Start switches eight switches (or logical levels) can be connected to a 0.1"
pitch 10 pins ribbon cable connector. These can be used to optionally
start/stop recordings. The same connector can also be used as a serial port
interface (RXD/TXD).
1.
Start/Stop channel 1
2.
Start/Stop channel 3
3.
Start/Stop channel Ground or common connection for switches
4.
Start/Stop channel 5
5.
Start/Stop channel 7
6.
Start/Stop channel 2
7.
Start/Stop channel 4 / RXD
8.
Start/Stop channel
9.
Start/Stop channel 6
10.
Start/Stop channel 8
Power standard 5.5 mm power plug with - on outside ring and + pin on
inside.
Speech compression
Algorithm
G.711 A-law
G.711 µ-law
84
TXD
data-rate in bytes/sec
8000
8000
Call Recorder manual © Vidicode 2005
