Quick Guide for the V-Tap ISDN BRI

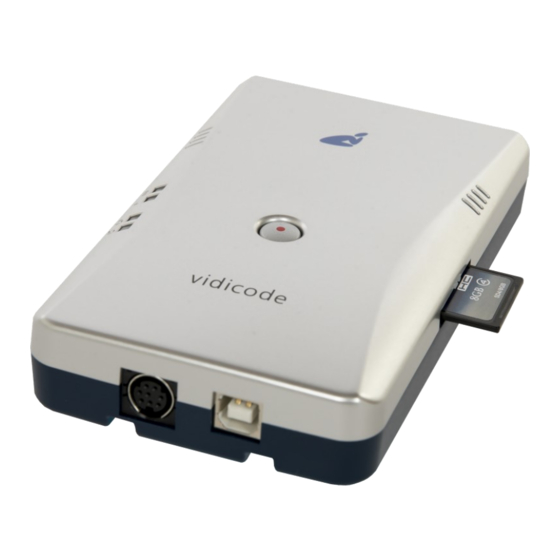

The V-Tap ISDN BRI is a device that can record the calls from an ISDN-2 line.

The recorded calls are stored onto an SD card and can optionally be sent to an external

server, which can be a

NOTE1: The USB power supply needs to deliver 500 mA current, else the system may not start.

NOTE2: The SD card must be formatted with the FAT32 file system. Cards above 32 GB (up to 2 TB)

are not tested and must be formatted as FAT32 first, before inserting them into the V-Tap.

• V-Tap ISDN BRI unit

• USB adapter

• USB cable

• ISDN cable with two RJ45 connectors

• SD card

• 1 year Support & Update license

• This Quick Guide

• Manual:

https://www.vidicode.com/download/v-tap-isdn-bri-manual-en/

• V-Archive PC software:

v1.14

Call Recorder Apresa

BOX CONTENT & DOWNLOADS

https://www.vidicode.com/download/v-archive/

or the

V-Archive software

running on a PC.

1/4

Table of Contents

Need help?

Do you have a question about the V-Tap ISDN BRI and is the answer not in the manual?

Page 1 Quick Guide for the V-Tap ISDN BRI The V-Tap ISDN BRI is a device that can record the calls from an ISDN-2 line. The recorded calls are stored onto an SD card and can optionally be sent to an external...
Page 2 Quick Guide for the V-Tap ISDN BRI HARDWARE INSTALLATION • Connect the ISDN phone with the V-Tap to ISDN port 1. • Connect the ISDN coming from the wall/PBX to ISDN port 2. • Optionally connect the network to port 3 or 4 for web access and/or Tunnel function.
Page 3 Quick Guide for the V-Tap ISDN BRI PC REQUIREMENTS FOR THE V-ARCHIVE SOFTWARE Windows Vista/7/8/10 , Intel Pentium >2GHz , 4GByte RAM , >100 MB free disk space. V-ARCHIVE SOFTWARE INSTALLATION • In the case that no CD is supplied, you can download V-Archive from here: www.vidicode.com/download/v-archive/...
Page 4 Quick Guide for the V-Tap ISDN BRI CHECKLIST FOR TUNNEL CONNECTION A connection between the V-Tap and the V-Archive PC software (or Apresa recorder) is needed to get the recorded data automatically into a user accessible database. The following checklist can be used to setup this Tunnel connection: 1) Install the Hardware (see page 2).
