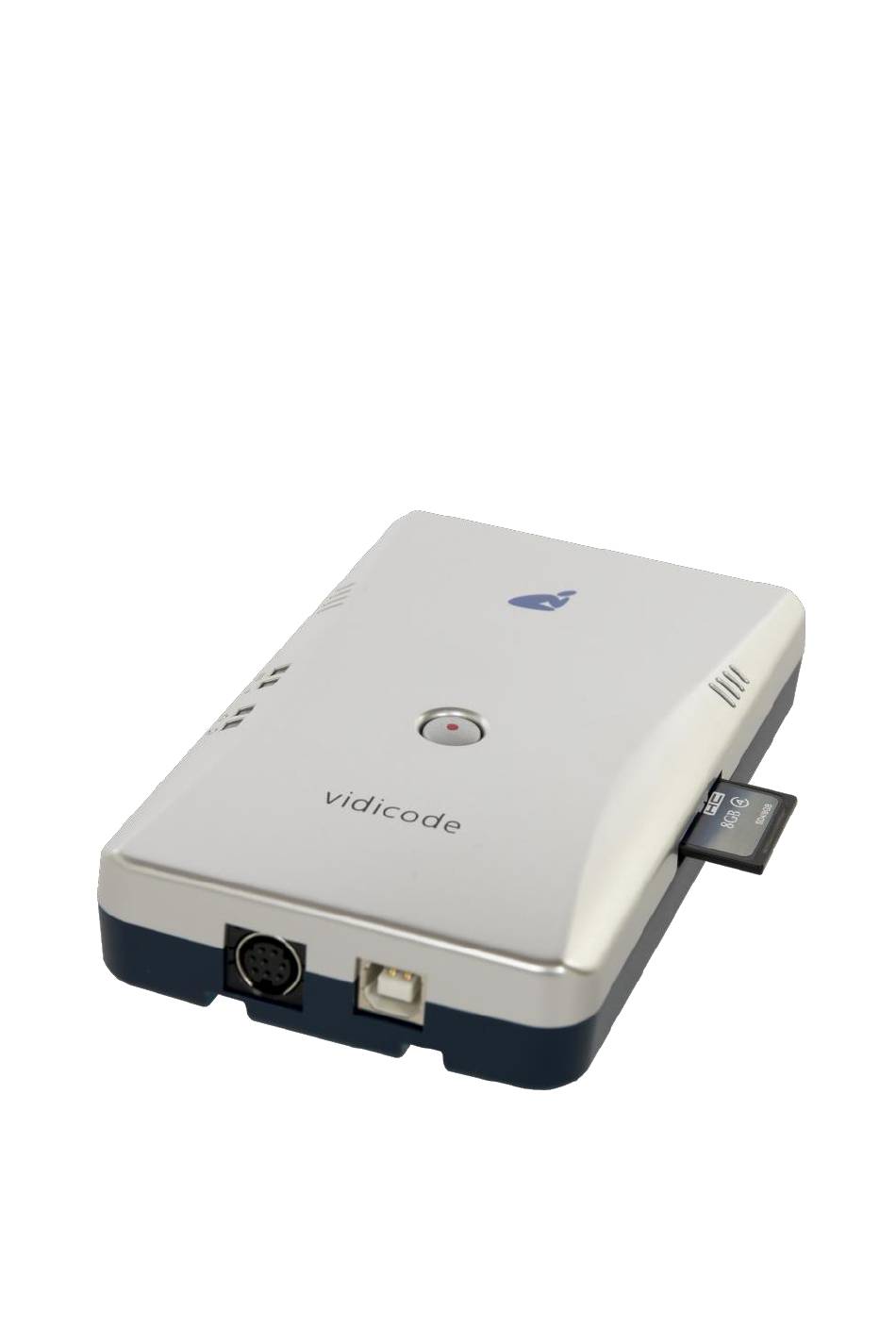

V-Tap ISDN PRI
Manual
v1.3
V-Tap ISDN PRI Manual EN v1.3 Okt 2018
© 2018 Vidicode
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-Tap ISDN PRI and is the answer not in the manual?

Questions and answers

Related Manuals for Vidicode V-Tap ISDN PRI

Summary of Contents for Vidicode V-Tap ISDN PRI

  • Page 1 V-Tap ISDN PRI Manual v1.3 V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 2: Table Of Contents

    ISDN PRI settings ..............23 3.3.9 SD Card settings ..............25 3.3.10 Special network settings ............. 27 3.3.11 App Special Flags ..............28 3.3.12 Licenses & Versions .............. 30 V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 3 Number-list (Black- or White-list) ........ 39 ISDN PRI RJ45 connectors & wiring ......40 Revision History ............41 Acknowledgements ..........42 10.1 Privacy ................42 10.2 Liability ................42 V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 4: Introduction

    Depending on whether a Tunnel has been defined or not, the files are sent over the network or can be read later by the CR-VoIP software. Note that the V-Tap ISDN PRI does not produce WAV files or store any data on the SD card without Recording Channel Licenses.

  • Page 5: Getting Started

    2 Getting started 2.1 Hardware installation The V-Tap ISDN PRI is easy to setup. The following steps are involved: • The jumpers inside must be set to the right mode; default on Sniff. • Connect the Trunk and PBX to the ISDN ports of the V-Tap.

  • Page 6: Sniff Mode Operation

    DTMF **. In Pass-Through mode, the V-Tap PRI can only be connected as In-Line. The 7 jumpers must be placed as follows for Pass-Through mode: V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 7: Parallel Connection

    The advantage of connecting In-Line is, that the V-Tap cannot be removed without notice, because the ISDN line will be interrupted when doing so. In-Line connection is shown below: V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 8: Software Installation

    System settings, Network tab and enable “V-Tap” as is shown below: NOTE1: Apresa’s IP address is the “Tunnel Server Address” in the V-Tap. NOTE2: Be sure the Encryption password is the same as in the V-Tap unit. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 9: Call Recorder Voip On The Pc

    NOTE4: The CR-VoIP software does not need licenses to receive from the V-Tap unit. The Call Recorder VoIP software for the PC has its own manual and is therefore further not described in this manual. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 10: Checklist For Tunnel Connection

    'tunneltrace.pcap' file can be read afterwards with Wireshark. 10) The SD card in the V-Tap should contain “.WAV” files. The SD card can be read by the PC software in menu File and ‘Import from V-Tap’. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 11: Web Interface And Settings

    Show IP address. It is also possible to set a new fixed IP address or enable DHCP for the see next page cable by using an SD card: ( V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 12: Web Interface

    Login button and the Settings menu appears ( on the next page (The settings on the next page are not the default settings, but just an example.) V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 13 By pressing the Save & Logout button, the settings are sent to the V-Tap unit. Any ongoing recording is stopped, the file on SD card is closed, and after a few seconds the new settings are activated. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 14: Settings

    The default mask is “255.255.255.0”. In case DHCP is used, the mask is automatically obtained. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 15 The default DNS address 8.8.8.8 is the Google Public DNS, but the Gateway must be defined also before this address is reachable. In case DHCP is used, the DNS address is automatically obtained. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 16: Tunnel Settings

    The Source Port also has an important role in the Tunnel protocol. The default number 0 selects randomly a port number between 49152 and 65535. This range of port numbers is recommended by IANA to be used for dynamic ports. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 17 Apresa or CR-VoIP software, must use the same password. Leaving the password empty is still doing the encryption but is less secure. The single and double quotation marks (‘ and “) cannot be used ! V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 18: Wi-Fi Settings

    The Wi-Fi module can be disabled completely by turning the Wi-Fi Access Point option off in the settings AND the Tunnel AP fields must be left empty. When disabled, all access must be done with a LAN cable. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 19: Ftp & Web Settings

    By default, the FTP Port is on 21 for normal FTP access. The PC tool ‘vcUpdater’ uses FTP to update the firmware of the V- Tap. This tool can be found on the Vidicode website in the menu Service and Support => Firmware.

  • Page 20: Telnet Setting

    The command ATDTEST jumps to the D-channel trace facility. The ISDN D-channel is outputted and can be captured and interpreted for debug purposes. Recording is not possible during this mode. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 21: Ntp Settings

    The time correction in minutes to the GMT (Greenwich Mean Time) zone. The number can start with the minus sign when needed. For example, enter “-300” for Eastern Time (that is -5 hours for east- coast US & Canada). V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 22: Date & Time Settings

    For the time, the entered format must be hour, minutes and seconds, separated by the colon-sign and always 8 characters long in total. The new date and time are set after pressing Save & Logout. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 23: Isdn Pri Settings

    Pass-Through mode the wiring in the cables must be right. In other words, when the local and remote phone numbers are reversed in the database software, this parameter can be enabled. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 24 +32 = Disable action from call that are in the numberlist. +64 = DTMF is detected from the remote side, else local side. After start-recording, the notification is played (NOTIFY.WAV). After stop-recording, the system beeps are played (BEEPS.WAV). V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 25: Sd Card Settings

    . Press the button for 2 seconds (Amber & Blue LED OFF). . Release the button (Amber LED flashing). . Take out the SD card or the USB cable (power off). V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 26 It is an option to delete files after the content was sent to a Tunnel server. A certain risk is taken then, because data cannot be recovered anymore after deletion. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 27: Special Network Settings

    The values 18 and 50 can be used for fast and faster sending. MAC Address The Media Access Control (MAC) address of the device is a unique identifier to communicate over an Ethernet network. The address cannot be changed. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 28: App Special Flags

    = Disable CRC-4 Multi-frame on the ISDN-E1 line. ".IA<num> = Transmitter Amplification 1-255 (default 100). ".IS<num> = Receiver Sensitivity 1-255 (default 96). 1024 enables AGC. ".IB<sec>" = Notification Beep interval in seconds, using "NBEEP.WAV". V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...
  • Page 29 Then ".DT" must be removed from the App Special Flags and the settings must be saved again. Then DTEST.TXT can be downloaded with ftp. Recording is not possible when a D-channel trace is active! V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 30: Licenses & Versions

    V-Tap ISDN PRI OS Version V-Tap ISDN PRI App Version V-Tap ISDN PRI Serial Number Firmware versions and the serial number are shown for information purposes only and cannot be changed. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 31: Led's

    PC. • Red LED steady ON plus Amber steady ON. This can happen as soon as a call starts, and the system has no Recording Channel Licenses. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 32: Green Link Led

    The link to the Tunnel server is OK. Green LED OFF. • The only normal situation with the Green LED OFF is, when no Tunnel server is defined in the settings. 4.3 Blue Data LED V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 33: Amber Sd-Power Led

    Amber LED blinking fast (Red LED ON): SD card ERROR. • A read- or write-error happened on the SD card or the SD card is not usable by the system. The card must be removed and checked. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 34: Button Functions

    NOTE: When the Blue LED is not blinking, then no recording is busy, so no data is written, in which case the SD card can just be taken out. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 35: Enable Dhcp Temporary

    When no Green or Blue is blinking at all in between Green going OFF-ON, it means the zero digit. • After the last digit, the system waits 5 seconds and then continues normal operation. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 36: Factory Settings

    Power On and hold the button pressed for 1 second. • Release the button. • The IP address is now on default 192.168.55.66 • Only access with FTP is now possible (no web interface). V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 37: Firmware Update

    When the system is accessible through FTP, the firmware can be updated with the PC tool ‘vcUpdater’. This tool can be found on the Vidicode website in the menu Service and Support > Firmware. Another way to update is by using an SD card as follows: - The manufacturer must provide the necessary files first.

  • Page 38: Notification & System Messages

    Then the system reboots and the new messages are used. 2. With FTP: Connect to the V-Tap with FTP and upload your .WAV file(s). V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 39: Number-List (Black- Or White-List)

    • It is also possible to enter the last (right-most) digits only of each number. But then, all entries must have the same length! • The wildcard character “*” can be used to denote a range (79347*). V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 40: Isdn Pri Rj45 Connectors & Wiring

    PBX. It has shown that this is also the situation for many other countries. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 41: Revision History

    Page numbers on the right side & changes in the text. • Recording Licenses removed. v1.1 July 2018 • Small changes in the text. v1.0 April 2018 • First release. V-Tap ISDN PRI Manual EN v1.3 Okt 2018 © 2018 Vidicode...

  • Page 42: Acknowledgements

    Call Recorder. Vidicode is not a source of official interpretation of laws of any country or state and shall not be construed as a source for making decisions whether to provide notification or not.
