3 – Managing Fabrics
Zoning a Fabric

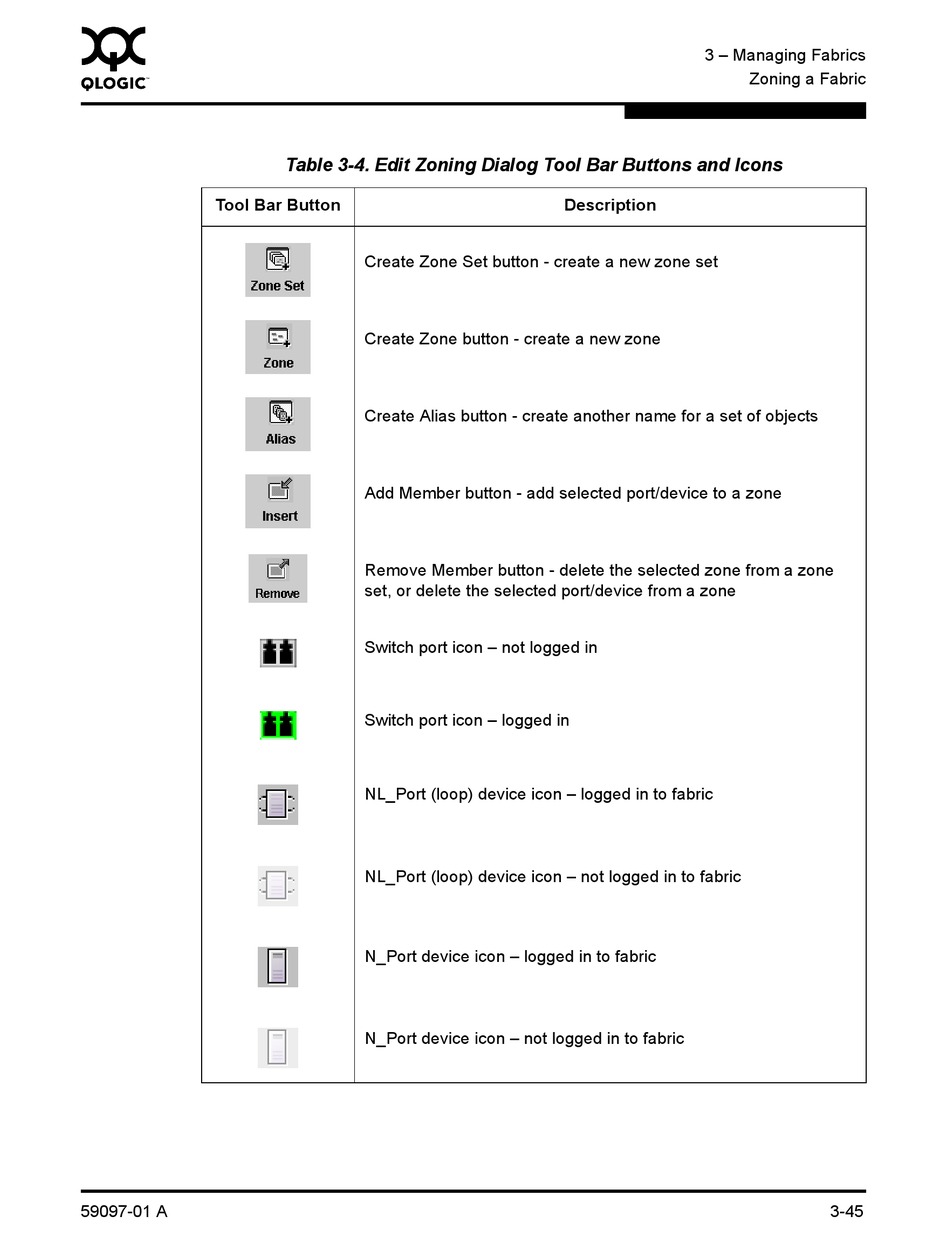

Table 3-4. Edit Zoning Dialog Tool Bar Buttons and Icons
Tool Bar Button Description
Create Zone Set button - create a new zone set
Create Zone button - create a new zone
Create Alias button - create another name for a set of objects
Add Member button - add selected port/device to a zone
Remove Member button - delete the selected zone from a zone
set, or delete the selected port/device from a zone
Switch port icon – not logged in
Switch port icon – logged in
NL_Port (loop) device icon – logged in to fabric
NL_Port (loop) device icon – not logged in to fabric
N_Port device icon – logged in to fabric
N_Port device icon – not logged in to fabric
59097-01 A 3-45
