Page 1: Sanbox 5602 Fibre Channel Switch
S i m p l i f y SANbox 5602 Fibre Channel Switch Installation Guide Firmware Version 5.0 59096-01 A Page i...
Page 2: Document Revision History
QLogic Corporation reserves the right to change product specifications at any time without notice. Applications described in this document for any of these products are for illustrative purposes only. QLogic Corporation makes no representation nor warranty that such applications are suitable for the specified use without further testing or modification.
Page 3: Table Of Contents
Table of Contents Section 1 Introduction Intended Audience ..................... 1-1 Related Materials ....................1-2 New in this Release.................... 1-2 Safety Notices ....................1-3 Sicherheitshinweise.................... 1-3 Notes informatives relatives à la sécurité............1-3 Communications Statements................1-4 1.7.1 Federal Communications Commission (FCC) Class A Statement .... 1-4 1.7.2 Canadian Department of Communications Class A Compliance Statement ................
Page 4 SANbox 5602 Fibre Channel Switch Installation Guide Section 2 General Description Chassis Controls and LEDs ................2-2 2.1.1 Maintenance Button................... 2-2 2.1.1.1 Resetting a Switch ................2-2 2.1.1.2 Placing the Switch in Maintenance Mode ......... 2-3 2.1.2 Chassis LEDs .................... 2-3 2.1.2.1...
Page 5 SANbox 5602 Fibre Channel Switch Installation Guide Multiple Chassis Fabrics ..................3-6 3.5.1 Optimizing Device Performance ..............3-7 3.5.2 Domain ID, Principal Priority, and Domain ID Lock ........3-8 3.5.3 Stacking ..................... 3-9 3.5.4 Common Topologies................3-11 3.5.4.1 Cascade Topology ................3-11 3.5.4.2...
Page 6 SANbox 5602 Fibre Channel Switch Installation Guide Upgrading the SANbox 5602 Switch ..............4-26 Powering Down a Switch.................. 4-26 Section 5 Diagnostics/Troubleshooting Chassis Diagnostics ................... 5-1 5.1.1 Input Power LED Is Extinguished .............. 5-2 5.1.2 System Fault LED Is Illuminated ............... 5-2 Power-On Self Test Diagnostics.................
Page 7 SANbox 5602 Fibre Channel Switch Installation Guide Appendix B Command Line Interface Logging On to a Switch ..................B-1 User Accounts ....................B-2 Working with Switch Configurations ..............B-2 B.3.1 Modifying a Configuration................B-3 B.3.2 Backing up and Restoring Switch Configurations........B-4 Commands ......................B-6 Admin Command..................B-8 Alias Command ..................B-9...
Page 8 SANbox 5602 Fibre Channel Switch Installation Guide Show Perf Command ................B-113 Show Setup Command................B-116 Shutdown Command ................B-120 Test Command ..................B-121 Uptime Command..................B-124 User Command ..................B-125 Whoami Command................B-128 Zone Command..................B-129 Zoneset Command ................B-133 Zoning Command ..................B-135 Glossary Index Page viii...
Page 9 SANbox 5602 Fibre Channel Switch Installation Guide Figures Figure Page SANbox 5602 Fibre Channel Switch................2-1 Chassis Controls and LEDS................... 2-2 Chassis LEDs......................... 2-3 Fibre Channel Ports ....................... 2-5 Port LEDs........................2-6 Ethernet Port ........................2-8 Serial Port and Pin Identification ..................2-9 Power Supplies ......................
Page 10 SANbox 5602 Fibre Channel Switch Installation Guide Tables Table Page Serial Port Pin Identification ................... 2-9 Zoning Database Limits ....................3-2 Port-to-Port Latency ....................... 3-5 Management Workstation Requirements............... 4-1 Command-Line Completion ...................B-6 Commands Listed by Authority Level................B-7 CIM Listener Configuration Parameters...............B-12 CIM Subscription Configuration Parameters..............B-14...
Page 11: Introduction
Appendix B describes the Telnet command line interface. Please read the communications statements and laser safety information later in this section. Use this manual with the SANbox 5602 Switch Management User’s Guide. Intended Audience This manual introduces users to the switch and explains its installation and service.
Page 12: Related Materials
The following manuals and materials are referenced in the text and/or provide additional information. SANbox 5602 Switch Management User’s Guide, publication number 59097-01. QLogic Switch Interoperability Guide v3.0. This PDF document can be downloaded at http://www.qlogic.com/interopguide/info.asp#inter. Fibre Channel-Arbitrated Loop (FC-AL-2) Rev. 6.8. Fibre Channel-10-bit Interface Rev. 2.3.
Page 13: Safety Notices
1 – Introduction Safety Notices Safety Notices A Warning notice indicates the presence of a hazard that has the potential of causing personal injury. 4-3, 4-18, A Caution notice indicates the presence of a hazard that has the potential of causing damage to the equipment.
Page 14: Communications Statements
1 – Introduction Communications Statements Communications Statements The following statements apply to this product. The statements for other products intended for use with this product appear in their accompanying manuals. 1.7.1 Federal Communications Commission (FCC) Class A Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 15: Avis De Conformité Aux Normes Du Ministère Des Communications Du Canada
1 – Introduction Communications Statements 1.7.3 Avis de conformité aux normes du ministère des Communications du Canada Cet équipement ne dépasse pas les limites de Classe A d'émission de bruits radioélectriques por les appareils numériques, telles que prescrites par le Réglement sur le brouillage radioélectrique établi par le ministère des Communications du Canada.
Page 16: Vcci Class A Statement
1 – Introduction Laser Safety Information 1.7.5 VCCI Class A Statement This is a Class A product based on the standard of the Voluntary Control Council For Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
Page 17: Accessible Parts
1 – Introduction Accessible Parts 1.10 Accessible Parts The Field Replaceable Units (FRUs) for the SANbox 5602 switch are the following: Power supplies Small Form-Factor Pluggable (SFP) optical transceivers XPAK optical transceivers 1.11 Pièces Accessibles Les pièces remplaçables, Field Replaceable Units (FRU), du commutateur...
Page 18: General Public License
1.13 General Public License QLogic® Fibre Channel switches are powered by the Linux operating system. A machine-readable copy of the Linux source code is available upon written request to the following address. A nominal fee will be charged for reproduction, shipping, and handling costs in accordance with the General Public License.
Page 19: Terms And Conditions For Copying, Distribution And Modification
1 – Introduction General Public License We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software.
Page 20 1 – Introduction General Public License modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms...
Page 21 1 – Introduction General Public License Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;...
Page 22 1 – Introduction General Public License rights granted herein. You are not responsible for enforcing compliance by third parties to this License. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
Page 23: How To Apply These Terms To Your New Programs
1 – Introduction General Public License License, you may choose any version ever published by the Free Software Foundation. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission.
Page 24 1 – Introduction General Public License one line to give the program's name and an idea of what it does. Copyright (C) yyyy name of author This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation;...
Page 25: Technical Support
1.14.1 Availability QLogic Technical Support is available from 7:00 AM to 7:00 PM Central Standard Time, Monday through Friday, excluding QLogic-observed holidays. 1.14.2 Training QLogic offers certification training for the technical professional for both the SANblade™...
Page 26 1 – Introduction Technical Support Notes 1-16 59096-01 A...
Page 27 Section 2 General Description This section describes the features and capabilities of the SANbox 5602 Fibre Channel switch. The following topics are described: Chassis Controls and LEDs Fibre Channel Ports Ethernet Port Serial Port Power Supplies and Fans Switch Management Fabrics are managed with the SANsurfer Switch Manager™...
Page 28: General Description Chassis Controls And Leds
2 – General Description Chassis Controls and LEDs Chassis Controls and LEDs The Maintenance button shown in Figure 2-2 is the only chassis control and is used to reset a switch or to recover a disabled switch. The chassis LEDs provide information about the switch’s operational status.
Page 29: Placing The Switch In Maintenance Mode
2 – General Description Chassis Controls and LEDs 2.1.1.2 Placing the Switch in Maintenance Mode To place the switch in maintenance mode, do the following: Isolate the switch from the fabric. Press and hold the Maintenance button with a pointed tool. When the Heartbeat LED alone is illuminated, release the button.
Page 30: Input Power Led (Green)
2 – General Description Chassis Controls and LEDs 2.1.2.1 Input Power LED (Green) The Input Power LED indicates the voltage status at the switch logic circuitry. During normal operation, this LED illuminates to indicate that the switch logic circuitry is receiving the proper DC voltages. When the switch is in maintenance mode, this LED is extinguished.
Page 31: Fibre Channel Ports
12 13 14 15 Figure 2-4. Fibre Channel Ports The SANbox 5602 switch comes from the factory as an 8-, 12-, 16-, or 20-port switch, enabling ports 0–7, 0–11, 0–15, or 0–19 respectively. You can upgrade the SANbox 5602 switch to enable additional ports up to the 20-port maximum through the purchase of a license key.
Page 32: Port Leds
2 – General Description Fibre Channel Ports 2.2.1 Port LEDs Each port has its own Logged-In LED (L) and Activity LED (A) as shown in Figure 2-5. Logged-In Activity LED Logged-In Activity LED LED (Green) (Green) LED (Green) (Green) 1-Gbps/2-Gbps Ports 10-Gbps Ports Figure 2-5.
Page 33: Transceivers
(N_Port). An F_Port supports a single public device. E_Ports enable you to expand the fabric by connecting SANbox 5602 switches. SANbox 5602 switches self-discover all inter-switch connections. Refer to “Multiple Chassis Fabrics” on page 3-6 for more information about multiple chassis fabrics.
Page 34: Ethernet Port
2 – General Description Ethernet Port Ethernet Port The Ethernet port shown in Figure 2-6 is an RJ-45 connector that provides a connection to a management workstation through a 10/100 Base-T Ethernet cable. A management workstation can be a Windows®, Solaris™, or a Linux® workstation that is used to configure and manage the switch fabric.
Page 35: Serial Port
2 – General Description Serial Port Serial Port The SANbox 5602 switch is equipped with an RS-232 serial port for maintenance purposes. The serial port location is shown in Figure 2-7. You can manage the switch through the serial port using the CLI.
Page 36: Power Supplies And Fans
2 – General Description Power Supplies and Fans Power Supplies and Fans The power supplies convert 100 – 240 VAC to DC voltages for the various switch circuits. Each power supply has an AC power receptacle and two status LEDs as shown in Figure 2-8:...
Page 37: Switch Management
Ethernet port of one or more switches and can provide in-band management for all other switches in the fabric. Refer to the SANbox 5602 Switch Management User’s Guide for information about the SANsurfer Switch Manager application and its use.
Page 38: Command Line Interface
SANsurfer Switch Manager Application Programming Interface The SANsurfer Switch Manager API enables an application provider to build a management application for QLogic switches. The library is implemented in ANSI standard C, relying only on standard POSIX run-time libraries. Contact your distributor or authorized reseller for information about the SANsurfer Switch Manager API.
Page 39: Planning
Section 3 Planning Consider the following when planning a fabric: Devices Device Access Performance Feature Licensing Multiple Chassis Fabrics Switch Services Fabric Security Fabric Management Devices When planning a fabric, consider the number of public devices and the anticipated demand. This will determine the number of ports that are needed and in turn the number of switches.
Page 40: Device Access
Membership in a zone can be defined by switch domain ID and port number, port Fibre Channel address, or by device worldwide name (WWN). Devices can communicate only with devices within the same zone. The SANbox 5602 switch supports both hard and soft zones. A zone can be a member of more than one zone set.
Page 41: Soft Zones
3 – Planning Device Access 3.2.1 Soft Zones Soft zoning divides the fabric for purposes of controlling device discovery. Devices in the same soft zone automatically discover and communicate freely with all other members of the same zone. The soft zone boundary is not secure; traffic across soft zones can occur if addressed correctly.
Page 42: Performance
Performance Performance The SANbox 5602 switch supports class 2 and class 3 Fibre Channel service at transmission rates of 1-, 2-, 4-, or 10-Gbps with a maximum frame size of 2148 bytes. A 1-Gbps/2-Gbps port adapts its transmission speed to match that of the device to which it is connected prior to login when the connected device powers up.
Page 43: Bandwidth
3 – Planning Performance You can configure recipient and donor ports using the SANsurfer Switch Manager application or the Set Config command. Refer to “Set Config Command” on page B-61 for more information. 3.3.2 Bandwidth Bandwidth is a measure of the volume of data that can be transmitted at a given transmission rate.
Page 44: Feature Licensing
Feature Licensing Feature Licensing The SANbox 5602 switch can come from the factory as an 8-, 12-, 16-, or 20-port switch, enabling ports 0–7, 0–11, 0–15, or 0–19 respectively. Ports 16–19 are 10-Gbps ports. You can upgrade the SANbox 5602 switch to enable additional ports up to the 20-port maximum.
Page 45: Optimizing Device Performance
Storage applications such as video distribution, medical record storage/retrieval or real-time data acquisition can have specific latency or bandwidth requirements. The SANbox 5602 switch provides the lowest latency of any product in its class. Refer to “Performance” on page 3-4 for information about latency.
Page 46: Domain Id, Principal Priority, And Domain Id Lock
1, the domain ID lock set to False, and the principal priority set to 254. Refer to the SANbox 5602 Switch Management User’s Guide for information about changing the domain ID and domain ID lock using SANsurfer Switch Manager.
Page 47: Stacking
Multiple Chassis Fabrics 3.5.3 Stacking You can connect up to four 20-port SANbox 5602 switches together through the 10-Gbps ports, thus preserving the user ports for devices. This is called stacking. The following 2-, 3-, and 4-switch stacking configurations are recommended for best performance and redundancy.
Page 48 3 – Planning Multiple Chassis Fabrics A four-switch stack uses three 3-inch and three 9-inch XPAK switch stacking cables as shown in Figure 3-3. 64 1-Gbps/2-Gbps ports are available for devices. Figure 3-3. Four-Switch Stack 3-10 59096-01 A...
Page 49: Common Topologies
3 – Planning Multiple Chassis Fabrics 3.5.4 Common Topologies The SANbox 5602 switch supports the following topologies using the 1-Gbps/2-Gbps Fibre Channel ports: Cascade Mesh Multistage® 3.5.4.1 Cascade Topology A cascade topology describes a fabric in which the switches are connected in series.
Page 50: Mesh Topology
3.5.4.2 Mesh Topology A mesh topology describes a fabric in which each chassis has at least one port directly connected to each other chassis in the fabric. Using 16-port SANbox 5602 switches the mesh fabric shown in Figure 3-5 has the following characteristics: Each link contributes up to 425 MB of bandwidth between switches, 850 MB in full duplex.
Page 51: Multistage Topology
Multiple Chassis Fabrics 3.5.4.3 Multistage Topology A Multistage topology describes a fabric in which two or more edge switches connect to one or more core switches. Using 16-port SANbox 5602 switches, the Multistage fabric shown in Figure 3-6 has the following characteristics: Each link contributes up to 425 MB of bandwidth between chassis.
Page 52: Switch Services
3 – Planning Switch Services Switch Services You can configure your switch to suit the demands of your environment by enabling or disabling a variety of switch services. Familiarize yourself with the following switch services and determine which ones you need: Telnet: Provides for the management of the switch over a Telnet connection.
Page 53: Fabric Security
3 – Planning Fabric Security Network Time Protocol (NTP): Provides for the synchronizing of switch and workstation dates and times with an NTP server. This helps to prevent invalid SSL certificates and timestamp confusion in the event log. The default is disabled. Common Information Model (CIM): Provides for the management of the switch through third-party applications that use CIM.
Page 54: Connection Security
3 – Planning Fabric Security 3.7.1 Connection Security Connection security provides an encrypted data path for switch management methods. The switch supports the Secure Shell (SSH) protocol for the command line interface and the Secure Socket Layer (SSL) protocol for management applications such as SANsurfer Switch Manager and Common Information Module (CIM).
Page 55: Device Security
3 – Planning Fabric Security 3.7.2 Device Security Device security provides for the authorization and authentication of devices that you attach to a switch. You can configure a switch with a group of devices against which the switch authorizes new attachments by devices, other switches, or devices issuing management server commands.
Page 56: Security Example: Switches And Hbas
3 – Planning Fabric Security 3.7.2.1 Security Example: Switches and HBAs Consider the fabric shown in Figure 3-7. In this fabric, Switch_1, HBA_1, and Switch_2 support security while the JBOD and HBA_2 do not. The objective is to secure F_Ports and E_Ports in the fabric. To do this, configure security on the devices that support security: Switch_1, Switch_2, and HBA_1.
Page 57 3 – Planning Fabric Security You must specify HBAs by node worldwide name. Switches can be specified by port or node worldwide name. The type of switch worldwide name you use in the switch security database must be the same as that in the HBA security database. For example, if you specify a switch with a port worldwide name in the switch security database, you must also specify that switch in the HBA security database with the same port worldwide name.
Page 58 3 – Planning Fabric Security Configure security on Switch_2. Create a security set (Security_Set_2) on Switch_2. Create a port group (Group_Port_2) in Security_Set_2. HBA_2 is the only member because HBA_2 does not support authentication. Port Group on Switch_2: Group_Port_2 HBA_2 Node WWN: 10:00:00:c0:dd:07:e3:4c Authentication: None Binding: None...
Page 59: Security Example: Radius Server
3 – Planning Fabric Security 3.7.2.2 Security Example: RADIUS Server Consider the fabric shown in Figure 3-8. This fabric is similar to the one shown in Figure 3-7 with the addition of Radius_1 acting as a RADIUS server. Authorization and authentication is passed from the switch to Radius_1 in the following cases: HBA_1 login to Switch_1 Switch_1 login to Switch_2 Switch_2 login to Switch_1...
Page 60 3 – Planning Fabric Security Configure the Radius_1 host as a RADIUS server on Switch_1 and Switch_2 to authenticate device logins. Specify the server IP address and the secret with which the switches will authenticate with the server. Configure the switches so that devices authenticate through the switches only if the RADIUS server is unavailable.
Page 61 3 – Planning Fabric Security You must specify HBAs by node worldwide name. Switches can be specified by port or node worldwide name. The type of switch worldwide name you use in the switch security database must be the same as that in the HBA security database. For example, if you specify a switch with a port worldwide name in the switch security database, you must also specify that switch in the HBA security database with the same port worldwide name.
Page 62 3 – Planning Fabric Security Configure security on Switch_2. Create a security set (Security_Set_2) on Switch_2. Create a port group (Group_Port_2) in Security_Set_2. HBA_2 is the only member because HBA_2 does not support authentication. Port Group on Switch_2: Group_Port_2 HBA_2 Node WWN: 10:00:00:c0:dd:07:e3:4c Authentication: None Binding: None...
Page 63: Security Example: Host Authentication
3 – Planning Fabric Security 3.7.2.3 Security Example: Host Authentication Consider the fabric shown in Figure 3-9. In this fabric, only Switch_2 and HBA_2/APP_2 support security, where APP_2 is a host application. The objective is to secure the management server on Switch_2 from unauthorized access by an HBA or an associated host application.
Page 64 3 – Planning Fabric Security Create a security set (Security_Set_2) on Switch_2. Create a Management Server group (Group_1) in Security_Set_2 with Switch_2 and HBA_2 or APP_2 as its member. You must specify HBAs by node worldwide name. Switches can be specified by port or node worldwide name.
Page 65: User Account Security
3 – Planning Fabric Security 3.7.3 User Account Security User account security consists of the administration of account names, passwords, expiration date, and authority level. If an account has Admin authority, all management tasks can be performed by that account in both SANsurfer Switch Manager™...
Page 66: Fabric Management
3 – Planning Fabric Management Fabric Management The SANsurfer Switch Manager application and CLI execute on a management workstation that provides for the configuration, control, and maintenance of multiple fabrics. Supported platforms include Windows, Solaris, and Linux. The application can be installed and executed on the workstation, or you can run the SANsurfer Switch Manager web applet that is resident on the switch.
Page 67: Installation
Section 4 Installation This section describes how to install and configure the SANbox 5602 switch. It also describes how to load new firmware and how to recover a disabled switch. Site Requirements Consider the following items when installing a SANbox 5602 switch:...
Page 68: Switch Power Requirements
The switch requires the following operating conditions: Operating temperature range: 5 – 40°C (41 – 104°F) Relative humidity: 15 – 80%, non-condensing Installing a Switch Unpack the switch and accessories. The SANbox 5602 product is shipped with the components shown in Figure 4-1:...
Page 69: Mount The Switch
4 – Installation Installing a Switch Installing a SANbox 5602 switch involves the following steps: Mount the switch. Install transceivers. Connect the management workstation to the switch. Configure the management workstation. Install the management application. Start the management application. Connect the switch to the AC power source.
Page 70: Install Transceivers
4 – Installation Installing a Switch CAUTION! If the switch is mounted in a closed or multi-unit rack assembly, make sure that the operating temperature inside the rack enclosure does not exceed the maximum rated ambient temperature. Refer to “Environmental” on page A-4.
Page 71 4 – Installation Installing a Switch Figure 4-2. Removing 10-Gbps Port Covers To install XPAK switch stacking cables, position the cable connectors with the circuit board toward the mid line of the respective switch faceplates as shown in Figure 4-3. When installing the 3-inch XPAK switch stacking cable, insert the cable connectors into the 10-Gbps ports at the same time.
Page 72: Connect The Workstation To The Switch
4 – Installation Installing a Switch 4.2.3 Connect the Workstation to the Switch You can manage the switch using SANsurfer Switch Manager or the command line interface. SANsurfer Switch Manager requires an Ethernet connection to the switch. The command line interface can use an Ethernet connection or a serial connection.
Page 73: Configure The Workstation
4 – Installation Installing a Switch 4.2.4 Configure the Workstation If you plan to use the command line interface to configure and manage the switch, you must configure the workstation. This involves setting the workstation IP address for Ethernet connections, or configuring the workstation serial port. If you plan to use SANsurfer Switch Manager to manage the switch, the Configuration Wizard manages the workstation IP address for you –...
Page 74: Configuring The Workstation Serial Port
4 – Installation Installing a Switch 4.2.4.2 Configuring the Workstation Serial Port To configure the workstation serial port, do the following: Connect a null modem F/F DB9 cable from a COM port on the management workstation to the RS-232 serial port on the switch. Configure the workstation serial port according to your platform: For Windows: Open the HyperTerminal application.
Page 75: Install The Management Application
“SANsurfer Management Suite” on page 4-11 for instructions on how to install and upgrade SANsurfer Management Suite. Refer to the SANbox 5602 Switch Management User’s Guide for more information about using, exiting, and uninstalling SANsurfer Management Suite and SANsurfer Switch Manager.
Page 76 4 – Installation Installing a Switch For a Linux platform: Open the CD and run the installation program with the following path: data/files/Management_Software/Linux/Linux_5.00.xx.xx.bin If there is no CD-ROM icon, do the following: Open an xterm or other terminal window. Mount the CD-ROM. From a shell prompt, enter the following: mount /mnt/cdrom Change directory to the location of the install program: cd /mnt/cdrom/data/files/Management_Software/Linux...
Page 77: Sansurfer Management Suite
4 – Installation Installing a Switch 4.2.5.2 SANsurfer Management Suite The following instructions describe how to install SANsurfer Management Suite and upgrade SANsurfer Switch Manager. You can install SANsurfer Management Suite (SMS) on a Windows, Linux, or Solaris workstation. Choose the instructions for your workstation: SMS Installation for Windows SMS Installation for Linux...
Page 78 When prompted for the location in which to create the program icons, click the In an Existing Group radio button, then specify the same group that was used for the SMS installation. The default SMS group is "QLogic Management Suite". Click the Next button.
Page 79: Sms Installation For Linux
4 – Installation Installing a Switch 4.2.5.2.2 SMS Installation for Linux Close all programs currently running, and insert the SANsurfer Management Suite Installation Disk into the management workstation CD-ROM drive. If a file browser dialog opens showing icons for the contents of the CD-ROM, double-click the Start_Here.htm file to open the SANsurfer Management Suite start page.
Page 80 About ... and make note of the release version number. Close SANsurfer Management Suite. To ensure that you are using the most recent version of SANsurfer Switch Manager, visit the QLogic support web page and go to Drivers, Software and Manuals.
Page 81: Sms Installation For Solaris
4 – Installation Installing a Switch 4.2.5.2.3 SMS Installation for Solaris To install the SANsurfer Switch Manager application on Solaris from the SANsurfer Management Suite CD-ROM, do the following: Insert the SANsurfer Management Suite Disk into the management workstation CD-ROM drive. If the SANsurfer Management Suite start page does not open in your default browser, do the following: Right-click the Workspace Menu.
Page 82: Start Sansurfer Switch Manager
4 – Installation Installing a Switch To ensure that you are using the most recent version of SANsurfer Switch Manager, visit the QLogic support web page and go to Drivers, Software and Manuals. Select your switch model from the pull-down menu. Locate the description for SANsurfer Switch Manager for Linux under "Management Software".
Page 83 4 – Installation Installing a Switch To start SANsurfer Switch Manager as a standalone application, do the following. Start the SANsurfer Switch Manager using one of the following methods: For Windows, double-click the SANsurfer Switch Manager shortcut, or select SANsurfer Switch Manager from Start menu, depending on how you installed the SANsurfer Switch Manager application.
Page 84: Connect The Switch To Ac Power
4 – Installation Installing a Switch 4.2.7 Connect the Switch to AC Power WARNING!! This product is supplied with a 3-wire power cable and plug for the user’s safety. Use this power cable in conjunction with a properly grounded outlet to avoid electrical shock. An electrical outlet that is not correctly wired could place hazardous voltage on metal parts of the switch chassis.
Page 85 4 – Installation Installing a Switch WARNUNG!! Dieses Produkt wird mit einem 3-adrigen Netzkabel mit Stecker geliefert. Dieses Kabel erfüllt die Sicherheitsanforderungen und sollte an einer vorschriftsmäßigen Schukosteckdose angeschlossen werden, um die Gefahr eines elektrischen Schlages zu vermeiden.Elektrosteckdosen, die nicht richtig verdrahtet sind, können gefährliche Hochspannung an den Metallteilen des switch-Gehäuses verursachen.
Page 86: Configure The Switch
4 – Installation Installing a Switch The Heartbeat LED indicates the results of the POST. The POST tests the condition of firmware, memories, data-paths, and switch logic circuitry. If the Heartbeat LED blinks steadily about once per second, the POST was successful, and you can continue with the installation process.
Page 87 4 – Installation Installing a Switch To configure the switch using the command line interface, do the following: Open a command window according to the type of workstation and connection: Ethernet (all platforms): Open a Telnet session with the default switch IP address and log in to the switch with default account name and password (admin/password).
Page 88: Cable Devices To The Switch
4 – Installation Install Firmware 4.2.9 Cable Devices to the Switch Connect cables to the SFP transceivers and their corresponding devices, and then energize the devices. Device host bus adapters can have SFP (or SFF) transceivers or GigaBit Interface Converters (GBIC). LC-type duplex fiber optic cable connectors are designed for SFP transceivers, while SC-type connectors are designed for GBICs.
Page 89: Using Sansurfer Switch Manager To Install Firmware
4 – Installation Install Firmware 4.3.1 Using SANsurfer Switch Manager to Install Firmware To install firmware using SANsurfer Switch Manager, do the following: Select a switch in the topology display and double-click to open the Faceplate display. Open the Switch menu and select Load Firmware. In the Firmware Upload window, click the Select button to browse and select the firmware file to be uploaded.
Page 90: Using The Cli To Install Firmware
4 – Installation Install Firmware 4.3.2 Using the CLI to Install Firmware To install firmware using the CLI when a File Transfer Protocol (FTP) server is present on the management workstation, use the Firmware Install command. Refer to the “Firmware Install Command” on page B-24 for more information.
Page 91: Upgrading The Sanbox 5602 Switch
Upgrading the SANbox 5602 Switch Upgrading the SANbox 5602 Switch The SANbox 5602 product can come from the factory as an 8-, 12-, 16-, or 20-port switch capable of 1-, 2-, and 10-Gbps port speeds. Ports 0–15 are capable of 1-Gbps/2-Gbps;...
Page 92 4 – Installation Powering Down a Switch Notes 4-26 59096-01 A...
Page 93 Section 5 Diagnostics/Troubleshooting Diagnostic information about the switch is available through the chassis LEDs and the port LEDs. Diagnostic information is also available through the SANsurfer Switch Manager and CLI event logs and error displays. This section describes the following types of diagnostics: Chassis Diagnostics describes the Input Power LED and System Fault LED indications.
Page 94: Diagnostics/Troubleshooting Chassis Diagnostics
5 – Diagnostics/Troubleshooting Chassis Diagnostics 5.1.1 Input Power LED Is Extinguished The Input Power LED illuminates to indicate that the switch logic circuitry is receiving proper voltages. If the Input Power LED is extinguished, do the following: Inspect the power cords and connectors. Is the cord unplugged? Is the cord or connector damaged? Yes - Make necessary corrections or repairs.
Page 95: Power-On Self Test Diagnostics
5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Power-On Self Test Diagnostics The switch performs a series of tests as part of its power-up procedure. The POST diagnostic program performs the following tests: Checksum tests on the boot firmware in PROM and the switch firmware in flash memory Internal data loopback test on all ports Access and integrity test on the ASIC...
Page 96: Internal Firmware Failure Blink Pattern
5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics 5.2.1.1 Internal Firmware Failure Blink Pattern An internal firmware failure blink pattern is 2 blinks followed by a two second pause. The 2-blink error pattern indicates that the firmware has failed, and that the switch must be reset.
Page 97 5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Place the switch in maintenance mode. Press and hold the Maintenance button for 2–7 seconds. Refer to “Recovering a Switch” on page 5-12 more information about placing the switch in maintenance mode. Establish a Telnet session using the default IP address 10.0.0.1. telnet 10.0.0.1 Enter the account name (prom) and password (prom), and press the Enter key.
Page 98: Over Temperature Blink Pattern
5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Establish communications with the switch using Telnet. Enter one of the following on the command line: telnet xxx.xxx.xxx.xxx telnet switchname where xxx.xxx.xxx.xxx is the switch IP address and switchname is the switch name associated with the IP address. A Telnet window opens prompting you for a login.
Page 99: Logged-In Led Indications
5 – Diagnostics/Troubleshooting Power-On Self Test Diagnostics Observe the air flow direction from both power supplies. Are they the same? Yes - Continue. No - Determine the proper air flow direction for the switch. Replace the power supply with the incorrect air flow direction with another having the correct air flow direction.
Page 100: E_Port Isolation
Conflicting timeout values Conflicting zone membership between active zone sets Refer to the SANbox 5602 Switch Management User’s Guide for information about how to change domain IDs, timeout values, and edit zoning. Review the event browser and do the following to diagnose and correct an...
Page 101: Excessive Port Errors
CRC errors Decode errors ISL connection count Login errors Logout errors Loss-of-signal errors Port threshold alarm monitoring is disabled by default. Refer to the SANbox 5602 Switch Management User’s Guide for information about managing port threshold alarms. 59096-01 A...
Page 102 SFP. Refer to the “Test Command” on page B-121 or the SANbox 5602 Switch Management User’s Guide for information about testing ports. Does the port pass the test? Yes - Continue No - Replace the SFP and repeat the test. If the port does not pass the test, contact your authorized maintenance provider.
Page 103: Power Supply Diagnostics
5 – Diagnostics/Troubleshooting Power Supply Diagnostics Power Supply Diagnostics A power supply has a Status LED (Green) and a Fault LED (Amber) as shown in Figure 5-3. Under normal operating conditions, the Power Supply Status LED is illuminated and the Power Supply Fault LED is extinguished. Power Supply Fault LED Power Supply...
Page 104: Recovering A Switch
5 – Diagnostics/Troubleshooting Recovering a Switch Recovering a Switch A switch can become inoperable or unmanageable for the following reasons: Firmware becomes corrupt IP address is lost Switch configuration becomes corrupt Forgotten password In these specific cases, you can recover the switch using maintenance mode. Maintenance mode temporarily returns the switch IP address to 10.0.0.1 and provides opportunities to do the following: Unpack a firmware image file...
Page 105: Maintenance - Exit
5 – Diagnostics/Troubleshooting Recovering a Switch The maintenance menu displays several recovery options. To select a switch recovery option, press the corresponding number (displayed in option: field) on the keyboard and press the Enter key. Exit Image Unpack Reset Network Config Reset User Accounts to Default Copy Log Files Remove Switch Config...
Page 106: Maintenance - Reset Network Config
5 – Diagnostics/Troubleshooting Recovering a Switch Select option 1 from the maintenance menu. When prompted for a file name prompt, enter the firmware image file name. Image filename: filename Unpacking ’filename’, please wait... Unpackage successful. Select option 7 to reset the switch and exit maintenance mode. 5.4.3 Maintenance –...
Page 107: Maintenance - Reset Switch
5 – Diagnostics/Troubleshooting Recovering a Switch 5.4.8 Maintenance – Reset Switch This option closes the Telnet session, exits maintenance mode and reboots the switch using the current switch configuration. All unpacked firmware image files that reside on the switch are deleted. 5.4.9 Maintenance –...
Page 108 5 – Diagnostics/Troubleshooting Recovering a Switch Notes 5-16 59096-01 A...
Page 109 Section 6 Removal/Replacement This section describes the removal and replacement procedures for the following field replaceable units (FRU): SFP transceivers Power supplies The switch is equipped with a battery that powers the non-volatile memory. This memory stores the switch configuration. The battery is not a field replaceable unit. WARNING!! Danger of explosion if battery is incorrectly replaced.
Page 110: Sfp Transceiver Removal And Replacement
6 – y Removal/Replacement SFP Transceiver Removal and Replacement SFP Transceiver Removal and Replacement The SFP transceivers can be removed and replaced while the switch is operating without damaging the switch or the transceiver. However, transmission on the affected port will be interrupted until the transceiver installed. To remove a transceiver, gently press the transceiver into the port to release the tension, then pull on the release tab or lever and remove the transceiver.
Page 111 6 – y Removal/Replacement Power Supply Removal and Replacement To remove a power supply, unplug the power supply and loosen the two knurled fasteners with a cross-head screw driver as shown in Figure 6-1. Grasp the power supply handle and pull firmly to disengage the modular connector. Slide the power supply out of its bay.
Page 112 6 – y Removal/Replacement Power Supply Removal and Replacement Notes 59096-01 A...
Page 113: Appendix A Specifications
Appendix A Specifications This appendix contains the specifications for the SANbox 5602 Fibre Channel switch. Refer to Section 2 General Description for the location of all connections, switches, controls, and components. Fabric Specifications Fibre Channel Protocols ....FC-PH Rev. 4.3...
Page 114 A – Specifications Fabric Specifications Number of Fibre Channel Ports ..Variable and can be upgraded in the following configurations: 8 1-Gbps/2-Gbps FC ports 12 1-Gbps/2-Gbps FC ports 16 1-Gbps/2-Gbps FC ports 16 1-Gbps/2-Gbps FC ports plus 10-Gbps FC ports Scalability........
Page 115: Maintainability
A – Specifications Maintainability Maintainability Diagnostics ........Power-On Self Test (POST) tests all functional components except SFP transceivers. Port tests include online, internal, and external tests. User Interface ......... LED indicators Field Replaceable Units Power supplies Fabric Management Management Methods ....SANsurfer Switch Manager Graphical User Interface Application Programming Interface Command Line Interface...
Page 116: Electrical
A – Specifications Electrical Electrical Operating voltage ......100 to 240 VAC; 50 to 60 Hz Power source loading (maximum) .. 1 A at 120 VAC 0.5 A at 240 VAC Heat Output (maximum) ....100 watts Circuit Protection ......Internally fused Environmental Temperature Operating ........
Page 117: Regulatory Certifications
A – Specifications Regulatory Certifications Regulatory Certifications Safety Standards ......UL60950:2000 CSA 22.2 No. 60950-00 (Canada) EN60950:2000 (EC) CB Scheme-IEC 60950:1999 Emissions Standards ...... FCC Part 15B Class A ICES-03 Issue 3 VCCI Class A ITE CISPR 22, Class A EN 55022, Class A Voltage Fluctuations .......
Page 118 A – Specifications Regulatory Certifications Notes 59096-01 A...
Page 119: Logging On To A Switch
Appendix B Command Line Interface The command line interface (CLI) enables you to perform a variety of fabric and switch management tasks through an Ethernet or a serial port connection. This section describes the following: Logging On to a Switch User Accounts Working with Switch Configurations Commands...
Page 120: User Accounts
B – Command Line Interface User Accounts User Accounts Switches come from the factory with the following user account already defined: Account name: admin Password: password Authority: Admin This user account provides full access to the switch and its configuration. After planning your fabric management needs and creating your own user accounts, consider changing the password for this account.
Page 121: Modifying A Configuration
B – Command Line Interface Working with Switch Configurations B.3.1 Modifying a Configuration A switch supports up to 10 configurations including the default configuration. Each switch configuration contains switch, port, port threshold alarm, and zoning configuration components. The Show Switch command displays the name of the active configuration.
Page 122: Backing Up And Restoring Switch Configurations
B – Command Line Interface Working with Switch Configurations B.3.2 Backing up and Restoring Switch Configurations Backing up and restoring a configuration is useful to protect your work or for use as a template in configuring other switches. The Config Backup command creates a file on the switch, named configdata.
Page 123 B – Command Line Interface Working with Switch Configurations The restore operation begins with FTP to upload the configuration file from the workstation to the switch, then finishes with a Telnet session and the Config Restore command. To upload the configuration file, config_switch_169_10112003 in this case, open and FTP session with account name images and password images.
Page 124: Commands
B – Command Line Interface Commands Commands The command syntax is as follows: command keyword keyword [value] keyword [value1] [value2] The Command is followed by one or more keywords. Consider the following rules and conventions: Commands and keywords are case insensitive. Required keyword values appear in standard font: [value].
Page 125 B – Command Line Interface Commands The command set performs monitoring and configuration tasks. Commands related to monitoring tasks are available to all account names. Commands related to configuration tasks are available only within an admin session. An account must have Admin authority to enter the Admin Start command, which opens an admin session.
Page 126: Admin Command
B – Command Line Interface Admin Command Admin Command Opens and closes an Admin session. The Admin session provides commands that change the fabric and switch configurations. Only one Admin session can be open on the switch at any time. An inactive Admin session will time out after a period of time which can be changed using the Set Setup System command.
Page 127: Alias Command
B – Command Line Interface Alias Command Alias Command Creates a named set of ports/devices. Aliases make it easier to assign a set of ports/devices to many zones. An alias can not have a zone or another alias as a member.
Page 128: Alias Command
B – Command Line Interface Alias Command members [alias] Displays all members of the alias given by [alias]. This keyword does not require an admin session. remove [alias] [member_list] Removes the ports/devices given by [member_list] from the alias given by [alias]. Use a <space>...
Page 129: Cim Command
B – Command Line Interface CIM Command CIM Command Manages CIM listener and subscription configurations on the switch. Refer to the “CIMListener Command” on page B-12 for information about creating and modifying CIM listeners. Refer to the “CIMSubscription Command” on page B-14 for information about creating and modifying CIM subscriptions.
Page 130: Cimlistener Command
B – Command Line Interface CIMListener Command CIMListener Command Configures CIM indication service listeners and adds subscriptions to listeners. Refer to the “CIMSubscription Command” on page B-14 for information about configuring subscriptions. Authority Admin session and a CIM Edit session. Refer to the “CIM Command”...
Page 131 B – Command Line Interface CIMListener Command Examples The following is an example of the CIMListener Create command: SB5602-91.54 (admin-cim) #> cimlistener create listener_1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 132 B – Command Line Interface CIMSubscription Command CIMSubscription Command Creates, edits, or removes CIM subscriptions. Authority Admin session and a CIM Edit session. Refer to the “CIM Command” on page B-11 for information about opening a CIM edit session. Syntax cimsubscription create [subscription_name] delete [subscription_name]...
Page 133 B – Command Line Interface CIMSubscription Command Examples The following is an example of the CIMSubscription Create command: SANbox (admin-cim) #> cimsubscription create subscription_1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 134: Config Command
B – Command Line Interface Config Command Config Command Manages the Fibre Channel configurations on a switch. For information about setting the port and switch configurations, refer to the “Set Config Command” on page B-61. Authority Admin session for all keywords except List Syntax config activate [config_name]...
Page 135 B – Command Line Interface Config Command restore Restores configuration settings to an out-of-band switch from a backup file named configdata, which must be first uploaded on the switch using FTP. You create the backup file using the Config Backup command. Use FTP to load the backup file on a switch, then enter the Config Restore command.
Page 136 B – Command Line Interface Config Command The following is an example of how to create a backup file (configdata) and download the file to the workstation. SANbox #> admin start SANbox (admin) #> config backup SANbox (admin) #> admin end SANbox #>...
Page 137: Create Command
B – Command Line Interface Create Command Create Command Creates support files for troubleshooting switch problems, and certificates for secure communications for SANsurfer Switch Manager. Authority Admin session Syntax create certificate support Keywords certificate Creates a security certificate on the switch. The security certificate is required to establish an SSL connection with a management application such as SANsurfer Switch Manager.
Page 138 B – Command Line Interface Create Command Examples The following is an example of the Create Support command when an FTP server is available on the workstation: SANbox (admin) #> create support Log Msg:[Creating the support file - this will take several seconds] FTP the dump support file to another machine? (y/n): y Enter IP Address of remote computer: 10.20.33.130 Login name: johndoe...
Page 139 B – Command Line Interface Create Command The following is an example of the Create Support command and how to download the support file to your workstation. When prompted to send the support file to another machine, decline, then close the Telnet session. Open an FTP session on the switch and log in with the account name images and password images.
Page 140: Date Command
B – Command Line Interface Date Command Date Command This command displays or sets the system date and time. To set the date and time the information string must be provided in this format: MMDDhhmmCCYY. The new date and time takes effect immediately. Authority Admin session except to display the date.
Page 141: Feature Command
[license_key] is case insensitive. Displays a list of installed license key features. Notes SANbox 5602 switches can be upgraded to 12-, 16-, or 20- port configurations. You can also add 4-Gbps port speed capability to ports 0–15. Examples The following is an example of the Feature Add command: SANbox #>...
Page 142: Firmware Install Command
B – Command Line Interface Firmware Install Command Firmware Install Command Downloads firmware from a remote host to the switch, installs the firmware, then resets the switch (without a power-on self test) to activate the firmware. If possible, a non-disruptive activation is performed. The command prompts you for the following: IP address of the remote host An account name and password on the remote host...
Page 143: Group Command
B – Command Line Interface Group Command Group Command Creates groups, manages membership within the group, and manages the membership of groups in security sets. Authority Admin session and a Security Edit session. Refer to the “Security Command” on page B-53 for information about starting a Security Edit session.
Page 144 B – Command Line Interface Group Command Keywords add [group] Initiates an editing session in which to specify a group member and its attributes for the existing group given by [group]. ISL, Port, and MS member attributes are described in Table B-5, Table...
Page 145 B – Command Line Interface Group Command Table B-6. Port Group Member Attributes Attribute Description Member Port worldwide name for the N_Port device that would attach to the switch. A member cannot belong to more than one group. Authentication Enables (CHAP) or disables (None) authentication using the Challenge Handshake Authentication Protocol (CHAP).
Page 146 B – Command Line Interface Group Command Table B-7. MS Group Member Attributes Attribute Description Member Port worldwide name for the N_Port device that would attach to the switch. CTAuthentication Common Transport (CT) authentication. Enables (True) or disables (False) authentication for MS group members. The default is False.
Page 147 B – Command Line Interface Group Command edit [group] [member] Initiates an editing session in which to change the attributes of a worldwide name given by [member] in a group given by [group]. Member attributes that can be changed are described in Table B-8: Table B-8.
Page 148 B – Command Line Interface Group Command Table B-8. Group Member Attributes (Continued) Attribute Description Secret Hexadecimal string that is encrypted by the Hash function (MS Groups) for authentication with MS group members. The string has the following lengths depending on the Hash function: MD5 hash: 16-byte SHA-1 hash: 20-byte...
Page 149 B – Command Line Interface Group Command Examples The following is an example of the Group Add command: SANbox (admin-security) #> group add Group_1 A list of attributes with formatting and default values will follow Enter a new value or simply press the ENTER key to accept the current value with exception of the Group Member WWN field which is mandatory.
Page 150 B – Command Line Interface Group Command The following is an example of the Group List command: SANbox #> group list Group SecuritySet ----- ----------- group1 (ISL) alpha group2 (Port) alpha The following is an example of the Group Members command: SANbox #>...
Page 151: Hardreset Command
B – Command Line Interface Hardreset Command Hardreset Command Resets the switch and performs a power-on self test. This reset disrupts traffic, activates the pending firmware, and clears the alarm log. To save the alarm log before resetting, refer to the “Set Log Command”...
Page 152: Help Command
B – Command Line Interface Help Command Help Command Displays a brief description of the specified command, its keywords, and usage. Authority None Syntax help [command] [keyword] Keywords [command] Displays a summary of the command given by [command] and its keywords. If you omit [command], the system displays all available commands.
Page 153: History Command
B – Command Line Interface History Command History Command Displays a numbered list of the previously entered commands from which you can re-execute selected commands. Authority None Syntax history Notes Use the History command to provide context for the ! command: Enter ![command_string] to re-execute the most recent command that matches [command_string].
Page 154: Hotreset Command
B – Command Line Interface Hotreset Command Hotreset Command Resets the switch for the purpose of activating the pending firmware without disrupting traffic. This command terminates all management sessions, saves all configuration information, and clears the event log. After the pending firmware is activated, the configuration is recovered.
Page 155: Image Command
B – Command Line Interface Image Command Image Command Manages and installs switch firmware. Authority Admin session Syntax image cleanup fetch [account_name] [ip_address] [file_source] [file_destination] install list unpack [file] Keywords cleanup Removes all firmware image files from the switch. All firmware image files are removed automatically each time the switch is reset.
Page 156 B – Command Line Interface Image Command Notes To provide consistent performance throughout the fabric, ensure that all switches are running the same version of firmware. To install firmware when the management workstation has an FTP server, use the Image Install command or the “Firmware Install Command”...
Page 157 B – Command Line Interface Image Command Open an Admin session to acquire the necessary authority. SANbox $>admin start Display the list of firmware image files on the switch to confirm that the file was loaded. SANbox (admin) $>image list Unpack the firmware image file to install the new firmware in flash memory.
Page 158: Lip Command
B – Command Line Interface Lip Command Lip Command Reinitializes the specified loop port. Authority Admin session Syntax lip [port_number] Keywords [port_number] The number of the port to be reinitialized. Ports are numbered beginning with 0. Examples The following is an example of the Lip command: SANbox (admin) #>...
Page 159: Passwd Command
B – Command Line Interface Passwd Command Passwd Command Changes a user account’s password. Authority Admin account name and an admin session to change another account’s password; You can change you own password without an Admin session. Syntax passwd [account_name] Keywords [account_name] The user account name.
Page 160: Ping Command
B – Command Line Interface Ping Command Ping Command Initiates an attempt to communicate with another switch over an Ethernet network and reports the result. Authority None Syntax ping [ip_address] Keywords [ip_address] The IP address of the switch to query. Broadcast IP addresses, such as 255.255.255.255, are not valid.
Page 161: Ps Command
B – Command Line Interface Ps Command Ps Command Displays current system process information. Authority None Syntax Examples The following is an example of the Ps command: SANbox #> ps PPID %CPU TIME ELAPSED COMMAND 0.0 00:00:00 3-01:18:35 cns 0.0 00:00:01 3-01:18:35 ens 0.0 00:00:21 3-01:18:35 dlog...
Page 162: Quit Command
B – Command Line Interface Quit Command Quit Command Closes the Telnet session. Authority None Syntax quit, exit, or logout Notes You can also enter Control-D to close the Telnet session. B-44 59096-01 A...
Page 163: Reset Command
B – Command Line Interface Reset Command Reset Command Resets the switch configuration parameters. If you omit the keyword, the default is Reset Switch. Authority Admin session Syntax reset config [config_name] factory port [port_number] radius security services snmp switch (default) system zoning Keywords...
Page 164 B – Command Line Interface Reset Command security Clears the security database and deactivates the active security set. The security configuration value, autosave, and fabric binding remain unchanged. services Resets the switch services configuration to the default values as described in Table B-15.
Page 165 B – Command Line Interface Reset Command Notes The following tables specify the various factory default settings: Enter the Show Config Switch command to display switch configuration values. Table B-9. Switch Configuration Defaults Parameter Default Admin State Online Broadcast Enabled True InbandEnabled True...
Page 166 B – Command Line Interface Reset Command Enter the Show Config Port command to display port configuration values. Table B-10. Port Configuration Defaults 1-Gbps/2-Gbps Port Parameter 10-Gbps Port Defaults Defaults Admin State Online Online Link Speed Auto 10-Gbps Port Type Symbolic Name Portn, where n is the 10G-n, where n is the...
Page 167 B – Command Line Interface Reset Command Enter Show Config Threshold command to display threshold alarm configuration values. Table B-11. Port Threshold Alarm Configuration Defaults Parameter Default ThresholdMonitoringEnabled False CRCErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow DecodeErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow ISLMonitoringEnabled True RisingTrigger FallingTrigger...
Page 168 Table B-13. SNMP Configuration Defaults Parameter Default SNMPEnabled True Contact <syscontact undefined> Location <sysLocation undefined> Description SANbox 5602 FC Switch Trap [1-5] Address Trap 1: 10.0.0.254; Traps 2–5: 0.0.0.0 Trap [1-5] Port Trap [1-5] Severity Warning Trap [1-5] Version Trap [1-5] Enabled False ObjectID 1.3.6.1.4.1.1663.1.1.1.1.24...
Page 169 B – Command Line Interface Reset Command Enter the Show Setup Radius command to display RADIUS configuration values. Table B-14. RADIUS Configuration Defaults Parameter Default DeviceAuthOrder Local UserAuthOrder Local TotalServers DeviceAuthServer False UserAuthServer False AccountingServer False ServerIPAddress 10.0.0.1 ServerUDPPort 1812 Timeout 2 seconds Retries...
Page 170 B – Command Line Interface Reset Command Enter the Show Setup System command to display system configuration values. Table B-16. System Configuration Defaults Parameter Default Ethernet Network Discovery Static Ethernet Network IP Address 10.0.0.1 Ethernet Network IP Mask 255.0.0.0 Ethernet Gateway Address 10.0.0.254 Admin Timeout 30 minutes...
Page 171: Security Command
B – Command Line Interface Security Command Security Command Opens a Security Edit session in which to manage the security database on a switch. Refer to the “Group Command” on page B-25 and the “Securityset Command” on page B-57. Authority Admin session.
Page 172 B – Command Line Interface Security Command history Displays history information about the security database and the active security set including the account name that made changes and when those changes were made. This keyword does not require an Admin session. limits Displays the current totals and the security database limits for the number of security sets, groups, members per group, and total members.
Page 173 B – Command Line Interface Security Command The following is an example of the Security History command: SB211.192 #> security history Active Database Information --------------------------- SecuritySetLastActivated/DeactivatedBy Remote SecuritySetLastActivated/DeactivatedOn day month date time year Database Checksum 00000000 Inactive Database Information ----------------------------- ConfigurationLastEditedBy admin@IB-session11 ConfigurationLastEditedOn...
Page 174 B – Command Line Interface Security Command The following is an example of the Security List command: SANbox (admin-security) #> security list SB211.192 #> security list Active Security Information SecuritySet Group GroupMember ----------- ----- ----------- No active securityset defined. Configured Security Information SecuritySet Group GroupMember...
Page 175: Securityset Command
B – Command Line Interface Securityset Command Securityset Command Manages security sets in the security database. Authority Admin session and a Security Edit session. Refer to the “Security Command” on page B-53 for information about starting a Security Edit session. The Active, Groups, and List keywords are available without an Admin session.
Page 176 B – Command Line Interface Securityset Command delete [security_set] Deletes the security set given by [security_set]. If the specified security set is active, the command is suspended until the security set is deactivated. groups [security_set] Displays all groups that are members of the security set given by [security_set]. This keyword is available without an Admin session.
Page 177: Set Command
B – Command Line Interface Set Command Set Command Sets a variety of switch parameters. Authority Admin session for all keywords except Alarm, Beacon, and Pagebreak which are available without an Admin session. Syntax alarm [option] beacon [state] config [option] log [option] pagebreak [state] port [option]...
Page 178 B – Command Line Interface Set Command pagebreak [state] Specifies how much information is displayed on the screen at a time according to the value given by [state]. This keyword does not require an admin session. [state] can be one of the following: Limits the display of information to 20 lines at a time.
Page 179 B – Command Line Interface Set Config Command Set Config Command Sets switch, port, port threshold alarm, security, and zoning configuration parameters. The changes you make with this command are not retained when you reset or power cycle the switch unless you save them using the Config Save command.
Page 180 B – Command Line Interface Set Config Command Table B-18. Set Config Port Parameters (Continued) Parameter Description PortType Port type: 1-Gbps/2-Gbps Ports: GL, G, F, FL, Donor. The default is GL. 10-Gbps Ports: G SymbolicPortName Descriptive name for the port. The name can be up to 32 characters excluding #, semicolon (;), and comma (,).
Page 181 B – Command Line Interface Set Config Command Table B-18. Set Config Port Parameters (Continued) Parameter Description AutoPerfTuning Automatic performance tuning for FL_Ports only. The default is True. If AutoPerfTuning is enabled (True) and the port is an FL_Port, MFSEnable is automatically enabled. LCFEnable and VIEnable are overridden to False.
Page 182 Auto – Suppresses the reception of RSCN messages when the port is connected to an initiator device with a QLogic HBA. For older QLogic HBAs, such as the QLA2200, the DeviceScanEnabled parameter must also be enabled. The default is Auto.
Page 183 B – Command Line Interface Set Config Command Table B-20. Set Config Switch Parameters Parameter Description AdminState Switch administrative state: online, offline, or diagnostics. The default is Online. BroadcastEnabled Broadcast. Enables (True) or disables (False) forwarding of broadcast frames. The default is True.
Page 184 B – Command Line Interface Set Config Command Table B-20. Set Config Switch Parameters (Continued) Parameter Description InteropMode Propagates just the active zone set throughout the fabric (Standard, FC-SW-2 compliant) or the entire zoning database (Interop-1, non-compliant). The default is Standard. LegacyAddressFormat Available only when the InteropMode parameter is Interop-1, this parameter enables (True) or...
Page 185 B – Command Line Interface Set Config Command threshold Initiates a configuration session by which to generate and log alarms for selected events. The system displays each event, its triggers, and sampling window one line at a time and prompts you for a value. For each parameter, enter a new value or press the Enter key to accept the current value shown in brackets.
Page 186 B – Command Line Interface Set Config Command zoning Initiates an editing session in which to change switch zoning attributes. The system displays each parameter one line at a time and prompts you for a value. For each parameter, enter a new value or press the Enter key to accept the current value shown in brackets.
Page 187 B – Command Line Interface Set Config Command Examples The following is an example of the Set Config Port command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config port 1 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 188 B – Command Line Interface Set Config Command The following is an example of the Set Config Port command for a 10-Gbps port: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config port 16 A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 189 B – Command Line Interface Set Config Command The following is an example of the Set Config Security command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config security A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 190 B – Command Line Interface Set Config Command The following is an example of the Set Config Switch command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config switch A list of attributes with formatting and default values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 191 B – Command Line Interface Set Config Command The following is an example of the Set Config Threshold command: SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config threshold A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 192 B – Command Line Interface Set Config Command The following is an example of the Set Config Zoning command. SANbox #> admin start SANbox (admin) #> config edit SANbox (admin-config) #> set config zoning A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 193: Set Log Command
B – Command Line Interface Set Log Command Set Log Command Specifies the events to record in the event log and display on the screen. You determine what events to record in the switch event log using the Component, Level, and Port keywords. You determine what events are automatically displayed on the screen using the Display keyword.
Page 194 B – Command Line Interface Set Log Command None Monitor none of the component events. Other Monitors other miscellaneous events. Port Monitors all port events. SNMP Monitors all SNMP events. Switch Monitors switch management events. Zoning Monitors zoning conflict events. display [filter] Specifies the log events to automatically display on the screen according to the event severity levels given by [filter].
Page 195 B – Command Line Interface Set Log Command level [filter] Specifies the severity level given by [filter] to use in monitoring and logging events for the specified components or ports. [filter] can be one of the following values: Critical Monitors critical events. The critical level describes events that are generally disruptive to the administration or operation of the fabric, but require no action.
Page 196 B – Command Line Interface Set Log Command Notes In addition to critical, warn, and informative severity levels, the highest event severity level is alarm. The alarm level describes events that are disruptive to the administration or operation of a fabric and require administrator intervention. Alarms are always logged and always displayed on the screen.
Page 197: Set Port Command
B – Command Line Interface Set Port Command Set Port Command Sets port state and speed for the specified port temporarily until the next switch reset or new configuration activation. This command also clears port counters. Authority Admin session except for the Clear keyword. Syntax set port [port_number] bypass [alpa]...
Page 198 B – Command Line Interface Set Port Command state [state] Specifies one of the following administrative states for the specified port: Online Places the port online. This activates and prepares the port to send data. Offline Places the port offline. This prevents the port from receiving signal and accepting a device login.
Page 199: Set Setup Command
B – Command Line Interface Set Setup Command Set Setup Command Manages configuration settings for Remote Authentication Dial-In User Service (RADIUS) servers, switch services, SNMP, and system configurations. Authority Admin session Syntax set setup radius services snmp system Keywords radius Prompts you in a line-by-line fashion to configure RADIUS servers for user account and device authentication.
Page 200 B – Command Line Interface Set Setup Command Table B-23. RADIUS Service Settings (Continued) Entry Description DeviceAuthServer Enable (True) or disable (False) this server for device authentication. The default is False. UserAuthServer Enable (True) or disable (False) this server for user account authentication.
Page 201 B – Command Line Interface Set Setup Command services Prompts you in a line-by-line fashion to enable or disable switch services. Table B-24 describes the switch service parameters. For each parameter, enter a new value or press the Enter key to accept the current value shown in brackets. Note: Use caution when disabling TelnetEnabled and GUIMgmtEnabled;...
Page 202 B – Command Line Interface Set Setup Command Table B-24. Switch Services Settings (Continued) Entry Description EmbeddedGUIEnabled Enables (True) or disables (False) the SANsurfer Switch Manager web applet. The web applet enables you to point at a switch with an internet browser and run SANsurfer Switch Manager through the browser.
Page 203 B – Command Line Interface Set Setup Command snmp Prompts you in a line-by-line fashion to change SNMP configuration settings. Table B-25 describes the SNMP fields. For each parameter, enter a new value or press the Enter key to accept the current value shown in brackets. Table B-25.
Page 204 B – Command Line Interface Set Setup Command Table B-25. SNMP Configuration Settings (Continued) Entry Description TrapCommunity Trap community password that authorizes an SNMP agent to receive traps. This is a write-only field. The value on the switch and the SNMP management server must be the same.
Page 205 B – Command Line Interface Set Setup Command Table B-26. System Configuration Settings (Continued) Entry Description LocalLogEnabled Enables (True) or disables (False) the saving of log information on the switch. The default is True. RemoteLogEnabled Enables (True) or disables (False) the recording of the switch event log on a remote host that supports the syslog protocol.
Page 206 B – Command Line Interface Set Setup Command Examples The following is an example of the Set Setup RADIUS command: SANbox (admin) #> set setup radius A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the attributes for the server being processed, press 'q' or 'Q' and the ENTER key to do so.
Page 207 B – Command Line Interface Set Setup Command The following is an example of the Set Setup SNMP command: SANbox #> admin start SANbox (admin) #> set setup snmp A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value.
Page 208 B – Command Line Interface Set Setup Command The following is an example of the Set Setup System command: SANbox (admin) #> set setup system A list of attributes with formatting and current values will follow. Enter a new value or simply press the ENTER key to accept the current value. If you wish to terminate this process before reaching the end of the list press 'q' or 'Q' and the ENTER key to do so.
Page 209: Show Command
B – Command Line Interface Show Command Show Command Displays fabric, switch, and port operational information. Authority None Syntax show about alarm [option] audit broadcast chassis cimlistener [listener_name] cimsubscription [subscription_name] config [option] domains donor fabric fdmi [port_wwn] interface log [option] lsdb mem [count] ns [option]...
Page 210 B – Command Line Interface Show Command alarm [option] Displays the alarm log and session display setting. If you omit [option], the command displays the last 200 alarm entries. The alarm log is cleared when the switch is reset or power cycled. [option] has the following value: setting Displays the status of the parameter that controls the display of alarms in the session output stream.
Page 211 B – Command Line Interface Show Command log [option] Displays log entries. Refer to the “Show Log Command” on page B-110. The log is cleared when the switch is reset or power cycled. lsdb Displays Link State database information mem [count] Displays information about memory activity for the number of seconds given by [count].
Page 212 B – Command Line Interface Show Command port [port_number] Displays operational information for the port given by [port_number]. Ports are numbered beginning with 0. If [port number] is omitted, information is displayed for all ports. Table B-27 describes the port parameters. Table B-27.
Page 213 B – Command Line Interface Show Command Table B-27. Show Port Parameters (Continued) Entry Description LIP_F8_AL_PS This LIP denotes a loop failure detected by the L_Port identified by AL_PS. LIP_F7_F7 A loop initialization primitive frame used to acquire a valid AL_PA.
Page 214 B – Command Line Interface Show Command Table B-27. Show Port Parameters (Continued) Entry Description TotalTxFrames Total number of frames issued by this port. TotalTxWords Total number of words issued by this port. TxLinkResets Number of Link Resets issued by this port. TxOfflineSeq Total number of Offline Sequences issued by this port.
Page 215 B – Command Line Interface Show Command Whoami Zoneset (Active, List) Zoning (History, Limits, List) switch Displays switch operational information.Table B-28 describes the switch operational parameters. Table B-28. Switch Operational Parameters Parameter Description SymbolicName Descriptive name for the switch SwitchWWN Switch world wide name SwitchType Switch model...
Page 216 B – Command Line Interface Show Command Table B-28. Switch Operational Parameters (Continued) Parameter Description BeaconOnStatus Beacon status as set by the Set Beacon command. OperationalState Switch operational state PrincipalSwitchRole Principal switch status. True indicates that this switch is the principal switch. BoardTemp (1) - Degrees Celsius Internal switch temperature at circuit board sensor 1...
Page 217 Sb2 .108 The following is an example of the Show FDMI command: SANbox #> show fdmi HBA ID PortID Manufacturer Model Ports -------- ------ --------------- ------- ----- 21:01:00:e0:8b:27:aa:bc 610000 QLogic Corporation QLA2342 21:00:00:00:ca:25:9b:96 180100 QLogic Corporation QL2330 59096-01 A B-99...
Page 218 The following is an example of the Show FDMI WWN command: SANbox #> show fdmi 21:00:00:e0:8b:09:3b:17 FDMI Information ---------------- Manufacturer QLogic Corporation SerialNumber [04202 Model QLA2342 ModelDescription QLogic QLA2342 PCI Fibre Channel Adapter PortID 610000 NodeWWN 20:00:00:e0:8b:07:aa:bc HardwareVersion FC5010409-10 DriverVersion 8.2.3.10 Beta 2 (W2K VI) OptionRomVersion 1.21 FirmwareVersion 03.02.13.
Page 219 B – Command Line Interface Show Command The following is an example of the Show NS [domain_ID] command: SANbox #> show ns 18 Seq Domain Port Port Type COS PortWWN NodeWWN --- ------ ------ ---- --- ------- ------- 18 (0x12) 120700 N 21:00:00:e0:8b:07:a7:bc 20:00:00:e0:8b:07:a7:bc The following is an example of the Show NS [port_ID] command: SANbox #>...
Page 220 B – Command Line Interface Show Command The following is an example of the Show Port command: SANbox #> show port 1 Port Number: 1 ------------ AdminState Online OperationalState Online AsicNumber PerfTuningMode Normal AsicPort PortID 0e0800 ConfigType PortWWN 20:08:00:c0:dd:03:d5:94 DiagStatus Passed RunningType EpConnState...
Page 221 The following is an example of the Show Switch command: SANbox #> show switch Switch Information ------------------ SymbolicName sw .108 SwitchWWN 100000c0dd00bc56 SwitchType SANbox 5602 BootVersion Vx.x.x.x-0 (day month date time year) CreditPool DomainID 19 (0x13) FirstPortAddress 130000 FlashSize - MBytes...
Page 222 B – Command Line Interface Show Command The following is an example of the Show Topology command for port 1: SANbox #> show topology 1 Local Link Information ---------------------- PortNumber 1 PortID 650100 PortWWN 20:01:00:c0:dd:00:91:11 PortType Remote Link Information ----------------------- Device 0 NodeWWN 50:80:02:00:00:06:d5:38 PortType NL...
Page 223 Show Command The following is an example of the Show Version command: SANbox #> show version ***************************************************** Command Line Interface SHell (CLISH) ***************************************************** SystemDescription SANbox 5602 FC Switch Eth0NetworkAddress 10.20.11.192 (use 'set setup system' to update) MACAddress 00:c0:dd:00:71:ee WorldWideName 10:00:00:c0:dd:00:71:ed ChassisSerialNumber...
Page 224: Show Config Command
B – Command Line Interface Show Config Command Show Config Command Displays switch, port, alarm threshold, security, and zoning for the current configuration. Authority None Syntax show config port [port_number] security switch threshold zoning Keywords port [port_number] Displays configuration parameters for the port number given by [port_number]. Ports are numbered beginning with 0.
Page 225 B – Command Line Interface Show Config Command MSEnabled True NoClose False IOStreamGuard Disabled VIEnabled False PDISCPingEnable True The following is an example of the Show Config Port command for a 10-Gbps port: SANbox #> show config port 16 Configuration Name: default ------------------- Port Number: 16 ------------...
Page 226 B – Command Line Interface Show Config Command The following is an example of the Show Config Switch command: SANbox #> show config switch Configuration Name: default ------------------- Switch Configuration Information -------------------------------- AdminState Online BroadcastEnabled False InbandEnabled True FDMIEnabled False FDMIEntries DomainID 19 (0x13)
Page 227 B – Command Line Interface Show Config Command The following is an example of the Show Config Threshold command: SANbox #> show config threshold Configuration Name: default ------------ Threshold Configuration Information ----------------------------------- ThresholdMonitoringEnabled False CRCErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow DecodeErrorsMonitoringEnabled True RisingTrigger FallingTrigger SampleWindow...
Page 228: Show Log Command
B – Command Line Interface Show Log Command Show Log Command Displays the contents of the log or the parameters used to create and display entries in the log. The log contains a maximum of 1200 entries. When the log reaches its entry capacity, subsequent entries overwrite the existing entries, beginning with the oldest.
Page 229 B – Command Line Interface Show Log Command Zoning Monitors zoning conflict events. display [filter] Displays log events on the screen according to the component or severity level filter given by [filter]. [filter] can be one of the following: Info Displays all informative events.
Page 230 B – Command Line Interface Show Log Command Examples The following is an example of the Show Log Component command: SANbox #> show log component Current settings for log ------------------------ FilterComponent NameServer MgmtServer Zoning Switch Blade Port Eport Snmp The following is an example of the Show Log Level command: SANbox #>...
Page 231: Show Perf Command
B – Command Line Interface Show Perf Command Show Perf Command Displays port performance in frames/second and bytes/second. If you omit the keyword, the command displays data transmitted (out), data received (in), and total data transmitted and received in frames/second and bytes per second. Authority None Syntax...
Page 232 B – Command Line Interface Show Perf Command errors [port_number] Displays continuous error counts for the port group (0–15 or 16–19) that includes [port_number]. If you omit [port_number], ports 0–15 are displayed. Type “q” and press the Enter key to stop the display. Examples The following is an example of the Show Perf command: SANbox #>...
Page 233 B – Command Line Interface Show Perf Command The following is an example of the Show Perf Byte command: SANbox #> show perf byte Displaying bytes/sec (total)... (Press any key to stop display) -------------------------------------------------------------------------------- 137M 58K 137M 136M 58K 136M 135M 58K 135M 137M 58K...
Page 234: Show Setup Command
The following is an example of the Show Setup Mfg command: SANbox #> show setup mfg Manufacturing Information ------------------------- BrandName QLogic BuildDate Unknown PartNumber SANbox 5602 SerialNumber FAM0331000011 LicensedPorts MACAddress 00:c0:dd:02:cc:17 PlanarPartNumber Unknown SwitchSymbolicName SANbox SwitchWWN 10:00:00:c0:dd:02:cc:16 SystemDescription SANbox 5602 FC Switch SystemObjectID 1.3.6.1.4.1.1663.1.1.1.1.24 B-116 59096-01 A...
Page 235 B – Command Line Interface Show Setup Command The following is an example of the Show Setup Services command: SANbox #> show setup services System Services ----------------------------- TelnetEnabled True SSHEnabled False GUIMgmtEnabled True SSLMgmtEnabled False EmbeddedGUIEnabled True SNMPEnabled True NTPEnabled True CIMEnabled True...
Page 236 The following is an example of the Show Setup Snmp command: SANbox #> show setup snmp SNMP Information ---------------- SNMPEnabled True Contact <sysContact undefined> Location N_107 System Test Lab Description SANbox 5602 FC Switch Trap1Address 10.0.0.254 Trap1Port Trap1Severity warning Trap1Version Trap1Enabled False Trap2Address 0.0.0.0...
Page 237 B – Command Line Interface Show Setup Command The following is an example of the Show Setup System command: SANbox #> show setup system System Information ------------------ Eth0NetworkDiscovery Static Eth0NetworkAddress 10.20.11.32 Eth0NetworkMask 255.255.252.0 Eth0GatewayAddress 10.20.8.254 AdminTimeout InactivityTimeout LocalLogEnabled True RemoteLogEnabled False RemoteLogHostAddress 10.0.0.254...
Page 238: Shutdown Command
B – Command Line Interface Shutdown Command Shutdown Command Terminates all data transfers on the switch at convenient points and closes the Telnet session. Always power cycle the switch after entering this command. Authority Admin session Syntax shutdown Notes Always use this command to perform an orderly shut down before removing power from the switch.
Page 239: Test Command
B – Command Line Interface Test Command Test Command Tests ports using internal (SerDes level), external (transceiver), and online loopback tests. Internal and external tests require that the port be placed in diagnostic mode. Refer to the “Set Command” on page B-59 for information about changing the port administrative state.
Page 240 B – Command Line Interface Test Command Examples To run an internal or external port test, do the following: To start an admin session, enter the following command and press the Enter key. admin start Place the port in Diagnostics mode, enter the following command (x = port number) and press the Enter key.
Page 241 B – Command Line Interface Test Command The online loopback (node-to-node) test requires that port be online and connected to a remote device. To run the online loopback test, do the following: To start an admin session, enter the following command and press the Enter key.
Page 242: Uptime Command
B – Command Line Interface Uptime Command Uptime Command Displays the elapsed up time since the switch was last reset and reset method. A hot reset or non-disruptive firmware activation does not reset the elapsed up time reported by this command. Authority None Syntax...
Page 243: User Command
B – Command Line Interface User Command User Command Administers and displays user accounts. Authority Admin account name and an Admin session. The Accounts and List keywords are available to all account names without an Admin session. Syntax user accounts delete [account_name] edit list...
Page 244 B – Command Line Interface User Command Examples The following is an example of the User Accounts command: SANbox (admin) #> user accounts Current list of user accounts ----------------------------- images (admin authority = False, never expires) admin (admin authority = True , never expires) chuckca (admin authority = False, expires in <...
Page 245 B – Command Line Interface User Command The following is an example of the User Delete command: SANbox (admin) #> user del user3 The user account will be deleted. Please confirm (y/n): [n] y The following is an example of the User List command: SANbox (admin) #>...
Page 246: Whoami Command
B – Command Line Interface Whoami Command Whoami Command Displays the account name, session number, and switch domain ID for the Telnet session. Authority None Syntax whoami Examples The following is an example of the Whoami command: SANbox #> whoami User name : admin@session2 Switch name...
Page 247 B – Command Line Interface Zone Command Zone Command Manages zones and zone membership on a switch. Authority Admin session and a Zoning Edit session. Refer to the “Zoning Command” on page B-135 for information about starting a Zoning Edit session. The List, Members, and Zonesets keywords are available without an Admin session.
Page 248 B – Command Line Interface Zone Command list Displays a list of all zones and the zone sets of which they are components. This keyword does not require an Admin session. members [zone] Displays all members of the zone given by [zone]. This keyword does not require an Admin session.
Page 249 B – Command Line Interface Zone Command Examples The following is an example of the Zone List command: SANbox #> zone list Zone ZoneSet ------------------- wwn_b0241f zone_set_1 wwn_23bd31 zone_set_1 wwn_221416 zone_set_1 wwn_2215c3 zone_set_1 wwn_0160ed zone_set_1 wwn_c001b0 zone_set_1 wwn_401248 zone_set_1 wwn_02402f zone_set_1 wwn_22412f zone_set_1...
Page 250: Zone Command
B – Command Line Interface Zone Command The following is an example of the Zone Zonesets command: SANbox #> zone zonesets zone1 Current List of ZoneSets for Zone: zone1 ---------------------------------- zone_set_1 B-132 59096-01 A...
Page 251: Zoneset Command
B – Command Line Interface Zoneset Command Zoneset Command Manages zone sets and component zones across the fabric. Authority Admin session and a Zoning Edit session. Refer to the “Zoning Command” on page B-135 for information about starting a Zoning Edit session. The Active, List, and Zones keywords are available without an Admin session.
Page 252 B – Command Line Interface Zoneset Command list Displays a list of all zone sets. This keyword does not require an Admin session. remove [zone_set] [zone_list] Removes a list of zones given by [zone_list] from the zone set given by [zone_set].
Page 253: Zoning Command
B – Command Line Interface Zoning Command Zoning Command Opens a Zoning Edit session in which to create and manage zone sets and zones. Refer to the “Zone Command” on page B-129 and the “Zoneset Command” on page B-133. Authority Admin session except for the Active, History, Limits, and List keywords.
Page 254 B – Command Line Interface Zoning Command history Displays a history of zoning modifications. This keyword does not require an Admin session. History information includes the following: Time of the most recent zone set activation or deactivation and the user who performed it Time of the most recent modifications to the zoning database and the user who made them.
Page 255 B – Command Line Interface Zoning Command Examples The following is an example of the Zoning Edit command: SANbox #> admin start SANbox (admin) #> zoning edit SANbox (admin-zoning) #> SANbox (admin-zoning) #> zoning cancel Zoning edit mode will be canceled. Please confirm (y/n): [n] SANbox (admin) #>...
Page 256 B – Command Line Interface Zoning Command The following is an example of the Zoning List command: SANbox #> zoning list Active ZoneSet Information ZoneSet Zone ZoneMember -------------------------------- wwn_b0241f 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 21:00:00:e0:8b:02:41:2f wwn_23bd31 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 10:00:00:00:c9:23:bd:31 wwn_221416 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2 10:00:00:00:c9:22:14:16 wwn_2215c3 50:06:04:82:bf:d2:18:c2 50:06:04:82:bf:d2:18:d2...
Page 257 Glossary Access Control List Zone Arbitrated Loop Access Control List zoning divides the A Fibre Channel topology where ports use fabric for purposes of controlling discovery arbitration to establish a point-to-point and inbound traffic. circuit. Active Zone Set Arbitrated Loop Physical Address (AL_PA) The zone set that defines the current A unique one-byte value assigned during zoning for the fabric.
Page 258 SANbox 5602 Fibre Channel Switch Installation Guide Class 2 Service Expansion Port A service which multiplexes frames at E_Port that connects to another FC-SW-2 frame boundaries to or from one or more compliant switch. N_Ports wit h acknowledgment provided. Fabric Database...
Page 259 SANbox 5602 Fibre Channel Switch Installation Guide Flash Memory Input Power LED Memory on the switch that contains the A chassis LED that indicates that the chassis control firmware. switch logic circuitry is receiving proper DC voltages. Frame Inter-Switch Link...
Page 260 SANbox 5602 Fibre Channel Switch Installation Guide Simple Network Management Protocol Management Information Base An application protocol that manages and monitors network communications and Multistage Topology functions. It also controls the Management Information Base (MIB). A fabric in which two or more edge...
Page 261 SANbox 5602 Fibre Channel Switch Installation Guide User Account Security A component of fabric security that provides for the administration and authentication of account names, passwords, expiration dates, and authority level. VCCI Voluntary Control Council for Interference Voluntary Control Council for Interference...
Page 262 SANbox 5602 Fibre Channel Switch Installation Guide Notes Glossary-6 59096-01 A...
Page 263 Index Numerics authority B-7 authorization 3-17 10/100 Base-T straight cable 4-6 10-Gbps port 2-5 bandwidth 3-5, A-2 beacon B-59 Access Control List zone 3-3 binding B-26, B-30 account name boot loader 5-15 display B-125, B-128 broadcast B-92 factory B-2 browser 4-1 ftp 5-5 buffer credit 3-4, A-2 maintenance mode 5-12...
Page 264 SANbox 5602 Fibre Channel Switch Installation Guide Common Information Model device configure B-11 access 3-2 display listener B-92 authentication 3-17 display subscription B-92 authorization 3-17 listener B-12 cabling 4-23 service 3-15, B-84 description 3-1 subscription B-14 performance 3-7 Config command B-16...
Page 265 SANbox 5602 Fibre Channel Switch Installation Guide external test B-121 G_Port 2-7 gateway address B-86 F_Port 2-7 GBIC - See GigaBit Interface Converter fabric generic ports 2-7 management 3-28, A-3 Gigabit Interface Converter 3-1 management switch 2-8 GL_Port 2-7 management workstation 4-1...
Page 266 SANbox 5602 Fibre Channel Switch Installation Guide internal firmware failure 5-4 maintainability A-3 test B-121 maintenance internet browser 4-1 exit 5-13 IP address B-86 interface A-3 ISL group B-28 menu 5-13 mode 2-2, 2-3, 5-3, 5-12 Maintenance button 2-2, 2-3, 5-12...
Page 267 SANbox 5602 Fibre Channel Switch Installation Guide Network Time Protocol port client B-87 10-Gbps 2-5 interaction with Date command B-22 administrative state B-80 server address B-87 buffer credits 3-4 service 3-15, B-84 characteristics A-1 new features 1-2 configuration B-61 non-critical error 5-3...
Page 268 SANbox 5602 Fibre Channel Switch Installation Guide processor 4-1 SANsurfer Switch Manager Ps command B-43 API 2-12 description 2-11 Linux install 4-11 Mac OS X install 4-11 Quit command B-44 Solaris install 4-11 start 4-17 web applet 2-11, B-84, B-87...
Page 269 SANbox 5602 Fibre Channel Switch Installation Guide security set stacking 3-6, 3-9 activate B-57 steering B-96 add member group B-57 subscription copy B-57 create B-14 create B-57 delete B-14 deactivate B-57 display B-92 delete B-58 support file B-19 delete member group B-58...
Page 270 SANbox 5602 Fibre Channel Switch Installation Guide Test command B-121 three-switch-stacking 3-9 web applet B-84 time B-22 description 2-11 time zone B-60 enable B-87 timeout service 3-14 Admin session B-86 Whoami command B-128 Telnet session B-86 workstation value 5-9 configuration 4-8...
Page 271 SANbox 5602 Fibre Channel Switch Installation Guide zone set activate B-133 active B-135 add member zone B-133 copy B-133 create B-133 deactivate B-46, B-133 definition 3-2 delete B-133 delete member zone B-134 display B-134 display active B-133 display members B-134...
Page 272 SANbox 5602 Fibre Channel Switch Installation Guide Notes Index-10 59096-01 A...

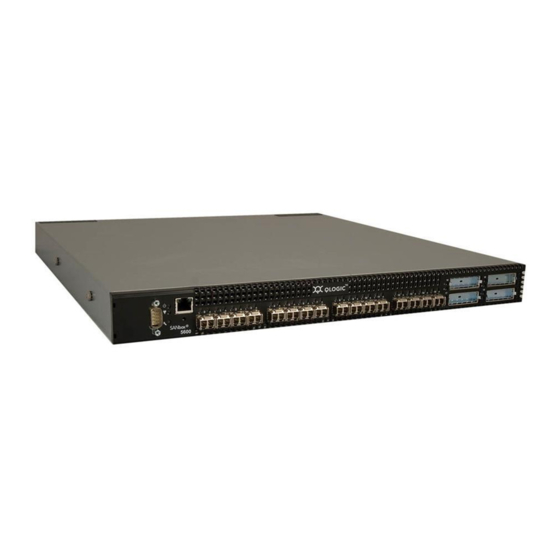

Qlogic SANbox 5602 Installation Manual

Introduction

General Description Chassis Controls and Leds

Planning

Installation

5.1 Chassis Diagnostics

Diagnostics/Troubleshooting Chassis Diagnostics

Section 6 Yremoval/Replacement

Appendix A Specifications

Appendix B Command Line Interface

Quick Links

SANbox 5602 Fibre Channel Switch

Installation Guide

Need help?

Questions and answers

Related Manuals for Qlogic SANbox 5602

Summary of Contents for Qlogic SANbox 5602

Table of Contents
