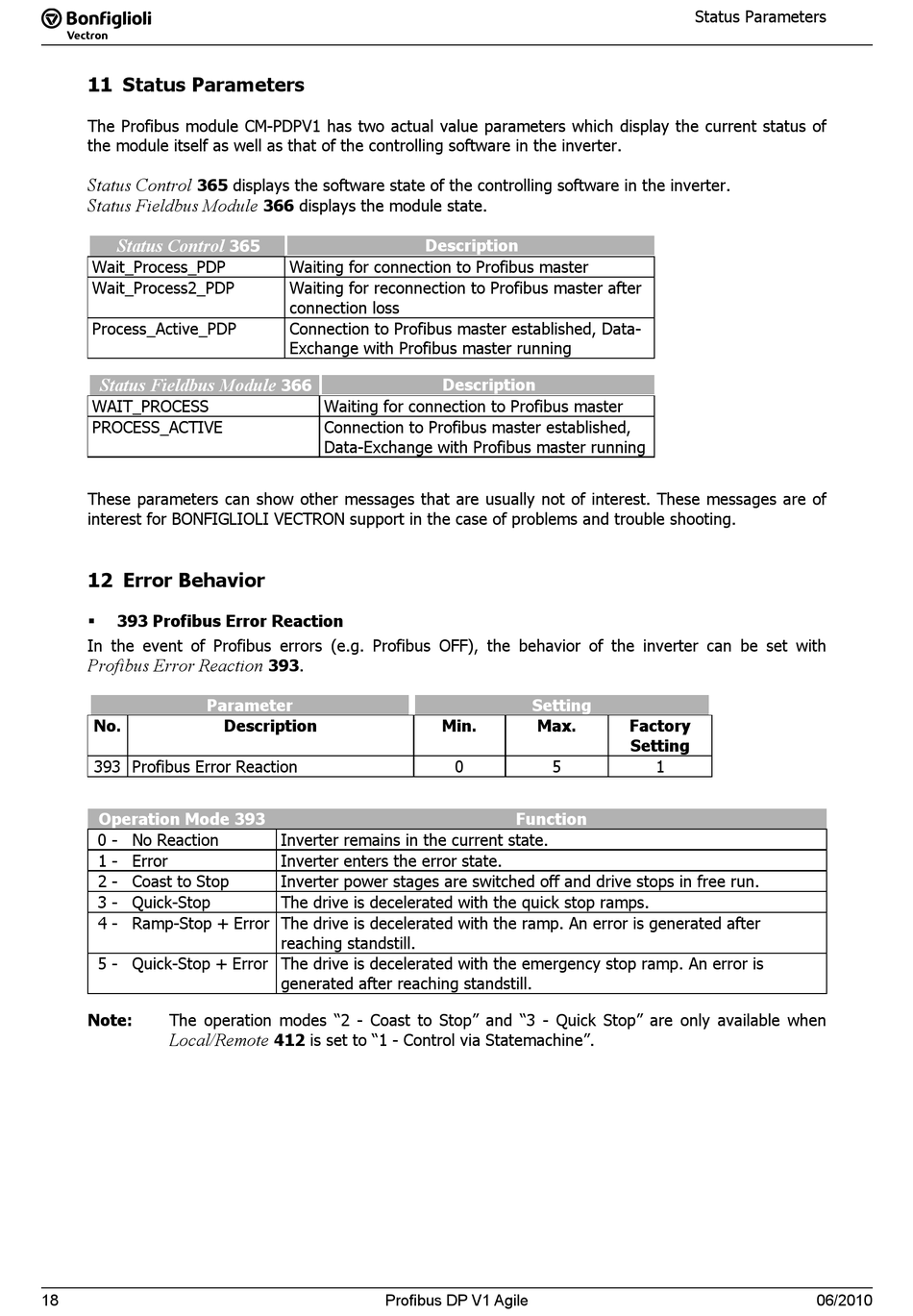

11 Status Parameters

The Profibus module CM-PDPV1 has two actual value parameters which display the current status of
the module itself as well as that of the controlling software in the inverter.
Status Control
365 displays the software state of the controlling software in the inverter.
Status Fieldbus Module
Status Control
Wait_Process_PDP
Wait_Process2_PDP
Process_Active_PDP
Status Fieldbus Module
WAIT_PROCESS
PROCESS_ACTIVE
These parameters can show other messages that are usually not of interest. These messages are of
interest for BONFIGLIOLI VECTRON support in the case of problems and trouble shooting.

12 Error Behavior

393 Profibus Error Reaction

In the event of Profibus errors (e.g. Profibus OFF), the behavior of the inverter can be set with
Profibus Error Reaction
Parameter
No.
393 Profibus Error Reaction
Operation Mode 393
0 - No Reaction
1 - Error
2 - Coast to Stop
3 - Quick-Stop
4 - Ramp-Stop + Error The drive is decelerated with the ramp. An error is generated after
5 - Quick-Stop + Error The drive is decelerated with the emergency stop ramp. An error is
Note: The operation modes "2 - Coast to Stop" and "3 - Quick Stop" are only available when
Local/Remote
18
366 displays the module state.
365
Waiting for connection to Profibus master
Waiting for reconnection to Profibus master after
connection loss
Connection to Profibus master established, Data-
Exchange with Profibus master running
366
Waiting for connection to Profibus master
Connection to Profibus master established,
Data-Exchange with Profibus master running
393.
Description
Inverter remains in the current state.
Inverter enters the error state.
Inverter power stages are switched off and drive stops in free run.
The drive is decelerated with the quick stop ramps.
reaching standstill.
generated after reaching standstill.
412 is set to "1 - Control via Statemachine".
Profibus DP V1 Agile
Description
Description
Setting
Min. Max.
0 5
Function
Status Parameters
Factory
Setting
1
06/2010
