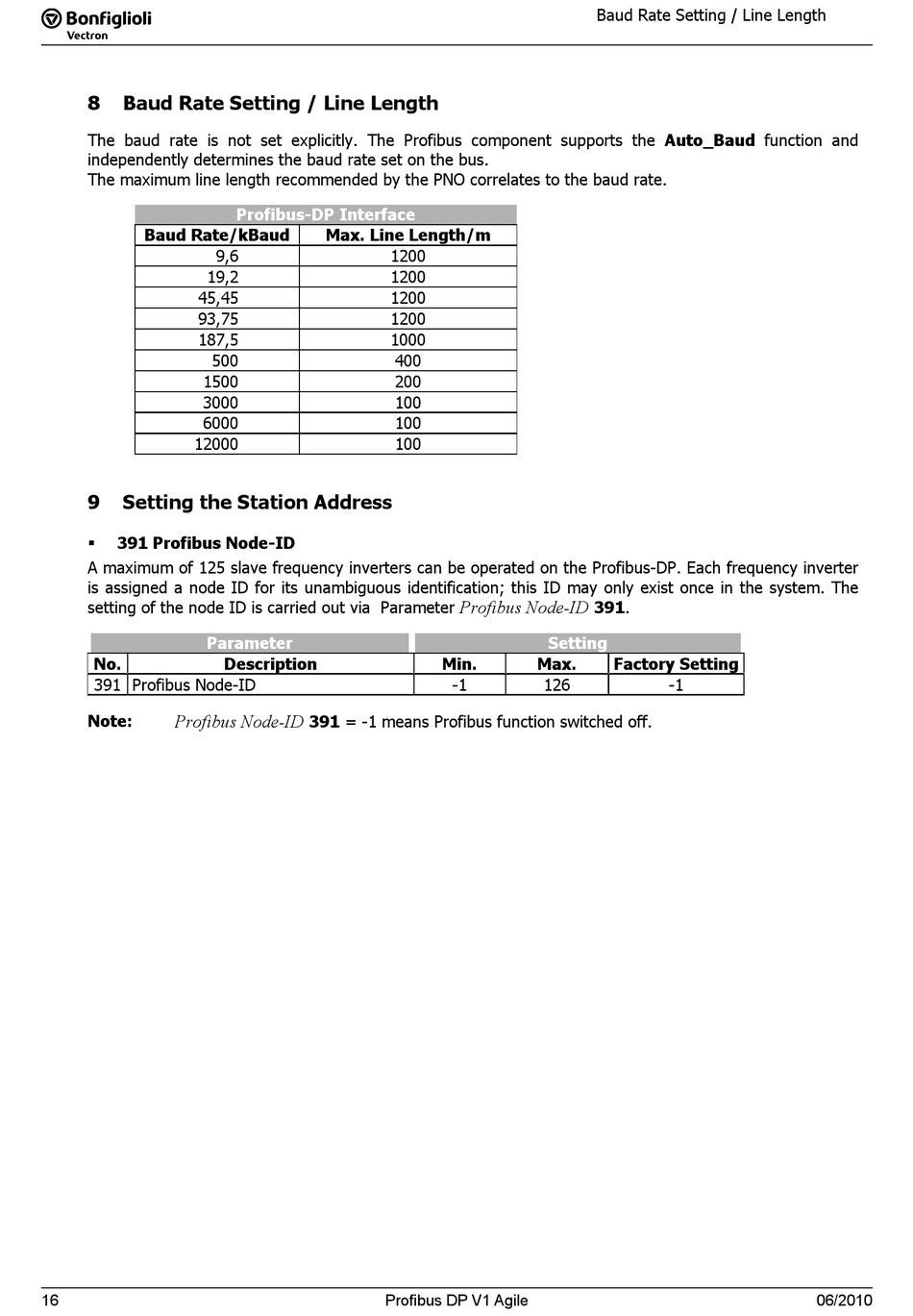

Baud Rate Setting / Line Length

The baud rate is not set explicitly. The Profibus component supports the Auto_Baud function and
independently determines the baud rate set on the bus.
The maximum line length recommended by the PNO correlates to the baud rate.
Baud Rate/kBaud
19,2
45,45
93,75
187,5
500
1500
3000
6000
12000
9

Setting the Station Address

391 Profibus Node-ID

A maximum of 125 slave frequency inverters can be operated on the Profibus-DP. Each frequency inverter
is assigned a node ID for its unambiguous identification; this ID may only exist once in the system. The
setting of the node ID is carried out via Parameter
Parameter
No.
391 Profibus Node-ID
Profibus Node-ID
Note:
16
Profibus-DP Interface
Max. Line Length/m
9,6
Description
391 = -1 means Profibus function switched off.
Profibus DP V1 Agile
1200
1200
1200
1200
1000
400
200
100
100
100
Profibus Node-ID
Setting
Min. Max.
-1 126
Baud Rate Setting / Line Length
391.
Factory Setting
-1
