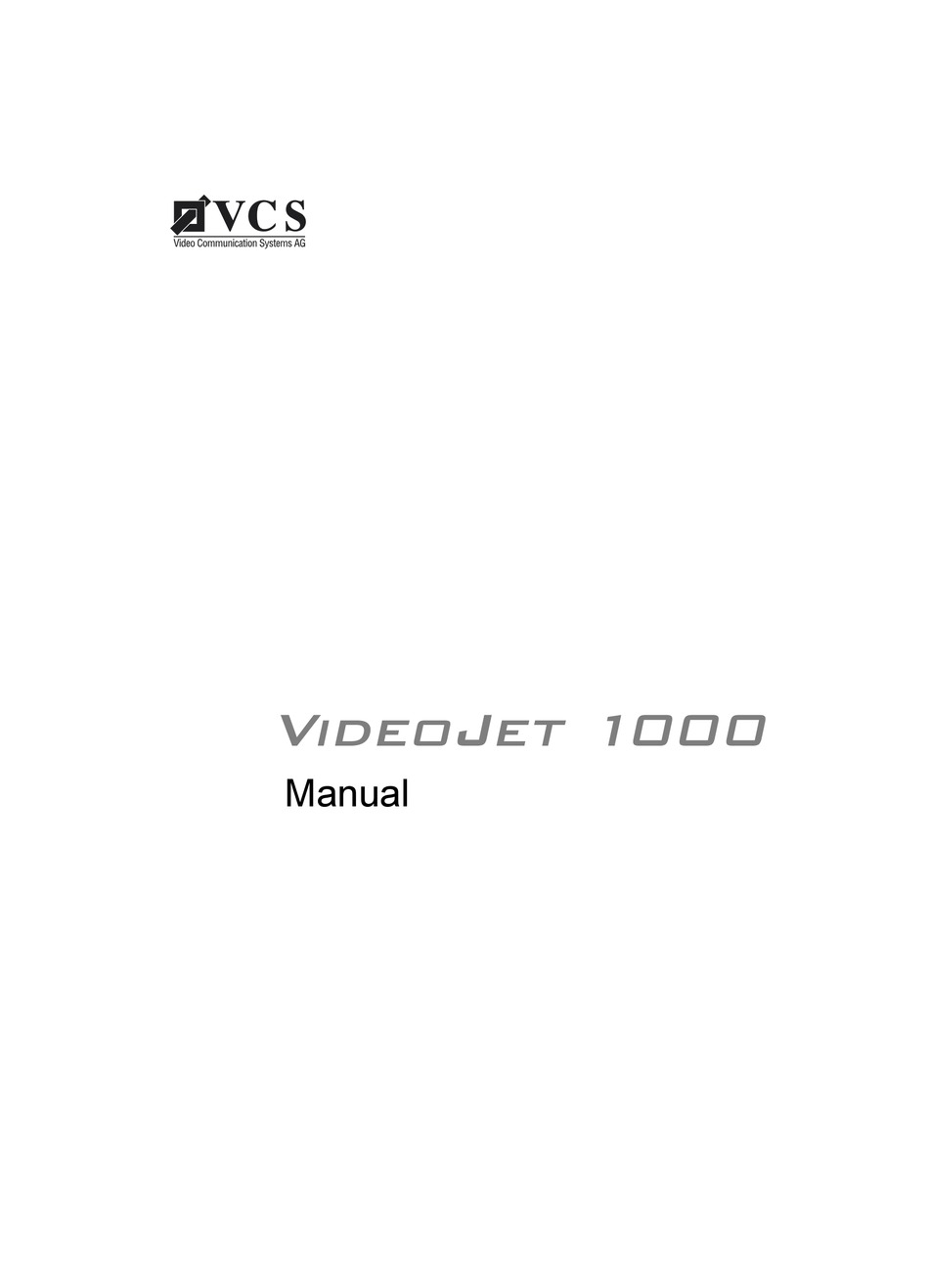

Page 1 VideoJet 1000 Manual...
Page 2 Because of the further development of pro- ducts, the content of the manual might change without prior notice. VCS will not be liable for damage which is directly or indirectly due to errors, incompleteness, or discrepancies between the manual and the product described.
Page 3: Table Of Contents
Switching on/off ........25 VideoJet 1000...
Page 4 Specifications ........141 VideoJet 1000...
Page 5 Chapter 9 Index ..........143 VideoJet 1000...
Page 6 Contents VideoJet 1000...
Page 7: Chapter 1 Preface
Preface These installation and operating instructions are intended for per- sons authorised to install and operate the VideoJet 1000. Interna- tional, national and any relevant regional regulations relating to electronics must be observed at all times. The operating instruc- tions explain the installation and operation of the VideoJet 1000.
Page 8: Intended Use
Command line input and output ping Intended use The Network Video Server VideoJet 1000 serves to transmit video, audio and control signals via data networks (Ethernet LAN, Inter- net). Due to the integrated hard disk the device provides DVR func- tionality.
Page 9: Rating Plate
For exact identification, you will find the model designation and serial number on the rating plate on the bottom of the housing. Please note this information here before installation in order to have it to hand in the event of queries or spare parts orders. VideoJet 1000...
Page 10 Preface VideoJet 1000...
Page 11: Chapter 2 Safety Information
– if the server has been exposed to rain or moisture, – if objects have penetrated inside the unit, – after long storage under improper conditions or – after heavy demands during transport. Have the system checked by VCS in such cases. VideoJet 1000...
Page 12: Installation And Operation
All other work beyond this may lead to injuries to per- sons and damage to the system or other equipment. Repairs and maintenance Never open the housing of the VideoJet 1000. The unit contains no parts which you can repair or replace. Ensure that only qualified, specialist personnel (electrical techni- cians) are permitted to carry out maintenance or repair work.
Page 13: Chapter 3 Product Description
Product Description Supplied components Network Video Server VideoJet 1000 incl. mains cable RS232 Null modem cable Brief description “First Steps” German/English German/English handbook on CD-ROM VCS software on CD-ROM 3.5’’ hard drive System requirements Computer with Windows 98/2000/XP operating system and...
Page 14: Operational Requirements
CCTV installations via local networks can be achieved. The VideoJet 1000 is designed either as a desktop unit or for buil- ding into equipment cabinets. Using the appropriate mounting frame, installation of a single unit or two units alongside each other on a 19“...
Page 15 Snapshots Individual video frames (snapshots) can be called up in JPEG for- mat by the VideoJet 1000, stored on the computer hard drive or can be displayed in a separate browser window. Back-up Can be accomplished from either the livepage or directly from the HDD-Replay mode through a simple mouse click.
Page 16 Product Description Summary The main functions of the VideoJet 1000 can be summarized as follows: Video, audio and data transmission via IP data nets Multicast function for simultaneous transmission to a number of receivers Analog BNC composite video input (PAL/NTSC)
Page 17: Rear Panel Connectors
6 Serial interface port COM2: RS232 9-pin sub-D socket (m) for control data transmissions (protocol RS232) and for configuration using terminal software 7 RJ45 Ethernet connector for connecting to the network 8 Socket Power mains cable connector VideoJet 1000...
Page 18: Front Panel
LED lights up with physical network connection red LED flashes when data packets are being transmitted 16 LED POWER lights up green to indicate operationally ready Additional information on the LEDs can be found on page 137. VideoJet 1000...
Page 19: Chapter 4 Installation
Installation Due to its compact design and small footprint, the VideoJet 1000 can be used as a desk top unit occupying minimum space. Using the mounting shelf unit, Accessory Kit 19“ Rack, it is also possible to mount the unit into a standard 19“ equipment cabinet.
Page 20: Rack Mounting
When installing additional equipment, direct contact with the VideoJet 1000 is only permitted if the surface temperature of the neighboring equipment does not exceed +50 °C. VideoJet 1000...
Page 21 " Mount the units into the rack and secure the angle brackets using four screws. " Plug the supplied mains cables into the Power sockets on the rear of the two units. VideoJet 1000...
Page 22 Installation Mounting of a single unit Mounting of twin units VideoJet 1000...
Page 23: Connections
Connections Camera Any standard video source (CCTV camera) can be connected to the VideoJet 1000. All cameras and any video source which deli- vers a standard PAL or NTSC signal are suitable. " Connect the camera or other video source using video cable (75 Ohm, BNC connector) to the BNC socket Video In.
Page 24 Replace the connector firmly back onto the Input socket. Switched output The VideoJet 1000 is provided with a relay output for switching external equipment, e.g. lamps or acoustic alarms. This switched output can be manually activated during an active connection with the VideoJet 1000.
Page 25 Installation Microphone/ The VideoJet 1000 is provided with an audio interface via the two loudspeaker stereo jack sockets. The bidirectional audio signals are simultaneously transmitted along with the video signals. This can be used to drive a loud- speaker or door communication system as required.
Page 26 RS422/485 RS232 RxD+ (receive data) (receive data plus) (receive data) TxD- (transmit data) (transmit data (transmit data) minus) GND (ground) GND (ground) GND (ground) TxD+ (ready to send) (transmit data plus) RxD- (clear to send) (receive data minus) VideoJet 1000...
Page 27: Switching On/Off
Installation Switching on/off Mains connection Included with the VideoJet 1000 is a power cable with the correct matching plug. Warning! Ensure that the mains supply is free from interference such as over voltages, spikes, or brownouts by using suitable mains conditioners where necessary.
Page 28: Setup Using A Terminal Program
Setup using a terminal program Data terminal A data terminal may be connected to the VideoJet 1000 for setup and local control. The data terminal usually consists of a computer with suitable terminal software. A standard serial cable is required for the connection.
Page 29 [ENTER] key to transmit the value to the VideoJet 1000. IP address To operate the VideoJet 1000 on a network, an IP Address valid for the network must be provided. The following address has been preset at the factory: 192.168.0.1...
Page 30 Installation Additional Using the terminal program, additional basic parameters can be parameters checked and modified where necessary. The onscreen commands displayed in the various submenus are used for this purpose. VideoJet 1000...
Page 31: Chapter 5 Configuration With
In order to decode live video images, the required special ActiveX control must be installed on the computer. The latest version of the ActiveX control can be obtained from VCS customer service or from the Internet via the download site under www.vcs.com.
Page 32: Selecting The Configuration Mode
CD folder in Windows Explorer and double click on mpegax.exe. " Follow the onscreen instructions. Establishing To use the VideoJet 1000 on a network, it must be provided with an the connection IP address. The following address has been preset at the factory: 192.168.0.1...
Page 33 (e.g. software updates) can only be carried out in this Expert Mode. Configuration On the livepage, click on the top of the window on the link start-up Settings. A new page will be opened and the required installation mode can be selected on the menu line: VideoJet 1000...
Page 34: Installation Wizard
Configuration with Web Browser Installation wizard The installation wizard of the VideoJet 1000 guides you step by step through the necessary procedures. Wizard start-up The installation wizard can be started by clicking on the link Settings on the livepage. "...
Page 35 The original settings are retained if the button Cancel is clicked. Warning! Carry on with the installation wizard to the final screen if possible. This is the only location where all of the changes made can be stored by clicking on the button Finish. VideoJet 1000...
Page 36 Select the option Yes to start the application wizard. " Click on the button Finish to close the installation wizard. The setup changes are stored and the application wizard is started immediately. The application wizard behaves in a similar manner to that of the installation wizard. VideoJet 1000...
Page 37: System Overview
Click in one of the text fields to enter a value or use any of the other entry methods, e.g. buttons, check boxes or list fields. " To close a window without storing any of the changes entered, click on the Symbol X in the title bar of the window. VideoJet 1000...
Page 38 Store the changes entered in each window using the button Set. Clicking on the Set button only stores the changes made in that par- ticular window. The individual windows, which can be opened by means of the graphical symbols, are described below. VideoJet 1000...
Page 39 Transparent. Note When a device is selected, the settings for the serial port 1 are recalled and the parameters are automatically entered in the window COM 1 settings and should not be changed. VideoJet 1000...
Page 40 VideoJet 1000. Alarm on min. contrast: The VideoJet 1000 can trigger an alarm in case the camera picture shows only little contrasts, e.g. when the lens was sprayed with color or covered. Choose the option On to activate this function.
Page 41 If required, click on the button Defaults, to reset all values on this page to standard values. " When configuration of the video sensor is complete, click on the link Overview on the navigation bar to return to the graphical overview. VideoJet 1000...
Page 42 (cells indicated in red). " Using the left mouse button, click in those cells which are to be acti- vated. Activated cells are indicated in red. " If required, click on the button Select all to monitor the entire video frame. VideoJet 1000...
Page 43 Alarm indicator To prevent false alarms, a motion signal can be matched to a given alarm threshold. In this way, for example, it is possible to filter out effects caused by the background noise generated in the camera itself. VideoJet 1000...
Page 44 Note the movements indicated by the arrow in the video image over a long period and at all light levels likely to be encountered in prac- tice. " Click the check box in order to activate the corresponding direc- tional component. VideoJet 1000...
Page 45 After selection of a device, the remaining parameters in the window are automatically set and should not be altered. Baud rate: Select the value for the Transmission rate in bits/s. Data bits: Select the number of data bits per character. VideoJet 1000...
Page 46 Select the function for serial port 2. Select Terminal if the unit is to be operated from a terminal. If the port is required to transmit trans- parent data, select the entry Transparent. Baud rate: Select the value for the Transmission rate in bits/s. VideoJet 1000...
Page 47 For devices which also function as a receiver, select the video stan- dard for monitor output (PAL or NTSC). Video/Audio synchronicity: Choose Synchron when you emphasize synchronicity of video and audio resp. Low delay when the main focus is on quickest possible transmission. VideoJet 1000...
Page 48 If, for example, a lamp is switched on by an alarm and is to remain on when the alarm has ended, select Bistable. If an acoustic signal activated by an alarm is to remain on for a period of, for example, 10 sec, select Monostable 10 s. VideoJet 1000...
Page 49 The relay can be assigned a name from here. The name will be shown on the Overview page and, dependent upon configuration, also on the livepage. Trigger relay: Click on the button Relay to manually switch the relay (e.g. for test purposes or to operate a door opener). VideoJet 1000...
Page 50 Select here the option On in order to activate the alarming by means of an external alarm sensor. Otherwise select Off. Input active state: Here can be specified whether the alarm is to be activated by a High or Low voltage level. VideoJet 1000...
Page 51 5 MBit/s transmission rate with high picture quality 2MBPS with audio 2 MBit/s transmission rate with associated audio recording 3.5MBPS with audio 3.5 MBit/s transmission rate with associated audio recording " Select the desired option from the list. VideoJet 1000...
Page 52 DSL connections ISDN (2B) for ISDN connections over two B channels ISDN (1B) for ISDN connections over one B channel MODEM for analoge modem connections for GSM connections " Select the desired option from the list. VideoJet 1000...
Page 53 Choose On if you wish for transmission of audio data. Alarm connections Options are provided to specify the behavior of the VideoJet 1000 in the event of an alarm. The VideoJet 1000, for example, can establish the connection to a predefined IP address (VideoJet 1000 receiver or PC with receiver software) automatically.
Page 54 Select here the option On if it is required to display a text in case of an alarm. Displayed alarm message: Enter the text that is to be displayed in case of an alarm. It can con- tain up to 31 characters. VideoJet 1000...
Page 55 The hard disk of the VideoJet 1000 can handle up to 8 partitions, configured in the same way a typical hard disk for a computer is.
Page 56 You can only activate one partition on the hard disk at a time for recording. Activation of another partition is not automatic, it must be done manually. " Click on the button Add partition to start the wizard. VideoJet 1000...
Page 57 Click on the Cancel button to end the wizard without accepting the changes. Making changes To activate the changes made with the wizard you have to click the Finish button on the last page. If you click the Cancel button the previous settings will remain unaf- fected. VideoJet 1000...
Page 58 Recording format: Here you choose the recording format of the partition: MPEG-2, MPEG-4 or I-Frames. Video quality: You can choose for each compression format between several dif- ferent transfer rates thereby deciding what level of video quality you desire. VideoJet 1000...
Page 59 (QCIF) low resolution for connections with high bandwidth for DSL connections ISDN (2B) for ISDN connections over two B channels ISDN (1B) for ISDN connections over one B channel MODEM for analoge modem connections VideoJet 1000...
Page 60 If you have chosen to use the entire hard disk as one partition or you are configuring the last partition you require just click the Use all check box. The rest of the hard disks capacity will then be con- figured into that partition for use. VideoJet 1000...
Page 61 This will open the Partition Property window with the information on the partition selected. " Make the necessary changes. " Save the changes you have made by clicking the Set button " Stop any changes from being activated by clicking on the Cancel button. VideoJet 1000...
Page 62 Changes to the partition settings are saved by clicking on the Set button. Only then are they transmitted to the VideoJet 1000. VideoJet 1000...
Page 63 Start button. Note You can only activate one partition on the hard drive at a time. The activation of a different partition is not possible automatically. Only manual activation is possible. VideoJet 1000...
Page 64 This is where you program the time spans where the alarm trig- gered recordings will be active. The VideoJet 1000 disposes of a special recording mode for alarm recording to optimize storage capacity utilization: with the begin- ning of a respective time slot continuous recording starts on a seg- ment the size of a complete alarm sequence (pre- and post-alarm).
Page 65 Recording activ: This is a quick way to know if currently recording on the hard drive is active. In this case the symbol for the hard drive is animated. If it is not animated no recording is taking place. VideoJet 1000...
Page 66 This name will be displayed in the video image, depending on the configuration. Note The unit name is used to identify the device remotely, for example, in the event of an alarm. Assign a designation which easily and unambiguously identifies the unit location. VideoJet 1000...
Page 67 Enter the new password again to rule out the risk of typing errors. System date and System time: If a number of VideoJet 1000 units are combined in a system, it is important that the internal clocks of the separate units are all syn- chronized.
Page 68 VideoJet 1000. Time zone and Time server IP address: The VideoJet 1000 can receive a time signal from a TIME server (NTP server) and use it to set the internal clock. The device calls up the time signal automatically every two hours.
Page 69 The settings on this page are used to integrate the unit into an exist- ing network. Internet IP address: Enter here the required IP address for the VideoJet 1000. The IP address must be valid for the network. Warning! Changes in IP address, subnet mask and/or gateway IP address...
Page 70 Multicast streaming: Along with a 1:1 connection between a transmitter and a receiver, (unicast) the VideoJet 1000 provides the option of connecting a number of receivers to simultaneously receive the video signal. This is achieved either by a duplication of the data stream in the unit...
Page 71 Configuration with Web Browser The VideoJet 1000 supports for MPEG-4 the multi-unicast opera- tion up to a maximum of 5 simultaneously connected receivers. For MPEG-2 only one multi-unicast connection is possible. The transparent data connection is maintained from the first unit.
Page 72 Multicast packet TTL: By setting the parameter you determine the life span of the data packets in the network. If multicast is operated over a router the value must be greater than 1 to guarantee transmission of the packets. VideoJet 1000...
Page 73 C:\Images\Logo.gif, for access to an Internet/Intranet file, for example, http://www.vcs.com/ images/logo.gif). Note that with Internet/Intranet access, the connection must be maintained in order to continually display the image. The image files are not stored in the VideoJet 1000. VideoJet 1000...
Page 74 Save alarm logfile to harddisk: Select this option to store alarm data in a text file on the local com- puter. These text files can be viewed in the usual Office programs (for example, MS Word or MS Excel), and printed out. VideoJet 1000...
Page 75 When you activate the option to store log files (e. g. Save alarm logfile to harddisk), these are placed on the Desktop as text files in the basic setup. In the Expert Mode the path for storing can be changed (see page 116). VideoJet 1000...
Page 76: Expert Mode
Configuration with Web Browser Expert Mode In the Expert Mode, all parameters of the VideoJet 1000 can be configured. If any of the configuration pages are called up, the current settings will be displayed. The settings can be altered by entering new values or by selecting from a predefined value in a list field.
Page 77 Password settings Password level: The access to a VideoJet 1000 is generally protected with a pass- word in order to prevent unauthorised use of the device. The trans- mitters operate with three authorisation levels: Live, Service and User.
Page 78 If a number of VideoJet units are combined in a system, it is impor- tant that the internal clocks of the separate units are all synchro- nized. Only if all units operate with the same time it is possible, for example, to correctly identify and evaluate events which have occurred simultaneously. VideoJet 1000...
Page 79 VideoJet 1000 with the system time of your com- puter. Time server The VideoJet 1000 can receive a time signal from a TIME server (NTP server) and use it to set the internal clock. The device calls up the time signal automatically every two hours.
Page 80 Custom. If you do not wish time and date to be dis- played, select Off. Alarm mode stamping: Select here the option On if it is required to display a text in case of an alarm. VideoJet 1000...
Page 81 Picture contrast: You can adjust the contrast of the video picture to suit the working environment. Picture saturation: You can use this function to set the color saturation and achieve the most realistic color reproduction on the monitor. VideoJet 1000...
Page 82 You can change these profils individually by inserting the parameter values wanted. It is advisable to give a new name to the modified profile to facilitate recognition. The profile is active when the param- eter values have been transmitted to the VideoJet 1000 clicking on the button Set. "...
Page 83 (I- and P-frames) or low use of bandwidth (B- frames, too). GOP length: If not only I-frames are transmitted here you can define how many frames a group shall include up to the proximate I-frame. VideoJet 1000...
Page 84 You can change these profils individually by inserting the parameter values wanted. It is advisable to give a new name to the modified profile to facilitate recognition. The profile is active when the param- eter values have been transmitted to the VideoJet 1000 clicking on the button Set. "...
Page 85 Auto for automatic quality setting. I-Frame quality settings: You can define the I-frame quality by choosing the option Manual and moving the slider to the desired setting, or by activating the option Auto for automatic quality setting. VideoJet 1000...
Page 86 Choosing 4 e.g. only every fourth frame is encoded, the fol- lowing three frames are skipped. Especially with narrow bandwidth this can be of advantage. Video resolution: Select the desired resolution. MPEG-4 audio: Choose On if you wish for transmission of audio data. VideoJet 1000...
Page 87 Choose On to display a text in case of transmission disturbances. Disturbance sensitivity level: Here you can define at what level the text display is triggered. Notification text: Enter the text that is to be displayed on the monitor. It can contain up to 31 characters. VideoJet 1000...
Page 88 FTP server. These images can be called up again later, thus enabling for example alarm events to be reconstructed. JPEG format: Here you can choose the format of the JPEG pictures: 176 × 144 pixel 352 × 288 pixel 704 × 288 pixel 704 × 576 pixel VideoJet 1000...
Page 89 Enter your login name for the FTP server here. FTP password: Enter the password for the access to the FTP server here. Path on FTP server: Enter the exact path here under which the images are to be stored on the FTP server. VideoJet 1000...
Page 90 The hard disk of the VideoJet 1000 can handle up to 8 partitions, configured in the same way a typical hard disk for a computer is.
Page 91 Click on the text field to insert values or use other available controls as buttons, scrollbars or check boxes. " Once you have made your choice click the Next >> button to go to the next page. " Click the << Back button to return and view the previous page. VideoJet 1000...
Page 92 For every partition that is created on the hard disk the wizard must be completed from beginning to end. Therefore after starting the wizard you are asked for the total num- ber of partitions you want to install. The wizard will be restarted automatically until all partitions are configurated. VideoJet 1000...
Page 93 3.5 MBit/s transmission rate with high picture quality 5MBPS high quality 5 MBit/s transmission rate with high picture quality 2MBPS with audio 2 MBit/s transmission rate with associated audio recording 3.5MBPS with audio 3.5 MBit/s transmission rate with associated audio recording VideoJet 1000...
Page 94 E.g. if the maximum storage capacity of the partition allows for a recording of 24 hours to be saved the recordings will then run in a continues 24 hour loop. Only the last 24 hours of recordings will be able to be viewed. VideoJet 1000...
Page 95 This will open the Partition Property window with the information on the partition selected. " Make the necessary changes. " Save the changes you have made by clicking the Set button " Stop any changes from being activated by clicking on the Cancel button. VideoJet 1000...
Page 96 The complete recording time or the partition size can only be changed using the wizard. However all data stored on the partition will be lost. VideoJet 1000...
Page 97 Changes to the partition settings are saved by clicking on the Set button. Only then are they transmitted to the VideoJet 1000. VideoJet 1000...
Page 98 To do so mark one or more time slots for each day by dragging with the depressed mouse button. By clicking on the Clear button all previously set time slots will be cancelled, clicking on the Set button will transmit the data to the VideoJet 1000. VideoJet 1000...
Page 99 This is where you program the time spans where the alarm trig- gered recordings will be active. The VideoJet 1000 disposes of a special recording mode for alarm recording to optimize storage capacity utilization: with the begin- ning of a respective time slot continuous recording starts on a seg- ment the size of a complete alarm sequence (pre- and post-alarm).
Page 100 Alarm on min. contrast: The VideoJet 1000 can trigger an alarm in case the camera picture shows only little contrasts, e.g. when the lens was sprayed with color or covered. Choose the option On to activate this function.
Page 101 SNMP-traps. Alarm connections Options are provided to specify the behavior of the VideoJet 1000 in the event of an alarm. The VideoJet 1000, for example, can establish the connection to a predefined IP address (VideoJet 1000 receiver or PC with receiver software) automatically.
Page 102 IP address after each restart, e.g. after a connection breakdown or network dropout. Direction of alarm connection: Select here if an outgoing, incoming or bidirectional connection is to be established in case of an alarm. VideoJet 1000...
Page 103 Configuration with Web Browser Motion detector The VideoJet 1000 contains an integrated video sensor, which on the basis of the video processing can register changes in the video signal. These changes are primarily initiated by movement in the field of view of the camera.
Page 104 If required, click on the button Select all to monitor the entire video frame. " Using the right mouse button, click on those cells which are to be deactivated. Inactivated cells are indicated in white. " Click on the button Set to store the configuration. VideoJet 1000...
Page 105 The blue line indicates the alarm threshold. Any value greater than this will produce an alarm signal. The components of the motion signal generating the alarm are indicated in red. The alarm thresh- old can be varied to suit individual requirements. VideoJet 1000...
Page 106 Note the movements indicated by the arrow in the video image over a long period and at all light levels likely to be encountered in prac- tice. " Click the check box in order to activate the corresponding direc- tional component. VideoJet 1000...
Page 107 If, for example, a lamp is switched on by an alarm and is to remain on when the alarm has ended, select Bistable. If an acoustic signal activated by an alarm is to remain on for a period of, for example, 10 sec, select Monostable 10 s. VideoJet 1000...
Page 108 The relay can be assigned a name from here. The name will be shown on the Overview page and, dependent upon configuration, also on the livepage. Trigger relay: Click on the button Relay 1 to manually switch the relay (e.g. for test purposes or to operate a door opener). VideoJet 1000...
Page 109 Baud rate: Select the value for the Transmission rate in bits/s. Data bits: Select the number of data bits per character. Stop bits: Select the number of stop bits per character. Parity check: Select the type of parity check. VideoJet 1000...
Page 110 Baud rate: Select the value for the Transmission rate in bits/s. Data bits: Select the number of data bits per character. Stop bits: Select the number of stop bits per character. Parity check: Select the type of parity check. VideoJet 1000...
Page 111 The settings on this page are used to integrate the unit into an exist- ing network. Unit IP address: Enter here the required IP address for the VideoJet 1000. The IP address must be valid for the network. Warning! Changes in IP address, subnet mask and/or gateway IP address...
Page 112 There can be failures like image interferences and the like if the set- ting of the VideoJet 1000 differs from the setting of the connected switch, e.g. if the switch is set on Auto but the VideoJet 1000 is set on 10 MBit/s HD.
Page 113 Multicast streaming: Along with a 1:1 connection between a transmitter and a receiver, (unicast) the VideoJet 1000 provides the option of connecting a number of receivers to simultaneously receive the video signal. This is achieved either by a duplication of the data stream in the unit...
Page 114 With the settings Multicast streaming: On and Multicast group IP address: 0.0.0.0 the VideoJet 1000 operates in the multi-unicast mode (duplication of the data stream in the unit). With the settings Multicast streaming: On and a valid multicast group IP address, the unit operates in the multicast mode (duplication of the data stream over the network).
Page 115 Keep a record of these numbers in case technical assistance is required. Hardware version: The hardware version number of the VideoJet 1000 is shown. Software version: The software version number of the VideoJet 1000 is shown.
Page 116 Note that with Internet/Intranet access, the connection must be maintained in order to continually display the image. The image files are not stored in the VideoJet 1000. If it is required to recall the original image, simply delete the entries in the fields Startpage background URL and Startpage logo URL.
Page 117 Save event logfile to harddisk: Select this option to store event data in a text file on the local com- puter. These text files can be viewed in the usual Office programs (for example, MS Word or MS Excel), and printed out. VideoJet 1000...
Page 118 Enter here the path to the storage location for the jpeg-snapshots and video sequences which can be stored from the Livepage or the HDD-Replay (only VideoJet 1000 " If necessary, click on the button Search in order to find a suitable folder.
Page 119 Configuration with Web Browser Software update Software upload: The VideoJet 1000 is designed in such a way that its functions and parameters can be updated with firmware. In such cases, transmit the updated firmware package via the selected network to the device.
Page 120 Enter the complete directory path of the file to be uploaded or click on the button Durchsuchen... to select the desired file. " Make sure the download file is taken from a VideoJet 1000 device. " Click on the button Upload to start the transmission of the file to the device.
Page 121: Function Test
The VideoJet 1000 provides a multiplicity of configuration possibili- ties. Check, therefore, for correct operation of the unit after installa- tion and configuration. Only in this way is it possible to ensure that the VideoJet 1000 will operate correctly in an alarm situation. Check under the following headings:...
Page 122 Configuration with Web Browser VideoJet 1000...
Page 123: Chapter 6 Operation
Operation Operation with MS Internet Explorer The reception of live video images sent from the VideoJet 1000 and the replay of sequences saved on the local hard disk are possible on a computer with installed Microsoft Internet Explorer (Version 5 or higher).
Page 124 CD folder in Windows Explorer and double click on mpegax.exe. " Follow the onscreen instructions. Establishing To use the VideoJet 1000 on a network, it must be provided with an the connection IP address. The following address is factory installed: 192.168.0.1...
Page 125 With established connections, the video image is displayed in the middle of the browser window. Depending upon configuration, other information may also appear in the display (see page 122). The VideoJet 1000 provides either a live image (MPEG format) or single video frames in JPEG format. "...
Page 126 5 snapshots is generated and displayed above the live picture. The snapshots can be updated anytime by clicking into the pictures with the right mouse button and selecting Start scan. The update can be canceled by selecting Stop scan out of the same menu. VideoJet 1000...
Page 127: Storing Snapshots
" In the field for the Internet address (URL), enter the IP address of the VideoJet 1000, followed by the command /snap.jpg (for example: http://192.168.0.12/snap.jpg). " Press the return key on the computer. A single frame image will be displayed in a new window.
Page 128: Storing Mpeg Sequences
Harddisk activity When a program is running in the background to make an auto- matic recording on the hard disk of the VideoJet 1000, the hard disk symbol changes to act as an indicator. The hard disk symbol is animated to show that recording is in progress.
Page 129: Playback Of Recorded Sequences
Click on any of the listed sequences to start the playback of that recording in the viewing window. VideoJet 1000...
Page 130 Detailed information on date and time is provided by the indicator below the video bar. VideoJet 1000...
Page 131 100% gives regular velocity, lower val- ues decelerate, higher values accelerate. Red strips on the video bar indicate alarm activations. You can quickly jump to the alarm activations using the control buttons or the yellow slider. VideoJet 1000...
Page 132: Back-Up
Operation Back-up You can save video recordings that are on the hard drive of the VideoJet 1000 directly to the hard drive of your computer as back-up. First choose which sequence you would like to save to your com- puters hard drive as described above. The following buttons are for...
Page 133: Hardware Connections
Operation Hardware connections between VideoJet Units A VideoJet 1000 with connected camera as a transmitter and a VideoJet 1000 with connected monitor as a receiver can be linked simply together over an Ethernet network. It is thus possible to link large distances with little installation or cabling effort.
Page 134: Operation With Software-Decoder
It runs under the Windows operating system. It primarily provides decoding of video, audio and control data received from a remote transmitter. During operation of a VideoJet 1000 with VIDOS, a multiplicity of operating and configuration options are offered. For details, see the documentation provided with the software.
Page 135: Chapter 7 Maintenance
IP. Repair Warning! Never open the housing of the VideoJet 1000. The unit has no user serviceable parts, which can be repaired or exchanged. Ensure that only qualified, specialist personnel (electrical techni- cians) are permitted to carry out maintenance or repair work or con- tact the VCS Service centre.
Page 136: Passing On, Disposal
Maintenance Passing on, Disposal The VideoJet 1000 should only be passed on together with these manual. The unit contains environmentally harmful materials, which must be disposed of in accordance with legal requirements. Faulty units and parts, which are no longer required, should be dis- posed of professionally or, if necessary, contact the local authori- ties for the disposal of harmful objects and substances.
Page 137: Chapter 8 Appendix
Faults – possible causes and remedy If a fault can not be cleared, please contact the Customer Service from VCS (Support@vcs.com). The version numbers of the internal processors can be shown on a special page. Note this information before contacting the Customer Service.
Page 138 The unit is not ready Voltage failure while the Replace the device and have it for operation after firm- update file is being pro- checked by VCS. ware upload. grammed. VideoJet 1000...
Page 139: Leds
Appendix LEDs The VideoJet 1000 video server is equipped with several LEDs which indicate the operating status and can give indications of pos- sible faults: Flashing red: Data is transmitted to or from the hard drive VIDEO Lit green: A video signal is present at the input.
Page 140: Glossary
Hypertext Markup Language Multiplexer to connect a number of Ethernet units to a 10 BASE-T segment ICMP Internet Control Message Protocol Identification: machine readable number or name IEEE Institute of Electrical and Electronics Engineers IGMP Internet Group Management Protocol VideoJet 1000...
Page 141 It is usually expressed in dot- ted-decimal notation, e.g. 255.255.255.192 Network address A proposal for IP address reuse, where the local translator IP address is mapped to a globally unique address. VideoJet 1000...
Page 142 Uniform Resource Locator Unshielded Twisted Pair V.24, RS-232 A list of definitions for the transmission between DTE and DCE See Wide area network Wide area network A long distance link used to extend or connect remotely located local area networks VideoJet 1000...
Page 143: Specifications
3.5 mm jack bush 3 V , stereo, approx. 50 kOhm Audio output 3.5 mm jack bush 2.5 V , stereo, 60 mW, min. 8 Ohm Data interface 1 × RS232/RS422/RS485, bidirectional, 9-pin sub-D, 1 × RS232, bidirectional, 9-pin sub-D VideoJet 1000...
Page 144 CE: IEC 60950, UL 1950, J 60950, AS/NZS 3548, EN 55103-1,-2, EN 55130-4, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 47 CFR Ch. 1 Part 15 Dimensions (w × h × d) 204.6 × 43.9 × 301.8 mm Weight approx. 2,700 g VideoJet 1000...
Page 145 Banner 71 Brightness 80 Browser window 123 Buttons 129 Cabinet installation 17 Calendar clock 65 Camera 21 Camera name 37 Changes 36 Closing contact 21 Color saturation 79 Configuration setting 118 Connection 122 Contrast 79 Control 37 Conventions 5 VideoJet 1000...
Page 146 Electromagnetic Compatibility 6 EPROM 117 Equipment cabinets 12 False alarm 39 Firewall 68 Front panel 16 FTP server 86 Function test 119 Functional overview 12 Gateway 68 Heat 18 Heat load 17 Identification 7 IGMP 69 Image resolution 125 VideoJet 1000...
Page 147 Maintenance 10 Microphone 23 Monitor 21 Monitor name 45 Motion detector 40 Movement alarm 38 Multicast 68 Multicast connection 68 Multicast Function 13 Multicast port 69 Multi-unicast 68 Name 64 Network 21 Network connection 25 NTP server 66 VideoJet 1000...
Page 148 Rear panel 15 Receiver 12 Regulations 5 Relay output 22 Relay switch 47 Remote control 13 Remote password 52 Repair 10 Requirements 11 Router 70 Saturation 79 Signal source 22 snap.jpg 125 SNMP 53 Specifications 141 Subnet mask 68 VideoJet 1000...
Page 149 Time signal 66 Time zone 66 Transmission parameter 26 Transmission rate 43 TTL 70 Typographic conventions 6 UDP 68 Unicast 68 Unit name 64 Upload file 117 URL 30 Version 113 Video sensor 38 Video source 21 Video standard 45 VideoJet 1000...
Page 150 Index VideoJet 1000...

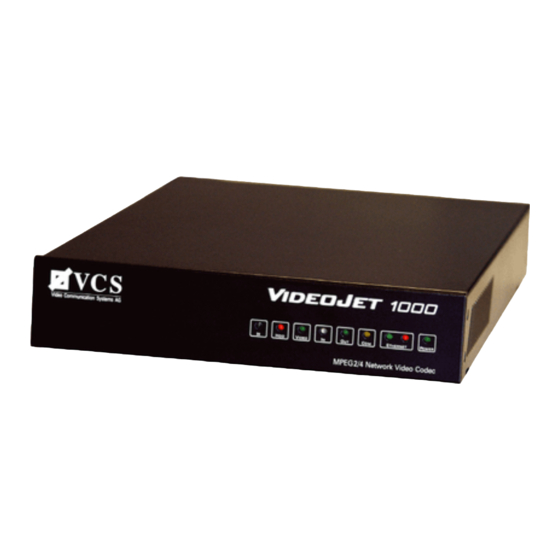

Page 151 VideoJet 1000...
Page 152 VCS Video Communication Systems AG Forchheimer Str. 4, 90425 Nuremberg/Germany Phone: +49 911 93456 0 Fax: +49 911 93456 66 http://www.vcs.com ID-Nr.: 7100/0503/0/5...
