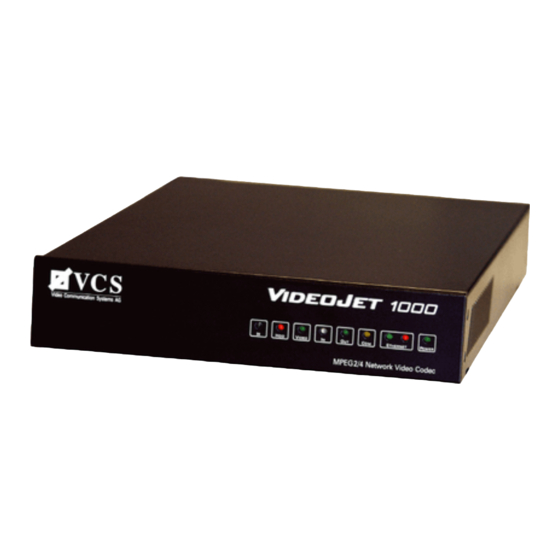

VCS VideoJet 1000 Manual

Hide thumbs Also See for VideoJet 1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
VideoJet 1000
Manual

Advertisement

Table of Contents
loading

Related Manuals for VCS VideoJet 1000

Summary of Contents for VCS VideoJet 1000

  • Page 1 VideoJet 1000 Manual...
  • Page 2 Because of the further development of pro- ducts, the content of the manual might change without prior notice. VCS will not be liable for damage which is directly or indirectly due to errors, incompleteness, or discrepancies between the manual and the product described.

  • Page 3: Table Of Contents

    Switching on/off ........26 Setup using a terminal program ......27 VideoJet 1000...
  • Page 4 Index ..........103 VideoJet 1000...

  • Page 5: Chapter 1 Preface

    Preface These Installation and Operating Instructions are intended for per- sons authorised to install and operate the VideoJet 1000. Interna- tional, national and any relevant regional regulations relating to electronics must be observed at all times. The Operating Instruc- tions explain the installation and operation of the VideoJet 1000.
  • Page 6 The following typographic conventions are used in this manual: Configuration Window and menu names, parameters and buttons [Enter], [C] Key names [Ctrl] + [C] Two or more keys that are pressed simul- taneously. Command line input and output ping VideoJet 1000...

  • Page 7: Intended Use

    Preface Intended use The Network Video Server VideoJet 1000 serves to transmit video, audio and control signals via data networks (Ethernet LAN, Inter- net). It is designed for use in CCTV systems. The connection of an external alarm generator allows various functions to be triggered automatically.
  • Page 8 Preface VideoJet 1000...

  • Page 9: Chapter 2 Safety Information

    – if the server has been exposed to rain or moisture, – if objects have penetrated inside the unit, – after long storage under improper conditions or – after heavy demands during transport. Have the system checked by VCS in such cases. VideoJet 1000...

  • Page 10: Installation And Operation

    All other work beyond this may lead to injuries to per- sons and damage to the system or other equipment. Repairs and maintenance Never open the housing of the VideoJet 1000. The unit contains no parts which you can repair or replace. Ensure that only qualified, specialist personnel (electrical techni- cians) are permitted to carry out maintenance or repair work.

  • Page 11: Chapter 3 Product Description

    Product Description Supplied components Network Video Server VideoJet 1000 incl. mains cable RS232 Null modem cable Patch cable Brief description “First Steps” German/English German/English handbook on CD-ROM VCS software on CD-ROM System requirements Computer with Windows 98/2000/XP operating system and...

  • Page 12: Operational Requirements

    CCTV installations via local networks can be achieved. The VideoJet 1000 is designed either as a desktop unit or for buil- ding into equipment cabinets. Using the appropriate mounting frame, installation of a single unit or two units alongside each other on a 19“...
  • Page 13 Similarly, firmware updates and rapid loading of equipment configu- rations are also possible. Snapshots Individual video frames (snapshots) can be called up in JPEG for- mat by the VideoJet 1000, stored on the computer hard drive or can be displayed in a separate browser window. VideoJet 1000...
  • Page 14 Product Description Summary The main functions of the VideoJet 1000 can be summarized as follows: Video, audio and data transmission via IP data nets Multicast function for simultaneous transmission to a number of receivers Analog BNC composite video input (PAL/NTSC)

  • Page 15: Rear Panel Connectors

    (protocols RS232, RS422 and RS485) and for configuration using terminal software 6 Serial interface port COM2: RS232 9-pin sub-D socket (m) for configuration using terminal software 7 RJ45 Ethernet connector for connecting to the network 8 Socket Power mains cable connector VideoJet 1000...

  • Page 16: Front Panel

    LED lights up with physical network connection yellow LED flashes when data packets are being transmitted 16 LED POWER lights up green to indicate operationally ready Additional information on the LEDs can be found on page 97. VideoJet 1000...

  • Page 17: Chapter 4 Installation

    Installation Due to its compact design and small footprint, the VideoJet 1000 can be used as a desk top unit occupying minimum space. Using the mounting shelf unit, Accessory Kit 19“ Rack, it is also possible to mount the unit into a standard 19“ equipment cabinet.

  • Page 18: Rack Mounting

    When installing additional equipment, direct contact with the VideoJet 1000 is only permitted if the surface temperature of the neighboring equipment does not exceed +50 °C. VideoJet 1000...
  • Page 19 Mount the units into the rack and secure the angle brackets using four screws. Plug the supplied mains cables into the Power sockets on the rear of the two units. VideoJet 1000...
  • Page 20 Installation Mounting of a single unit Mounting of twin units VideoJet 1000...

  • Page 21: Connections

    Camera Any standard video source (CCTV camera) can be connected to the VideoJet 1000. All cameras and any video source which deli- vers a standard PAL or NTSC signal are suitable. Connect the camera or other video source using video cable (75 Ohm, BNC connector) to the BNC socket Video In.
  • Page 22 Insert conductor into connector and secure tightly – check that screws are securely tightened. Replace the connector firmly back onto the Output socket. Microphone/ The VideoJet 1000 is provided with an audio interface via the two loudspeaker stereo jack sockets. The bidirectional audio signals are simultaneously transmitted along with the video signals.
  • Page 23 Installation Data interfaces The bidirectional data interface ports are intended as control ports for equipment connected to the VideoJet 1000, e.g. a dome camera with motorized lens. The port COM1: RS232/485 supports RS232, RS422 and RS485 transmission protocols. The availability of equipment which can be controlled in this way is constantly being extended.

  • Page 24: Switching On/Off

    Installation Switching on/off Mains connection Included with the VideoJet 1000 is a power cable with the correct matching plug. Warning! Ensure that the mains supply is free from interference such as over voltages, spikes, or brownouts by using suitable mains conditioners where necessary.

  • Page 25: Setup Using A Terminal Program

    Setup using a terminal program Data terminal A data terminal may be connected to the VideoJet 1000 for setup and local control. The data terminal usually consists of a computer with suitable terminal software. A standard serial cable is required for the connection.
  • Page 26 [ENTER] key to transmit the value to the VideoJet 1000. IP address To operate the VideoJet 1000 on a network, an IP Address valid for the network must be provided. The following address has been preset at the factory: 192.168.0.1...
  • Page 27 Installation Additional Using the terminal program, additional basic parameters can be parameters checked and modified where necessary. The onscreen commands displayed in the various submenus are used for this purpose. VideoJet 1000...
  • Page 28 Installation VideoJet 1000...

  • Page 29: Chapter 5 Configuration With Web Browser

    In order to decode live video images, the required special ActiveX control must be installed on the computer. The latest version of the ActiveX control can be obtained from VCS customer service or from the Internet via the download site under www.vcs.com.
  • Page 30 CD folder in Windows Explorer and double click on Setup.exe. Follow the onscreen instructions. Establishing To use the VideoJet 1000 on a network, it must be provided with an the connection IP address. The following address has been preset at the factory: 192.168.0.1...

  • Page 31: Selecting The Configuration Mode

    VideoJet 1000 or to check the current setup: the Installation Wizard the System Overview the Expert Mode. All settings are retained in VideoJet 1000 memory, so that they remain stored even with power interruptions. Installation For initial setup of the unit, operation with the installation wizard is Wizard recommended.

  • Page 32: Installation Wizard

    Configuration with web browser Installation wizard The installation wizard of the VideoJet 1000 guides you step by step through the necessary procedures. Wizard start-up The installation wizard can be started by clicking on the link Settings on the Live page.
  • Page 33 The original settings are retained if the button Cancel is clicked. Warning! Carry on with the installation wizard to the final screen if possible. This is the only location where all of the changes made can be stored by clicking on the button Finish. VideoJet 1000...
  • Page 34 Select the option Yes to start the application wizard. Click on the button Finish to close the installation wizard. The setup changes are stored and the application wizard is started immediately. The application wizard behaves in a similar manner to that of the installation wizard. VideoJet 1000...

  • Page 35: System Overview

    Click on one of the graphic symbols. A new window will open up. Click in one of the text fields to enter a value or use any of the other entry methods, e.g. buttons, check boxes or list fields. VideoJet 1000...
  • Page 36 Store the changes entered in each window using the button Set. Clicking on the Set button only stores the changes made in that par- ticular window. The individual windows, which can be opened by means of the graphical symbols, are described below. VideoJet 1000...
  • Page 37 COM 1 settings and should not be changed. Video loss alarm: Select the option On to monitor the input signal from the video source (camera). If the signal drops out an alarm is generated on the VideoJet 1000. VideoJet 1000...
  • Page 38 (e.g. with a T-plug). Video sensor The VideoJet 1000 contains an integrated video sensor, which on the basis of the video processing can register changes in the video signal. These changes are primarily initiated by movement in the field of view of the camera.
  • Page 39 Each of these cells can be activated or deactivated. If it is necessary to exclude particular regions of the camera field of view from the monitoring process because of, say, continuous move- ment (e.g. due tree movement in a wind), the relevant cells can be deactivated. VideoJet 1000...
  • Page 40 In this way, it is possible to prevent generating a false alarm, e.g. by a bird flying across the surveillance area. Select the desired value by moving the slider to the desired position with the mouse key held down. VideoJet 1000...
  • Page 41 You can acti- vate the motion detection and select the direction of movement required to generate an alarm. Select here the option On, in order to activate the motion tracking feature of the video sensor. VideoJet 1000...
  • Page 42 Click the check box in order to activate the corresponding direc- tional component. Serial port COM 1 The parameters for the serial interface port COM1: RS232/485 can be configured to suit individual requirements. VideoJet 1000...
  • Page 43 Select the number of data bits per character. Stop bits: Select the number of stop bits per character. Parity check: Select the type of parity check. Interface mode: Select the desired protocol for the serial port. Half-duplex mode: Select here to suit the individual application. VideoJet 1000...
  • Page 44 Baud rate: Select the value for the Transmission rate in bits/s. Data bits: Select the number of data bits per character. Stop bits: Select the number of stop bits per character. Parity check: Select the type of parity check. VideoJet 1000...
  • Page 45 Configuration with web browser Monitor settings Video monitor name: Enter here the required monitor name. Video output standard: For devices which also function as a receiver, select the video stan- dard for monitor output (PAL or NTSC). Relay settings VideoJet 1000...
  • Page 46 Connection: Triggering if any connection is established Video Alarm: Triggering caused by loss of the video signal Input 1: Triggering caused by an external alarm sensor Remote input: Triggering by a switching contact from a remote location Motion: Triggering by the motion alarm VideoJet 1000...
  • Page 47 Select here the option On in order to activate the alarming by means of an external alarm sensor. Otherwise select Off. Input active state: Here can be specified whether the alarm is to be activated by a High or Low voltage level. VideoJet 1000...
  • Page 48 6 MBit/s transmission rate with highest picture quality MPEG2 3MBit and audio 3 MBit/s transmission rate with associated audio transmission MPEG2 6MBit and audio 6 MBit/s transmission rate with associated audio transmission Select the desired option from the list. VideoJet 1000...
  • Page 49 ADSL connections MPEG4 ISDN 2B 128kBit/s for ISDN connections over two B channels MPEG4 ISDN 1B 64kBit/s for ISDN connections over one B channel MPEG4 Modem 33.6kBit/s for analog modem connections Select the desired option from the list. VideoJet 1000...
  • Page 50 Configuration with web browser Alarm settings Options are provided to specify the behavior of the VideoJet 1000 in the event of an alarm. The VideoJet 1000, for example, can establish the connection to a predefined IP address (VideoJet 1000 receiver or PC with receiver software) automatically.
  • Page 51 System settings The transmitted data Unit name and Unit ID serve for the identifi- cation of the VideoJet 1000. Note The unit name is used to identify the device remotely, for example, in the event of an alarm.
  • Page 52 Enter here a name for the unit to facilitate identification in major installations. Unit ID: Each VideoJet 1000 should be assigned a unique identifier which can be additionally used to identify the unit. System date/time: If a number of VideoJet units are combined in a system, it is impor- tant that the internal clocks of the separate units are all synchro- nized.
  • Page 53 Warning! If the IP address is altered and the new configuration is transferred to the VideoJet 1000, then the unit can only be accessed via the new address. Subnet mask: Enter here the corresponding subnet address if the unit is to com- municate via a subnet.
  • Page 54 With the settings Enable multicast streaming: On and Multicast group IP address: 0.0.0.0 the VideoJet 1000 operates in the multi- unicast mode (duplication of the data stream in the unit). VideoJet 1000...
  • Page 55 Enter here the port address for the MPEG-2 data stream. Multicast port MPEG-4: With simultaneous data streams in the MPEG-2 format and in the MPEG-4 format, the data streams must be assigned for different ports. Enter here the port address for the MPEG-4 data stream. VideoJet 1000...
  • Page 56 C:\Images\Logo.gif, for access to an Internet/Intranet file, for example, http://www.vcs.com/ images/logo.gif). Note that with Internet/Intranet access, the connection must be maintained in order to continually display the image. The image files are not stored in the VideoJet 1000. VideoJet 1000...
  • Page 57 Save alarm logfile to hard disk: Select this option to store alarm data in a text file on the local com- puter. These text files can be viewed in the usual Office programs (for example, MS Word or MS Excel), and printed out. VideoJet 1000...
  • Page 58 When you activate the option to store log files (e. g. Save alarm logfile to hard disk), these are placed on the Desktop as text files in the basic setup. In the Expert Mode, these settings can be changed (see page 82). VideoJet 1000...

  • Page 59: Expert Mode

    Configuration with web browser Expert Mode In the Expert Mode, all parameters of the VideoJet 1000 can be configured. If any of the configuration pages are called up, the current settings will be displayed. The settings can be altered by entering new values or by selecting from a predefined value in a list field.
  • Page 60 Enter here a name for the unit to facilitate identification in major installations. Unit ID: Each VideoJet 1000 should be assigned a unique identifier which can be additionally used to identify the unit. Time settings If a number of VideoJet units are combined in a system, it is impor- tant that the internal clocks of the separate units are all synchro- nized.
  • Page 61 Enter here an unambiguous and clear name Encoder MPEG-2/4 The data transmission parameters can be configured to suit the local operating environment (e.g. network architecture, bandwidth, data structures). VideoJet 1000...
  • Page 62 MPEG4 ADSL 768kBit/s for ADSL connections MPEG4 ISDN 2B 128kBit/s for ISDN connections over two B channels MPEG4 ISDN 1B 64kBit/s for ISDN connections over one B channel MPEG4 Modem 33.6kBit/s for analog modem connections VideoJet 1000...
  • Page 63 Select her the option On, to terminate the video input if the video signal is not to be looped through (e.g. with a T-plug). Alarm sources The possible alarm activators of the VideoJet 1000 (alarm input and video signal monitoring) can be configured. VideoJet 1000...
  • Page 64 Alarm connections Options are provided to specify the behavior of the VideoJet 1000 in the event of an alarm. The VideoJet 1000, for example, can establish the connection to a predefined IP address (VideoJet 1000 receiver or PC with receiver software) automatically.
  • Page 65 Motion detector The VideoJet 1000 contains an integrated video sensor, which on the basis of the video processing can register changes in the video signal. These changes are primarily initiated by movement in the field of view of the camera.
  • Page 66 Each of these cells can be activated or deactivated. If it is necessary to exclude particular regions of the camera field of view from the monitoring process because of, say, continuous move- ment (e.g. due tree movement in a wind), the relevant cells can be deactivated. VideoJet 1000...
  • Page 67 In this way, it is possible to prevent generating a false alarm, e.g. by a bird flying across the surveillance area. Select the desired value by moving the slider to the desired position with the mouse key held down. VideoJet 1000...
  • Page 68 You can acti- vate the motion detection and select the direction of movement required to generate an alarm. Select here the option On, in order to activate the motion tracking feature of the video sensor. VideoJet 1000...
  • Page 69 Various events can be selected to automatically activate the output. In this way, for example, it is possible to switch on a floodlight when VideoJet 1000...
  • Page 70 The relay can be assigned a name from here. The name will be shown on the Overview page and, dependent upon configuration, also on the Live page. Trigger relay: Click on the button Relay to manually switch the relay (e.g. for test purposes or to operate a door opener). VideoJet 1000...
  • Page 71 Baud rate: Select the value for the Transmission rate in bits/s. Data bits: Select the number of data bits per character. Stop bits: Select the number of stop bits per character. VideoJet 1000...
  • Page 72 If the port is required to transmit trans- parent data, select the entry Transparent. Baud rate: Select the value for the Transmission rate in bits/s. Data bits: Select the number of data bits per character. VideoJet 1000...
  • Page 73 Warning! If the IP address is altered and the new configuration is transferred to the VideoJet 1000, then the unit can only be accessed via the new address. Subnet mask: Enter here the corresponding subnet address if the unit is to com- municate via a subnet.
  • Page 74 Enable multicast streaming: Along with a 1:1 connection between a transmitter and a receiver, (unicast) the VideoJet 1000 provides the option of connecting a number of receivers to simultaneously receive the video signal. This is achieved either by a duplication of the data stream in the unit...
  • Page 75 With the settings Enable multicast streaming: On and Multicast group IP address: 0.0.0.0 the VideoJet 1000 operates in the multi- unicast mode (duplication of the data stream in the unit). With the settings Enable multicast streaming: On and a valid multicast group IP address, the unit operates in the multicast mode (duplication of the data stream over the network).
  • Page 76 Keep a record of these numbers in case technical assistance is required. Hardwareversion: The hardware version number of the VideoJet 1000 is shown. Softwareversion: The software version number of the VideoJet 1000 is shown.
  • Page 77 Note that with Internet/Intranet access, the connection must be maintained in order to continually display the image. The image files are not stored in the VideoJet 1000. If it is required to recall the original image, simply delete the entries in the fields Startpage background URL and Startpage logo URL.
  • Page 78 Path for saving general messages: Enter here the path to the location where the log files for the general system messages are to be stored. If necessary, click on the button Search in order to find a suitable folder. VideoJet 1000...
  • Page 79 Software update Software upload: The VideoJet 1000 is designed in such a way that its functions and parameters can be updated with firmware. In such cases, transmit the updated firmware package via the selected network to the device. On termination of the connection, the firmware will be auto- matically installed.

  • Page 80: Function Test

    The VideoJet 1000 provides a multiplicity of configuration possibili- ties. Check, therefore, for correct operation of the unit after installa- tion and configuration. Only in this way is it possible to ensure that the VideoJet 1000 will operate correctly in an alarm situation. Check under the following headings:...

  • Page 81: Chapter 6 Operation

    Operation Operation with MS Internet Explorer The reception of live video images sent from the VideoJet 1000 is possible on a computer with installed Microsoft Internet Explorer (Version 5 or higher). Note In order to decode live video images, the required special ActiveX control must be installed on the computer.
  • Page 82 If the CD does not start automatically, open the CD folder in Windows Explorer and double click on Setup.exe. Follow the onscreen instructions. Establishing To use the VideoJet 1000 on a network, it must be provided with an the connection IP address. The following address is factory installed: 192.168.0.1...
  • Page 83 Depending upon configuration, other information may also appear in the display (see page 84). The VideoJet 1000 provides either a live image (MPEG format) or single video frames in JPEG format. Click on the navigation bar at the top of the screen on one of the links MPEG-2, MPEG-4 or M-JPEG, in order to display or decode the video sequences in the corresponding image format.
  • Page 84 Operation If a controlled unit is connected to the VideoJet 1000 and confi- gured, the active elements for the control of the peripheral unit (e.g. a dome camera) will be displayed alongside the video image. VideoJet 1000...

  • Page 85: Storing Snapshots

    Without this additional parameter, the image size will be 352 × 288 pixels. In the field for the Internet address (URL), enter the IP address of the VideoJet 1000, followed by the command /snap.jpg (for example: http://192.168.0.12/snap.jpg). Press the return key on the computer. A single frame image will be displayed in a new window.

  • Page 86: Hardware Connections Between Videojet Units

    Operation Hardware connections between VideoJet Units A VideoJet 1000 with connected camera as a transmitter and a VideoJet 1000 with connected monitor as a receiver can be linked simply together over an Ethernet network. It is thus possible to link large distances with little installation or cabling effort.

  • Page 87: Operation With Software-Decoder

    It runs under the Windows operating system. It primarily provides decoding of video, audio and control data received from a remote transmitter. During operation of a VideoJet 1000 with VIDOS, a multiplicity of operating and configuration options are offered. For details, see the documentation provided with the software.
  • Page 88 Operation VideoJet 1000...

  • Page 89: Chapter 7 Maintenance And Upgrades

    Maintenance and Upgrades Firmware-Upload via FTP The VideoJet 1000 is designed in such a way that its functions and parameters can be updated with firmware. In such cases, transmit the updated firmware package via the network to the device. On termination of the connection, the firmware will be automatically installed.

  • Page 90: Network Check

    The network connection to the unit is not OK. In this case, check out the cable connections. The unit is not correctly integrated into the network. Check the IP address, subnet mask and, if necessary, the gateway IP. VideoJet 1000...

  • Page 91: Repair

    Maintenance and Upgrades Repair Warning! Never open the housing of the VideoJet 1000. The unit has no user serviceable parts, which can be repaired or exchanged. Ensure that only qualified, specialist personnel (electrical techni- cians) are permitted to carry out maintenance or repair work or con- tact the VCS Service centre.
  • Page 92 Maintenance and Upgrades VideoJet 1000...

  • Page 93: Chapter 8 Appendix

    Faults – possible causes and remedy If a fault can not be cleared, please contact the Customer Service from VCS (Support@vcs.com). The version numbers of the internal processors can be shown on a special page. Note this information before contacting the Customer Service.
  • Page 94 The unit is not ready Voltage failure while the Replace the device and have it for operation after firm- update file is being pro- checked by VCS. ware upload. grammed. VideoJet 1000...

  • Page 95: Leds

    Appendix LEDs The VideoJet 1000 video server is equipped with several LEDs which indicate the operating status and can give indications of pos- sible faults: VIDEO Lit green: A video signal is present at the input. Flashing slowly: No valid firmware installed.

  • Page 96: Glossary

    Hypertext Markup Language Multiplexer to connect a number of Ethernet units to a 10 BASE-T segment ICMP Internet Control Message Protocol Identification: machine readable number or name IEEE Institute of Electrical and Electronics Engineers IGMP Internet Group Management Protocol VideoJet 1000...
  • Page 97 It is usually expressed in dot- ted-decimal notation, e.g. 255.255.255.192 Network address A proposal for IP address reuse, where the local translator IP address is mapped to a globally unique address. Parameter Values used for the configuration of the network system VideoJet 1000...
  • Page 98 Uniform Resource Locator Unshielded Twisted Pair V.24, RS-232 A list of definitions for the transmission between DTE and DCE See Wide area network Wide area network A long distance link used to extend or connect remotely located local area networks VideoJet 1000...

  • Page 99: Specifications

    3.5 mm jack bush, stereo Data interface 1 × RS232/RS422/RS485, bidirectional, 9-pin sub-D, 1 × RS232, 9-pin sub-D Alarm inputs separable screw terminals 1 × control input, max. 40 V, 0.8 A Relay output separable screw terminals, 1 × relay VideoJet 1000...
  • Page 100 IEC 60950, UL 1950, J60950, AS/NZS 3260, EN 55103-1, EN 55103-2, EN 55130, EN 55024, EN 61000-2, EN 61000-3 Dimensions (w × h × d) 204.5 × 43.9 × 301.1 mm Weight approx. 2,000 g (w/o hard drive) VideoJet 1000...

  • Page 101: Index
